44

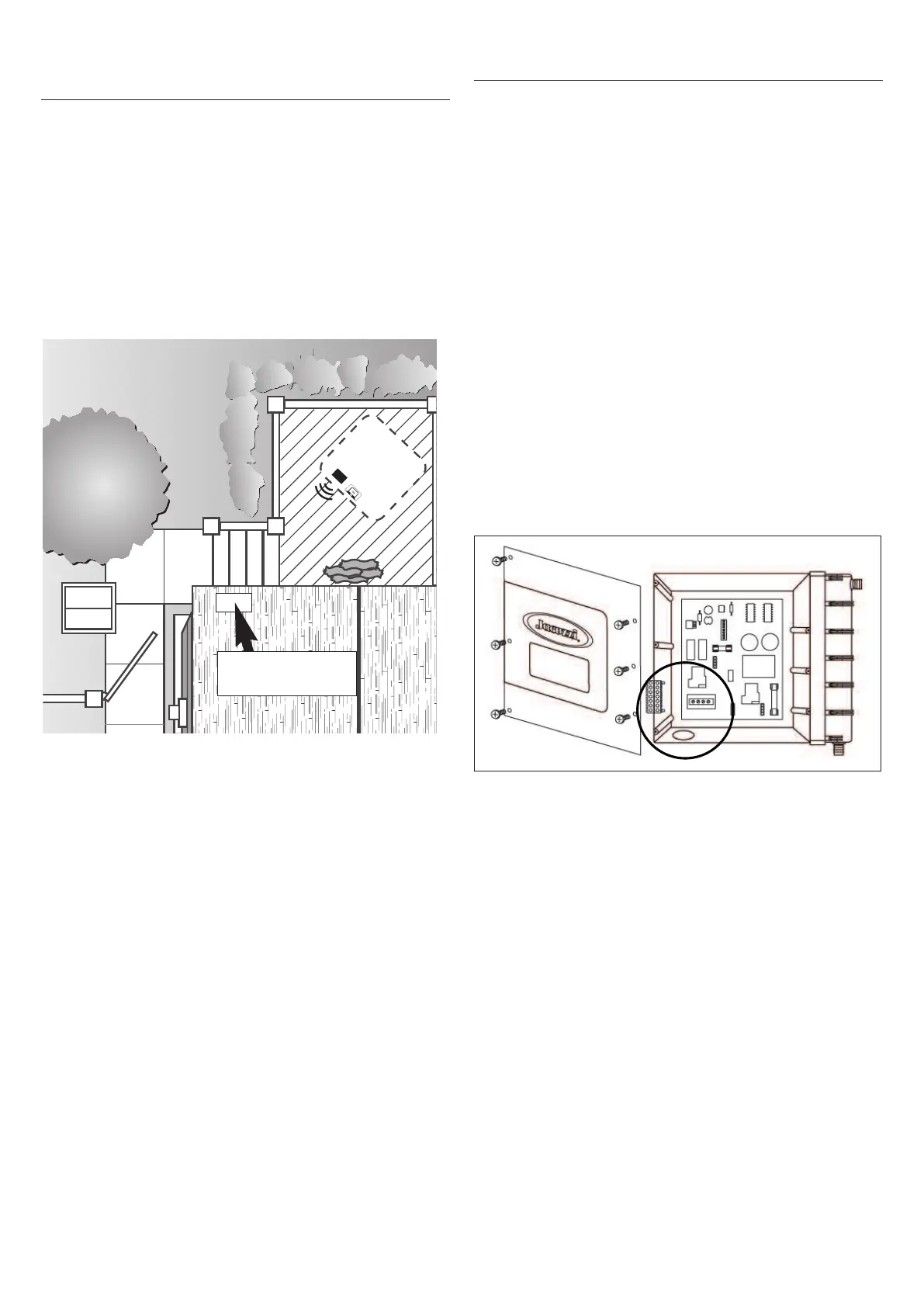

Location for the Optional ProLink™ Remote Mo-
nitoring System
IMPORTANT! Choose an installation site with the front control
panel side pointing towards your home’s Wi-Fi router.
CAUTION: You must make sure that the spa control panel side
has a clear unobstructed line-of-site of the home Wi-Fi router.
This action ensures maximum signal strength between the spa
and your home’s Wi-Fi router.
Verify your home router’s Wi-Fi strength at the proposed spa lo-
cation. Front control panel side of spa must point towards your
home’s Wi-Fi router in your home as illustrated.
Stand near the proposed front control panel side of the spa with
your cell phone, then login to the internet using your home Wi-Fi
router signal (not 3G or 4G) and verify results as follows:
If the home Wi-Fi router signal is strong (3-4 bars) and Internet
access is stable, the proposed installation site is a good choice.
If the home router’s Wi-Fi signal is weak and Internet access is
slow or produces an error, the proposed installation site is not a
good choice.
It may be necessary to choose another spa installation site.
Relocate your home Wi-Fi router closer to the spa.
Install a “repeater” device in the room closest to the spa to boo-
st the home’s router Wi-Fi signal at the proposed spa installa-
tion site.
Electrical connections
Please refer to the pre-installation instructions for information
regarding connections and current absorption for the dierent
models.
To gain access to the spa’s power terminal block, press the
release button securing the cabinet panel under the control
panel.
Refer to Section “Draining and Refilling”for instructions on how
to remove the cabinet panel(s). Then remove the six door
screws on the control box. Place the panel is a safe location to
prevent damage.
Select the power supply entrance you want to use. Make su-
re to install a 3/4" electrical fitting and conduit through the
large opening provided in the bottom of the control box so
you can feed the cable through to the terminal block.
- Connect the power supply line, making reference to the wiring dia-
gram and the chapters “Connecting the electrical power supply” and
“Electronic board connections-Setting the dip switches”.
Install control access box door and reinstall the cabinet pa-
nel(s).
I In the event that not enough electricity is available, it is still possi-
ble to activate an electronic consumption limiter, operating within the
electronic control box (please refer to the wiring diagrams included
in this manual).
Thisoperation canonlybe performed by authorisedJacuzzi® techni-
cians.
Home WiFi
Router
J
W
1
0
Home WI-FI
Router
