Amplifier/Subwoofer PSW-D112/DPS-12

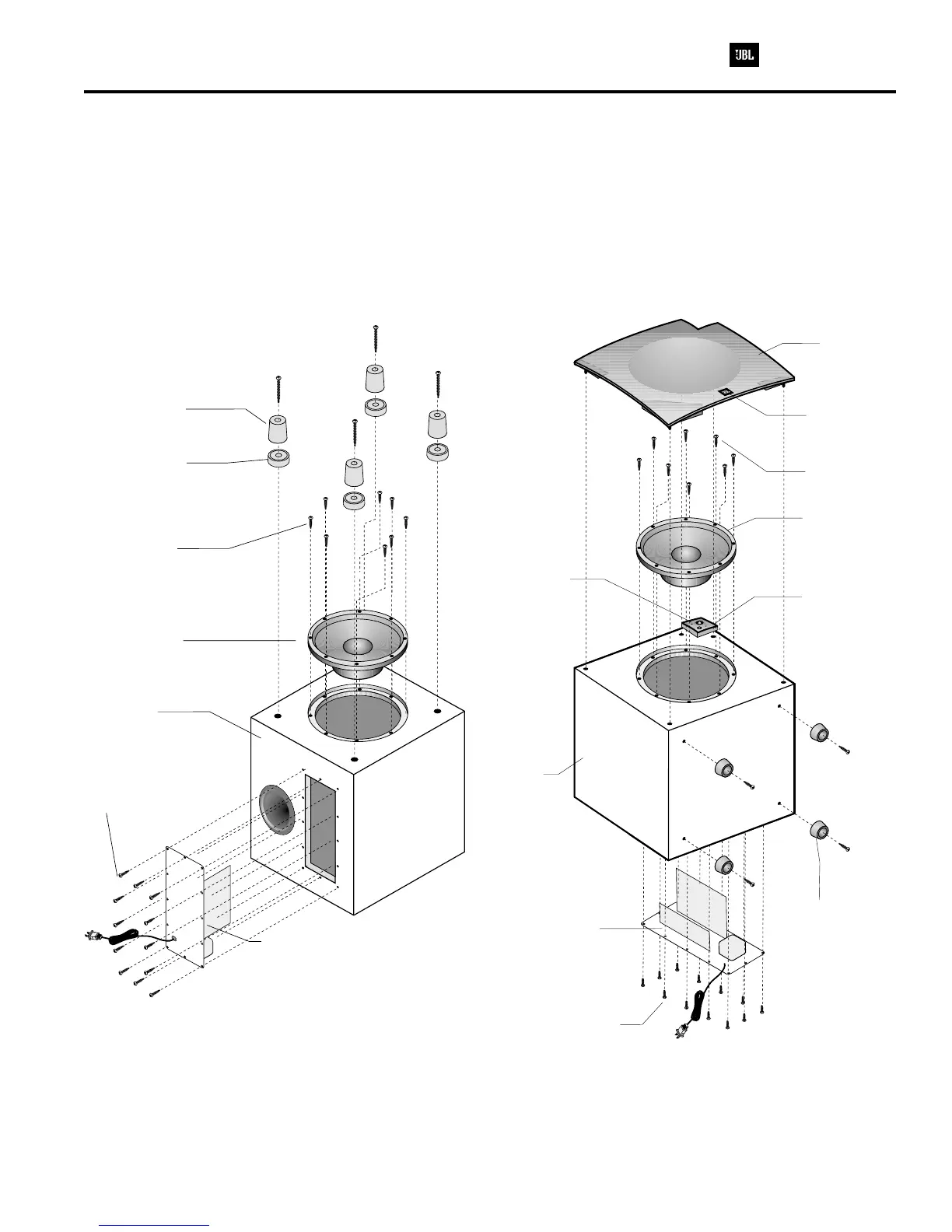

CABINET EXPLODED VIEWS
SCREWS (12)
SCREWS (8)
JBL Logo
#200512
FEET
#200582
CABINET
NOT FOR
SALE
12" WOOFER
#200700
AMPLIFIER
ASSEMBLY
SCREWS (12)
SCREWS (8)
FOOT PART 1
#200670
FOOT PART 2
#200870
CABINET
NOT FOR
SALE
12" WOOFER
#200700
AMPLIFIER
ASSEMBLY
DPS-12
CABINET ASSEMBLY
PSW-D112
CABINET ASSEMBLY
GRILLE
#200710
CONTROL
PANEL
#200760
VOLUME KNOB
#70313
VIDEO CONT.
BUTTON
#70314
VIDEO CONT.
SWITCH
#70152
