30
Amplifier/Subwoofer PSW-D112/DPS-12

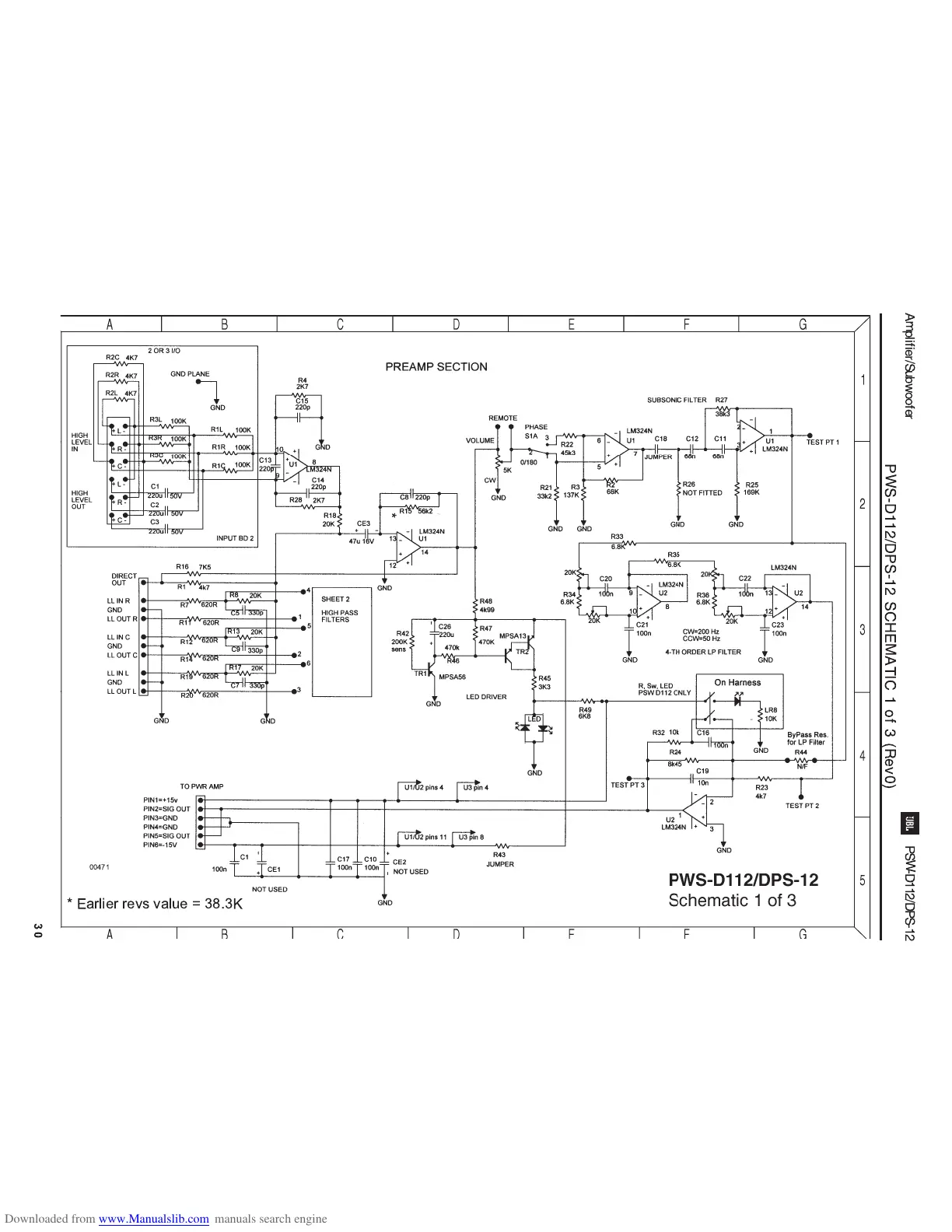

PWS-D112/DPS-12 SCHEMATIC 1 of 3 (Rev0)
*
* Earlier revs value = 38.3K
00471
