6 - INTRODUCTION
6.1 - VTX A8

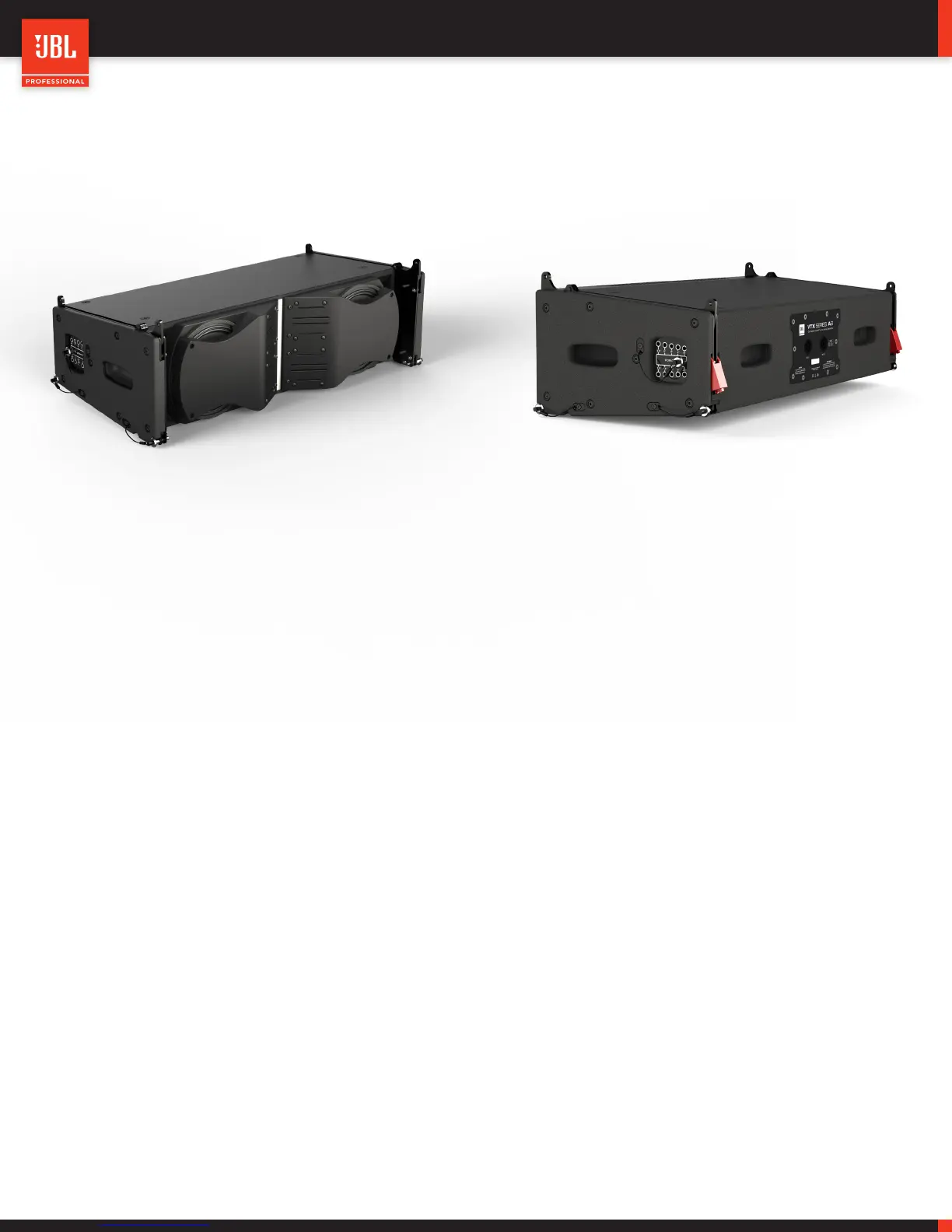

The VTX A8 is a next-generation line array element that delivers JBL Professional’s flagship VTX A Series technology in a compact solu-
tion for small to mid-size rental and installed applications. The VTX A8 was designed to solve the diverse sound reinforcement needs
of production companies, rental houses, theaters, houses of worship, as well as production applications requiring front fills, side arrays
or other auxiliary support for larger-scale VTX systems. Proprietary JBL woofers and our latest-generation high-frequency transducer
and waveguide technology, provides unmatched performance, efficiency, and a consistent 110-degrees of horizontal coverage. The
A8 combines two 8” woofers, four 3.5” midrange drivers and two 2” high-frequency drivers in a single low-profile cabinet. Proprietary
double-flared low-frequency ports, precisely calculated for greater low-frequency performance extend the usable operating range down
to 49Hz. The VTX A8 shares the VTX A Series’ patented rigging mechanism and suspension system for streamlined deployment, while
a comprehensive suite of accessories open up a world of configuration options.
INSIDE THE INNOVATIONS
For VTX A8, next-generation transducers were engineered from the
ground up by JBL to match the physical characteristics of its com-
pact enclosure. Custom-designed low and mid-frequency sections
along with flagship VTX A-Series 2” compression drivers deliver
higher output, lower distortion and greater low-frequency extension.
Physical design refinements integrate more drivers in a smaller, light-
er cabinet, for maximum output in a dramatically reduced footprint.
It all adds up to big-system JBL sound in a flexible, compact line
array system.
INNOVATIVE RIGGING
The VTX A8 rigging is identical to the A12, for quick, easy
deployment of integrated systems. Rigging features an au-
to-locking mechanism, which allows the selection of angles
while components are on the ground; once the system is sus-
pended, the mechanism automatically locks cabinet angles in
designated positions. Set angles simply by pulling and placing
a pin—it’s that easy.
ACCESSORIES
Multiple accessory options provide flexibility in the VTX A8’s
mounting, integration and installation capabilities. Highlights
include a Base Plate that mounts the A8 on top of ground-
stacked subwoofers such as the new B18. The truss clamp
and mini frame enable the A8 to be mounted on a truss, mak-
ing it ideal for trade shows or small productions.
3-WAY, 2-CHANNEL DESIGN
The VTX A8 features a 3-way design but utilizes a passive network
to drive both the MF and HF sections with a single amplifier channel.
Reducing system amplifier count translates to simpler configuration,
lighter total weight, less truck space and lower overall costs.
