About the Product
Product and Component Identification
10 9831/0650-3 10
Product and Component Identification
General
The data plate details the model designation, rating, fuel type, weight, year of manufacture, output rating and
other generating set specific information. The data plate is normally located on the right hand side of the
alternator terminal box (looking at the alternator end of the generator). The generator model designation can
be used to determine the version of generating set.

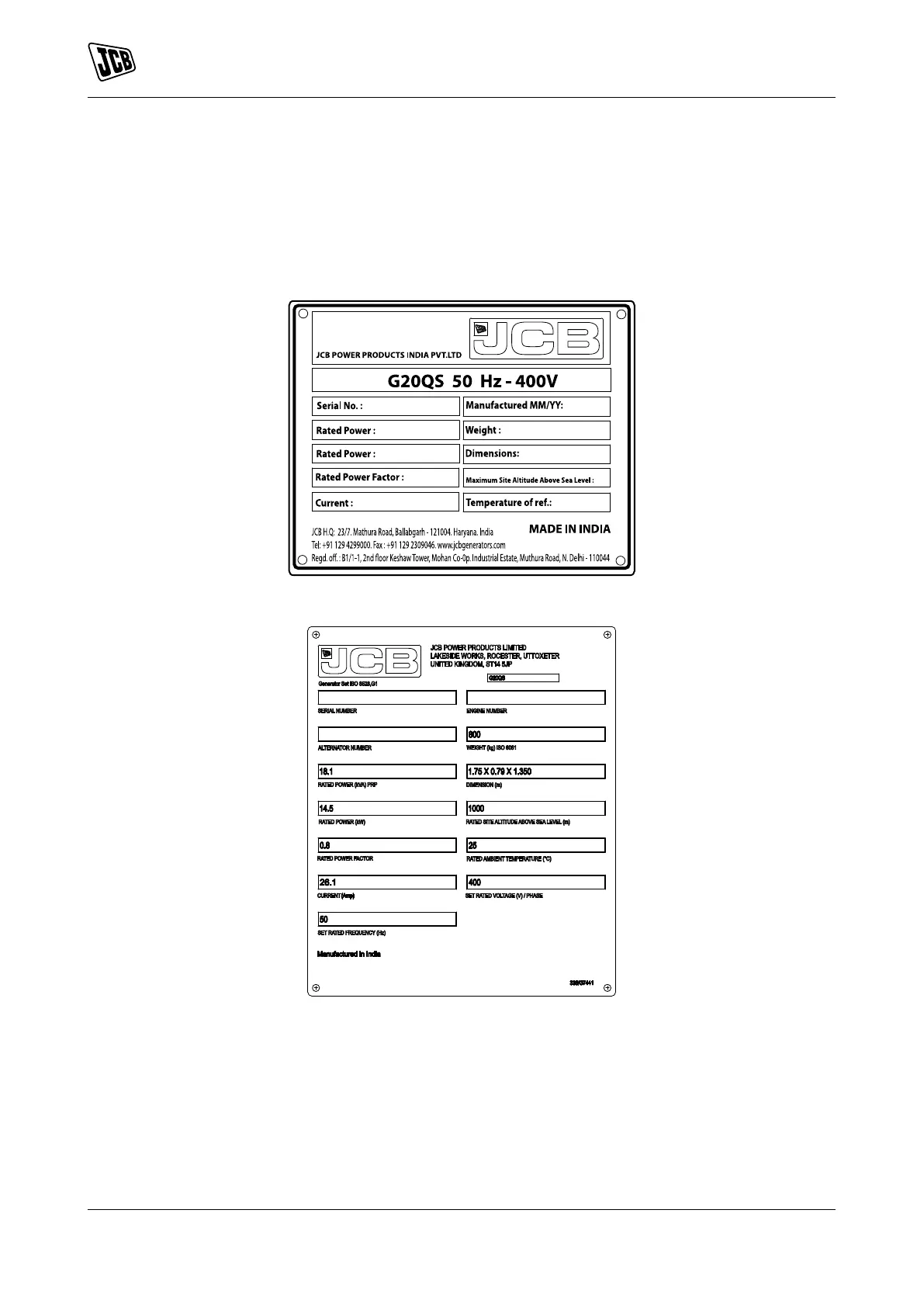

Figure 6. Example Identification Plate
Figure 7. Example Identification Plate
Engine
The engine data labels are attached to the cylinder block as shown. Refer to Figure 8.
The data label includes the engine identification number.
