Operation
Instruments
45 9831/0650-3 45

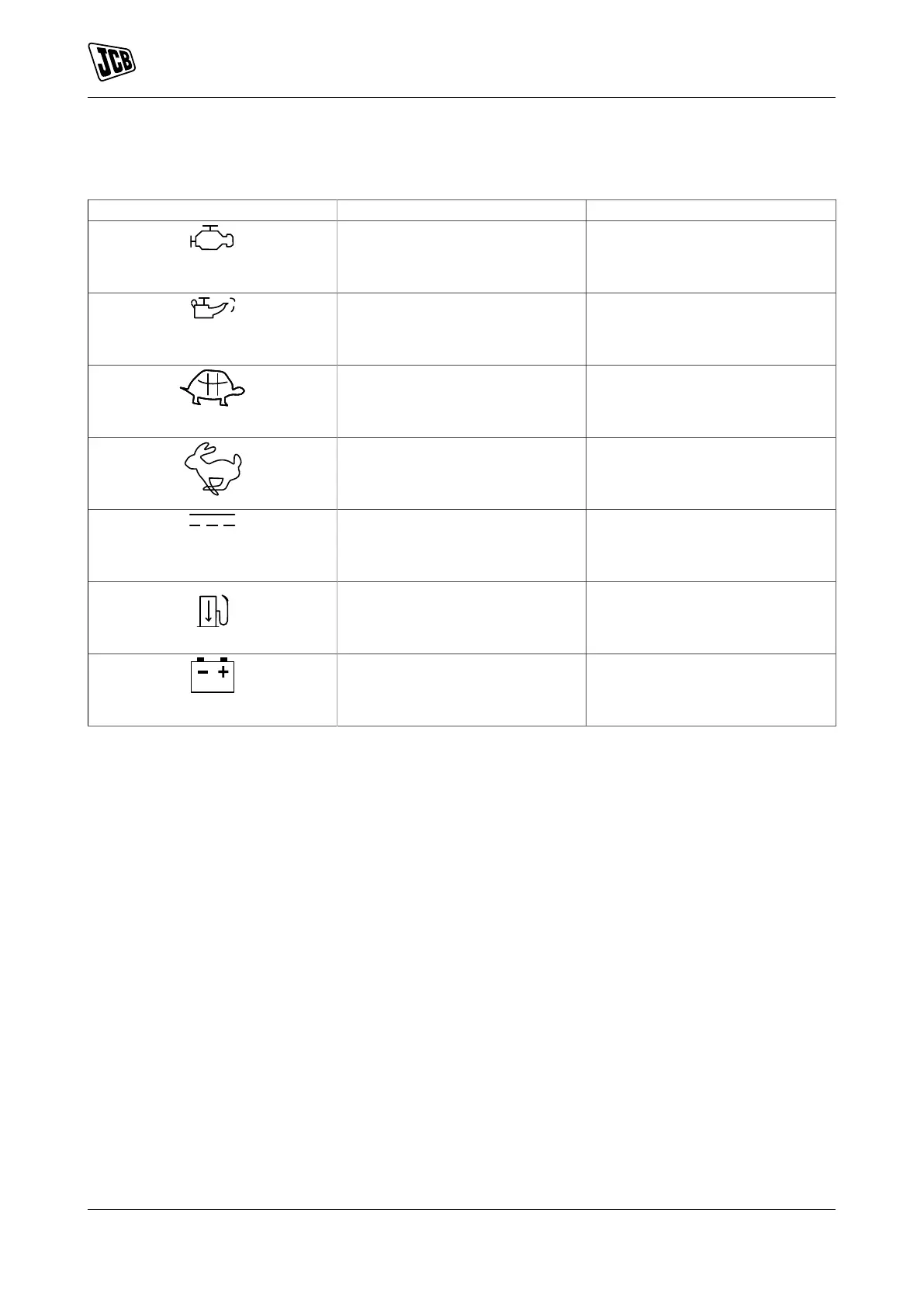

Table 13.
icon Fault DTC Description
Check Engine Fault The engine ECU has detected a
fault not recognised by the DSE
module, contact engine manufac-
turer for support.
Low Oil Pressure The engine ECU has detected that
the engine oil pressure has fallen
below its configured low oil pres-
sure alarm level.
Under Speed The engine ECU has detected that
the engine speed has fallen below
its configured under speed alarm
level.
Over Speed The engine ECU has detected that
the engine speed has risen above
its configured over speed alarm
level.
Charge Failure The engine ECU has detected that
the engine's charge alternator out-
put has fallen below its configured
alarm level.
Low Fuel Level The engine ECU has detected that
the engine's fuel level has fallen
below its configured low fuel level
alarm.
Battery Under/Over Voltage The engine ECU has detected that
the engine's DC supply has fallen
below or risen above its configured
alarm level.
Event Log
This module's event log contains a list of the last 15 record electrical trip or shutdown events and the engine
hours at which they occurred. Once the log is full, any subsequent electrical trip or shutdown alarms overwrites
the oldest entry in the log. Hence, the log always contains the most recent shutdown alarms. The module logs
the alarm, along with the engine running hours.
Viewing The Event Log
To view the event log, press both UP and DOWN buttons simultaneously, the navigation menu is then displayed.
Once entered, cycle to the event log section and enter.
To view the event log, repeatedly press the UP or DOWN buttons until the LCD screen displays the desired
event.
Continuing to press down the UP or DOWN buttons will cycle through the past alarms after which the display
shows the most recent alarm and the cycle begins again.
To exit the event log, press the UP and DOWN buttons simultaneously to enter the navigation menu. Once
entered, cycle to the desired instrumentation section.
