8 - 1
Changing the Air Filter Elements
1 Prepare the Machine
Put the machine on level ground. Lower the bucket to
the ground.
2 Stop the Engine
Remove the starter key.
Note: Renew the inner element every second time you
renew the outer element. As a reminder, mark the inner
element with a felt tip pen when you renew only the outer
element.
Outer element must be changed sooner if the filter warning
light on the instrument panel lights up.
DO NOT run engine with end cover or dust valve removed.
DO NOT attempt to wash or clean elements they must be
removed.
3 Locate the Air Filter
(See Component Location Diagram).
4 Open the Hydraulic Compartment
5 Remove the Elements

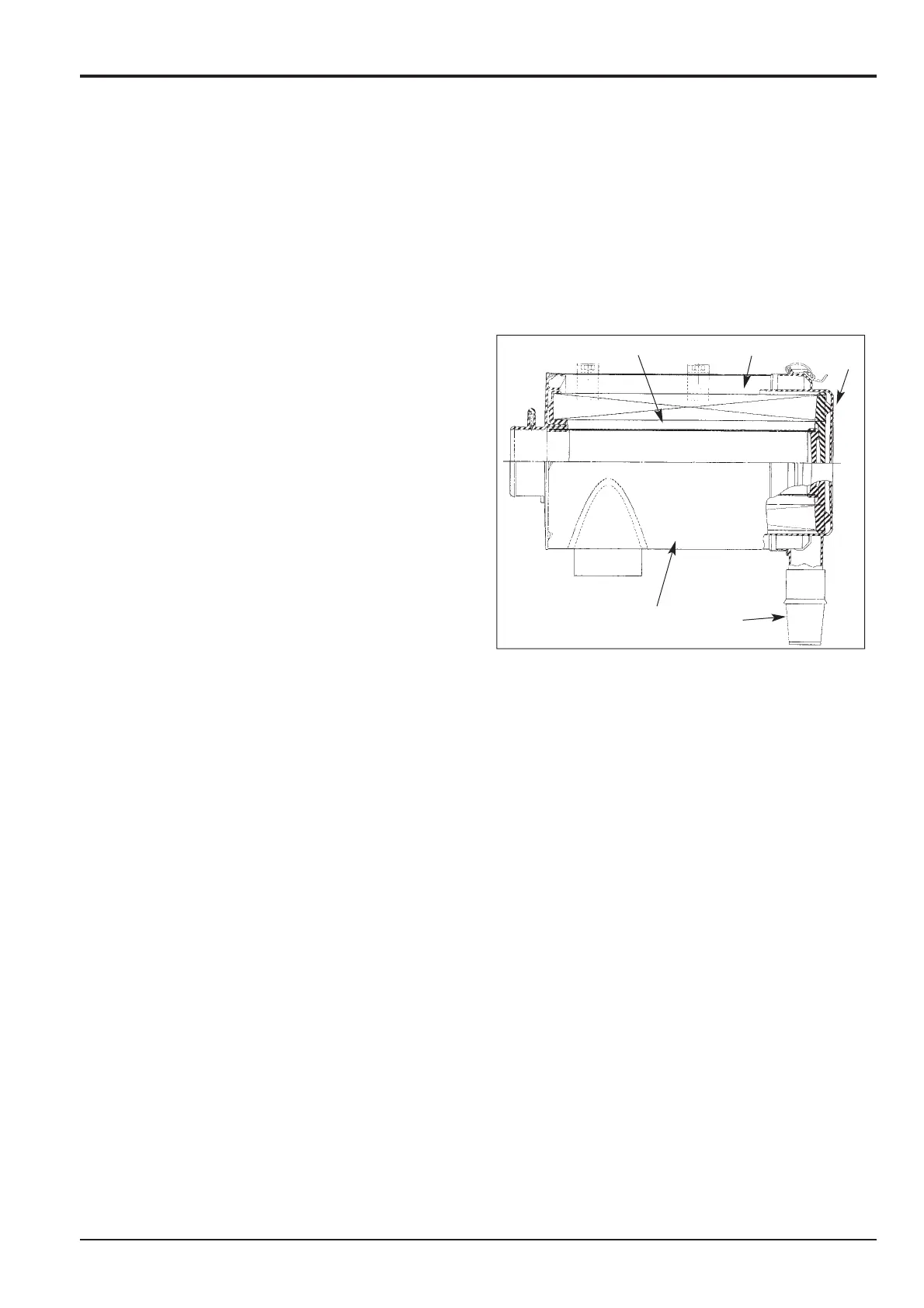

Remove end cover A. Remove the outer element B.
Remove the inner element C.
6 Clean the Filter
Clean the pre-cleaner, the inside of the canister D, the
end cover A, and dust valve E.
7 Fit the New Elements
Carefully insert the new inner element into the canister.
Make sure it seats correctly. Carefully insert the new
outer element B. Make sure it seats correctly.
8 Assemble the Filter
Fit the end cover A onto the canister. Make sure the
dust valve E is fitted, then fasten the retaining clips. Fit
the pre-cleaner. Make sure the air filter blocked switch
connector is fitted.
Section 3 Routine Maintenance
9803/6410
Section 3
8 - 1
Issue 1
Engine
D
C
B
A
E
