jcb JS210 Service Manual

22
21
19
12
20
13
14
15
16
17
18
10B
10A
10
21
19
12
20
13
14
15
16
17
18
21
19
12
20
13
14
15
16
17
26
9
8
7
6
10B
10A
10
22
22
24B*
24A*
24
9
8
23
6
9
8
7
6
2
1
31
7
7
7
31
7
31
4
S2
S1
S3
S4
S6
S5
S7
S8
JS03690
5
50 - 1
Section E
Hydraulics
9803/6400
Section E
50 - 1
Issue 2*

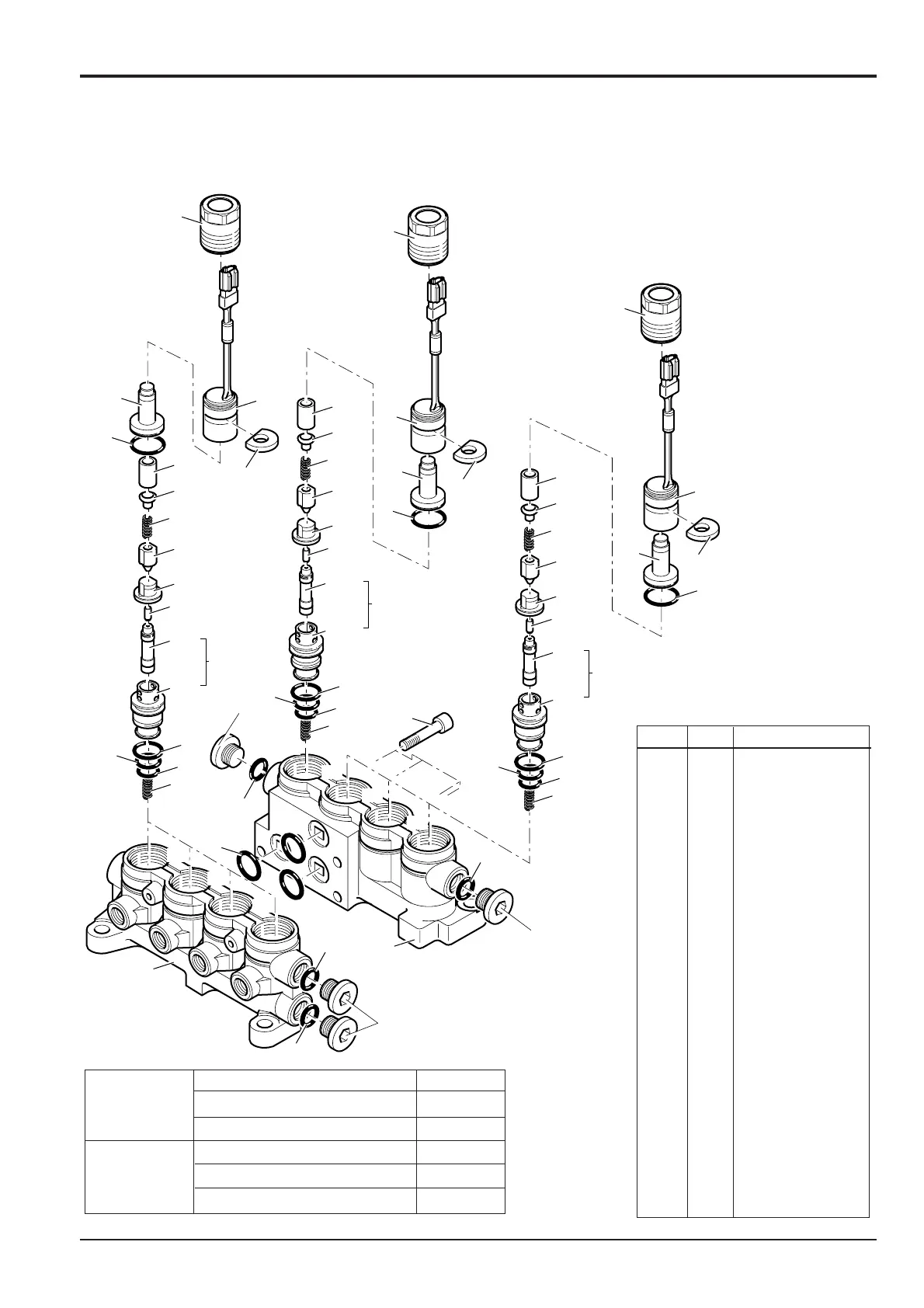

Solenoid Valve (8-spool) JS200/JS240
10A Body inner diameter ø10mm
S1~S7 10B Spool outer diameter ø10mm
18 Rod total length 8.6mm
24A Body inner diameter ø12mm
S8 24B Spool outer diameter ø12mm
26 Rod total length 9.0mm
No. Qty Parts Name
1 1 Housing
2 1 Housing
3 1 Plug
4 3 O-ring
5 4 Socket head bolt
6 8 Spring
7 11 O-ring
8 8 O-ring
9 8 O-ring
10A❊ 7 Body
10B❊ 7 Spool
12 8 O-ring
13 8 Pipe
14 8 Spring seat
15 8 Spring
16 8 Plunger
17 8 Stopper
18❊ 7 Rod
19 8 Inner housing
20 8 Spacing
21 8 Coil assembly
22 8 Cap
23 1 O-ring
24A❊ 1 Body
24B❊ 1 Spool
26❊ 1 Rod
31 4 Plug
