4 - 2
Attachments (continued)

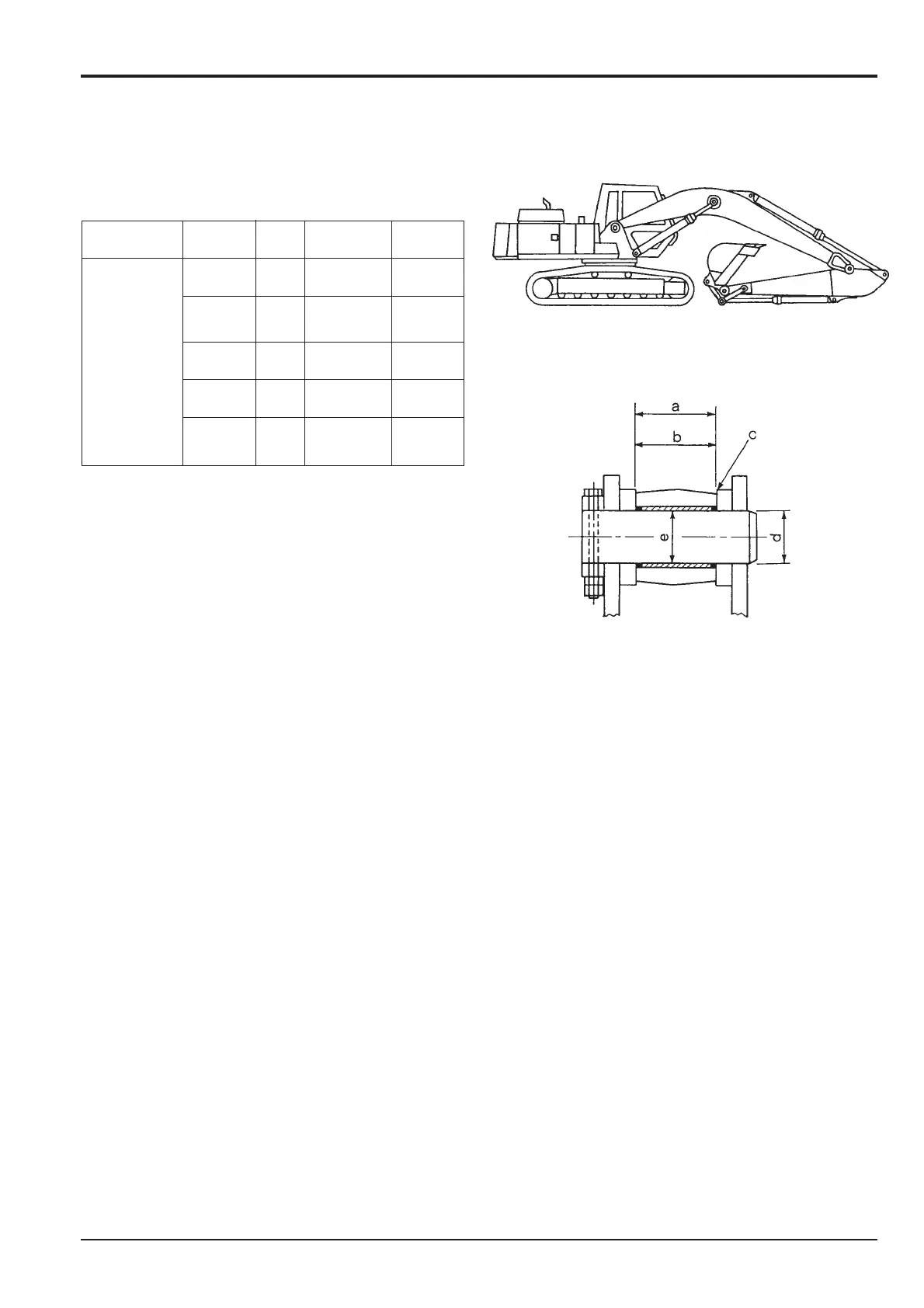

Dipper Ram Installation JS200, JS200LC
Section B
Body & Framework
9803/6400
Section B
4 - 2
Issue 2*
Maintenance Specifications
*
Equipment Part
Code
Standard
Service
Name
Name
Value (mm)
Limit (mm)
4.
Dipper ram
Boom
a
121
127
installation
Dipper ram
b
120
118
(dump end)
Clearance
c
0.5-3.0
Pin
d
ø80
ø79
Bushing
e
ø80
ø81.5
(Dipper ram)
Shim for
adjustment
KRV1197
74
76
