jcb JS210 Service Manual

6 - 1

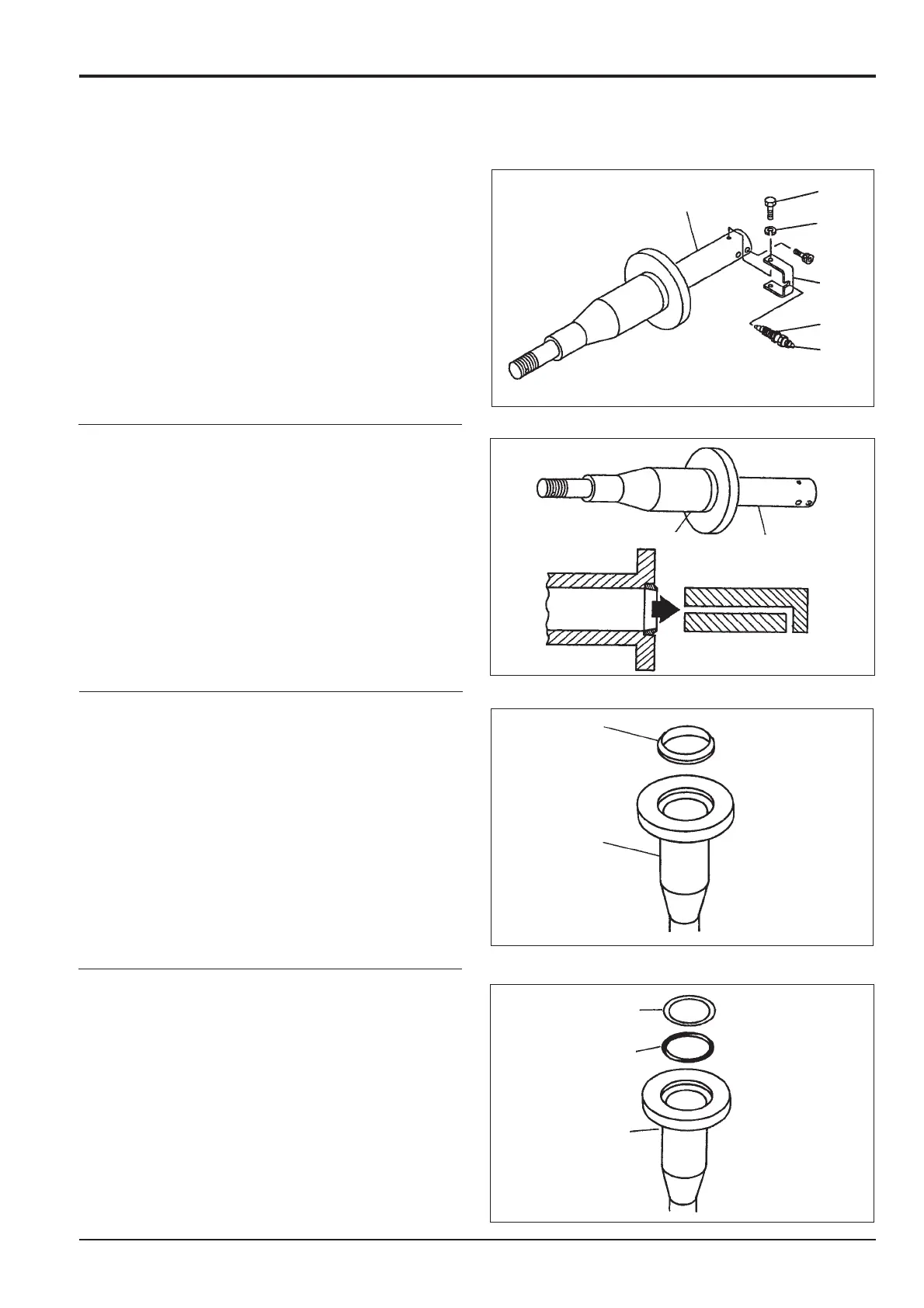

Dismantling
1. Clean the grease cylinder A with an appropriate
detergent.
Remove bolt B and washer C, remove the bracket D.
Remove the check valve E, together with the grease
nipple F from the cylinder A.
2. Pull out the Piston Rod G from the grease cylinder A.
3. Remove the Dust Seal H from the grease cylinder A.
4. Remove the Back-up ring I and 'O'-ring J from the
grease cylinder.
Section J
Track and Running Gear
9803/6400
Section J
6 - 1
Issue 1
Grease Cylinder (continued)
B
C
D
E
F
A
G
A
H
A
I
J
A
