JR PCM9X II Instruction Manual

9 General Section

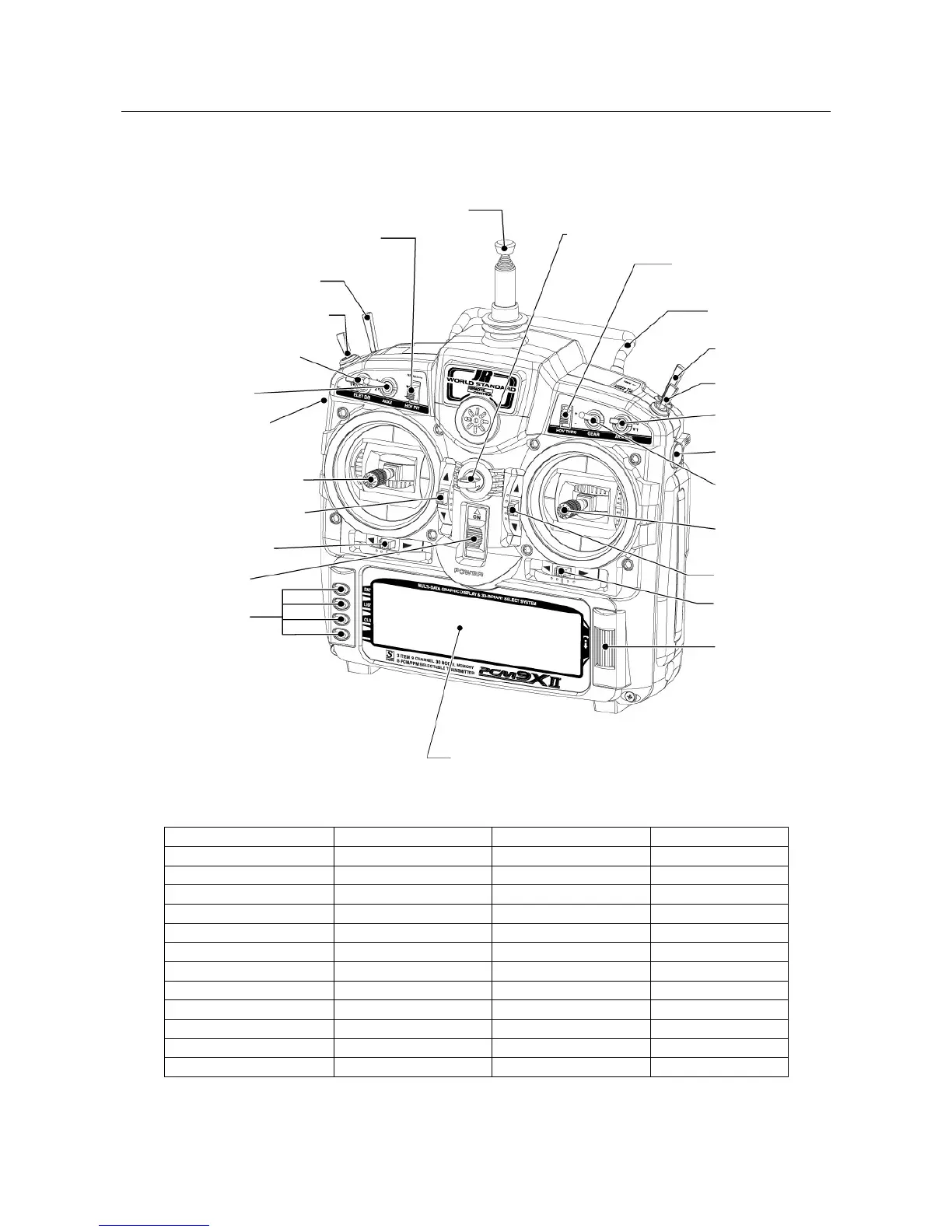

PCM9X II Transmitter Features (Front)
Switch Labels Airplane Menus Sailplane Menus Heli Menus
RUDD D/R / AUX4 RUD D/R RUD D/R RUD D/R
T.HOLD / MIX MIX SW BTFL SW HOLD SW
ELEV D/R ELE D/R ELE D/R ELE D/R
FLAP / AUX2 FLAP SW AUX4 SW AUX2 SW
GEAR GEAR SW MOTO S/W GEAR SW
AILE D/R AIL D/R AIL D/R AIL D/R
F.MODE / AUX4 / AUX2 AUX2 SW FMOD SW FMOD SW
(Spoiler Stick) SPOI ST
TRN / SN ROLL SNAP SW TIME SW
(Menu Button) TIM KEY
(Left Side Lever) FLAP LV FLAP LV Pit.T LEV
(Right Side Lever) AUX3 LV AUX3 LV AUX3 LEV
Switch Naming in the Menus
Flap Trim/Hover Pitch Trim
Throttle Hold/Mix Switch
Rudder D/R / AUX4 Switch
Elevator D/R
A
ileron D/R
Flap/AUX2 Switch
Flap Lever/
Pitch Trim Lever
Antenna
Neckstrap Attachment
Aux Trim/
Hover Throttle Trim
Handle
Trainer/Timer/
Snap Roll Switch
Flight Mode/
AUX4/AUX2 Switch
AUX3 Lever
Gear Switch
Aileron/Throttle Stick
Aileron Trim
Throttle Trim
Rolling Selector
LCD Display
Rudder/Elevator Stick
Elevator Trim
Rudder Trim
Power Switch
Menu Buttons
Transmitter shown with stick mode 1 selected
