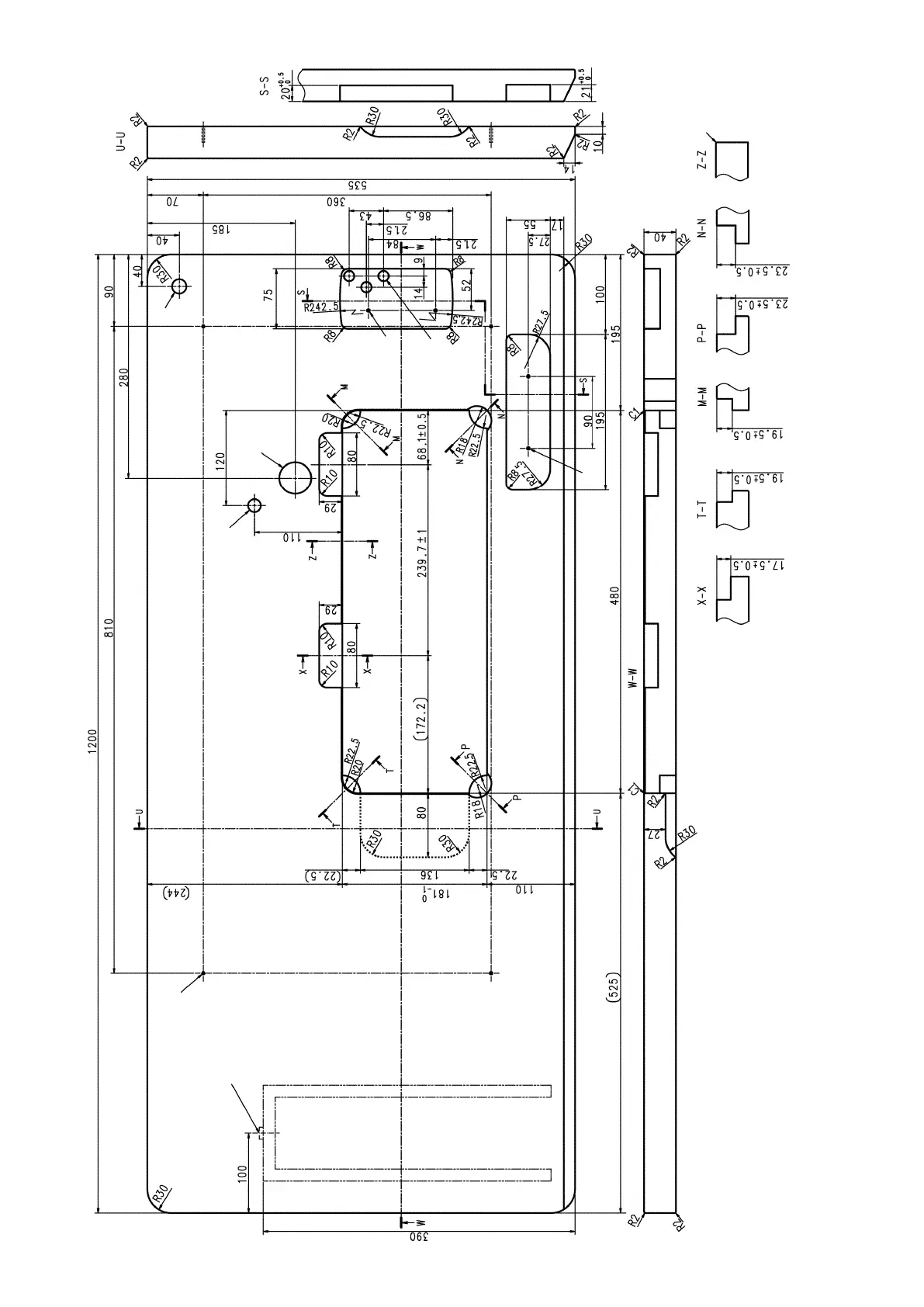

– 2 –
DRA
WING OF T
ABLE
A
B
C
D
E
F
H
G
I
A
4xø3.4 on the bottom surface, depth 20 (Drill a hole at the time of set-up.)
B
Installing position of drawer stopper (on the reverse side)
C
ø18 drilled hole
D
3xø13 drilled hole
E
2xø3.5, depth 10
F
2xø3.5, depth 10
G
ø40±0.5
drilled hole
H
ø16 depth 30
I
C1.5 to C2.5 (hinge side only)
3
5
Table of Contents
Default Chapter
2
Table of Contents
2
Specifications
3
Set-Up
5
Installation
5
Installing the Pedal Sensor
6
Connecting the Connector
6
How to Install the Power Plug
7
Attaching the Connecting Rod
7
Winding the Bobbin Thread
8
Adjusting the Height of the Knee Lifter
9
Installing the Thread Stand
9
Lubrication
10
Adjusting the Amount of Oil (Oil Splashes)
10
Adjusting Amount of Oil
10
Attaching the Needle
12
Setting the Bobbin into the Bobbin Case
13
Adjusting the Stitch Length
13
Presser Foot Pressure
13
Hand Lifter
13
Adjusting the Height of the Presser Bar
14
Threading the Machine Head
14
Thread Tension
15
Thread Take-Up Spring
15
Adjusting the Thread Take-Up Stroke
15
Needle-To-Hook Relationship
16
Height of the Feed Dog
16
Tilt of the Feed Dog
17
Adjusting the Feed Timing
17
Counter Knife
18
Pedal Pressure and Pedal Stroke
18
Adjustment of the Pedal
19
Marker Dots on the Handwheel
19
For the Operator
20
Operating Procedure of the Sewing Machine
20
Setting Procedure of the Machine Head
21
Operation Panel Built in the Machine Head
22
Operating Procedure of the Sewing Pattern
23
One-Touch Setting
25
Setting of Functions
26
Production Support Function
27
Function Setting List
29
Detailed Explanation of Selection of Functions
33
Automatic Compensation of Neutral Point of the Pedal Sensor
43
Selection of the Pedal Specifications
44
Setting of the Auto Lifter Function
44
Selecting Procedure of the Key-Lock Function
45
Initialization of the Setting Data
45
LED Hand Light
46
Height Adjustable One-Touch Type Reverse Stitching Switch
46
Maintenance
47
Adjusting the Machine Head
47
Error Codes
48
Error Code List
49
