⑧ No.08 Sensor check

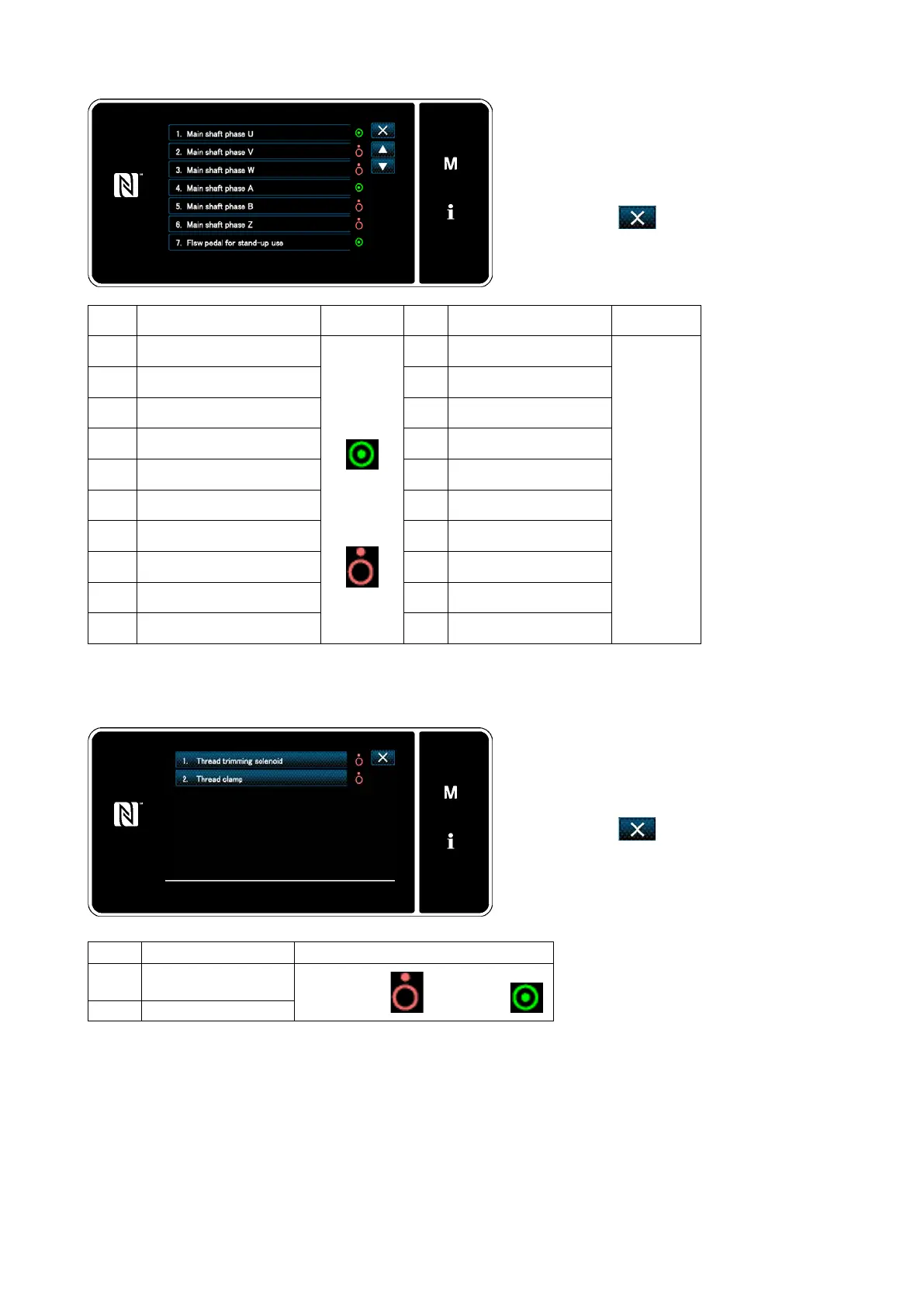

Press the sensor check key on the check
program selection screen to display the
sensor check screen.
It is possible to check a sensor that checks
a program on the sensor check screen.
By pressing , the current screen
returns to the check program selection
screen.
⑧No.09 Output check
Press the output check key on the check
program selection screen to display the
output check screen.
By pressing ❶, the current screen
returns to the check program selection
screen.
⑨ No.10 Compensation of neutral point of the pedal sensor
No. Name of sensor Status No. Name of sensor Status
01 Main Shaft phase U
The sensor
is ON
The sensor
is OFF
11 Presser lifter encoder
Numerical
value
02 Main Shaft phase V 12 Pitch motor encoder
03 Main Shaft phase W 13 Vertical feed encoder
04 Main Shaft phase A 14 Principal axis angle
05 Main Shaft phase B 15 Presser lifter sensor
06 Main Shaft phase Z 16 Temperature sensor 1
07 FLSW 17 Temperature sensor 2
08 HSSW 18 24V power supply
09 LSSW 19 85V power supply
10 TSW 20 Power supply
⑨ No.09 Output check
No. Output name Status
01
Thread trimming
solenoid
Output OFF Output ON
02
Thread presser
– 94 –
