Control panel

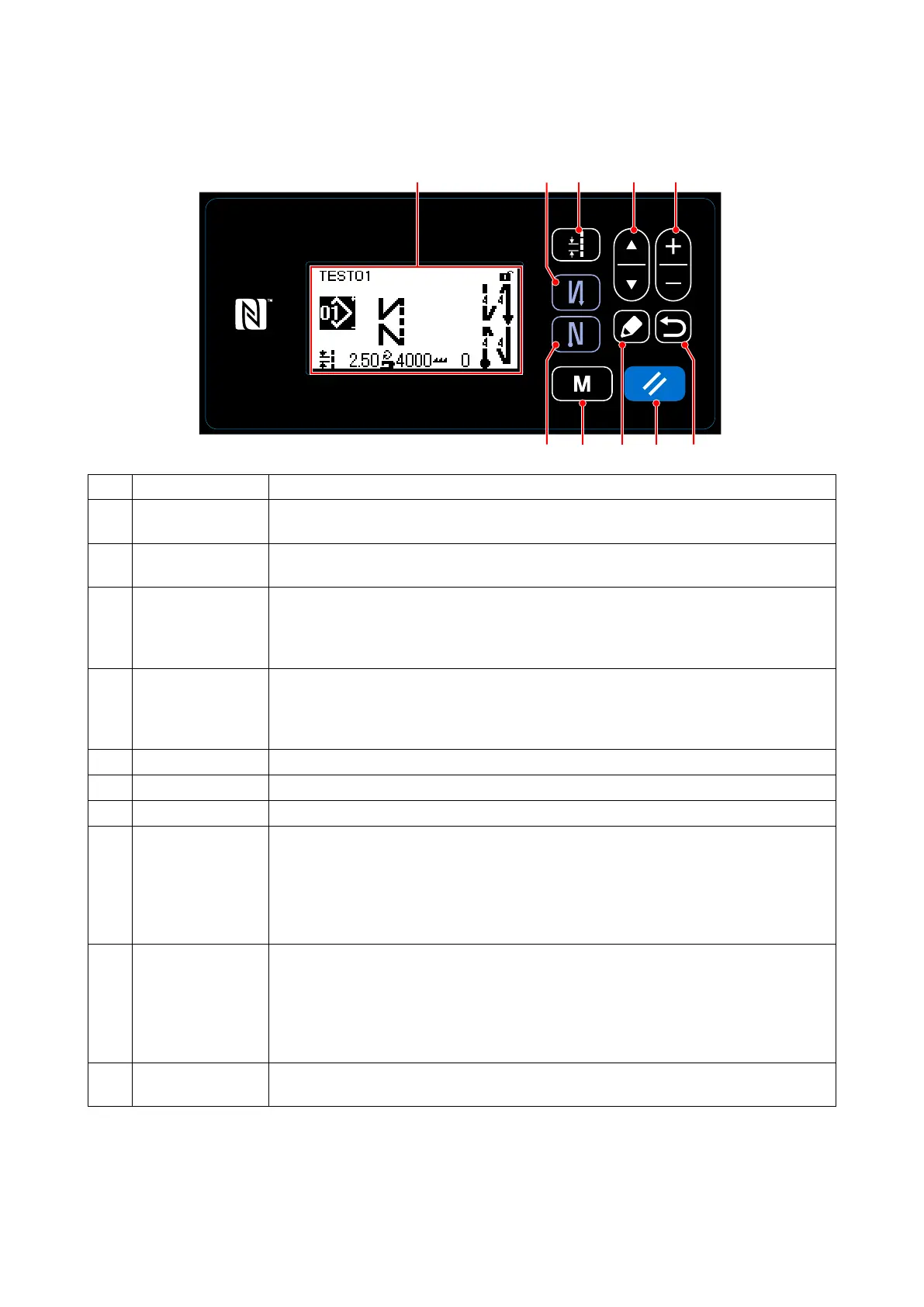

(1) Names and functions of the panel keys
1) DDL-9000C-S
Switch/display Description
❶
Item selection key This key is used for changing over the screen display or for displaying the edit screen.
Refer to the explanation of each screen for details.
❷
Data change key This key is used for changing the currently-displayed pattern number or for changing the
numeric value shown on the counter. Refer to the explanation of each screen for details.
❸
Reverse feed
stitching (at start)
key
This key is used for selecting whether or not the reverse feed stitching is performed at the
beginning of sewing.
The reverse feed stitching (at start) edit screen is displayed by keeping this key held
pressed for one second.
❹
Reverse feed
stitching (at end)
key
This key is used for selecting whether or not the reverse feed stitching is performed at the
end of sewing.
The reverse feed stitching (at end) edit screen is displayed by keeping this key held
pressed for one second.
❺
Edit key This key is used for displaying the edit screen, item section screen or details screen.
❻
Return key This key is used for returning the screen to the previous one.
❼
Pitch key This key is used for displaying the pitch entry screen.
❽
Reset key This key is used for resetting the error, for resetting the counter and for initial setting of
the feed.
The operation panel is placed in the simple-lock state by keeping this key held pressed
for one second. The panel is released from the lock state by operating this key in the
same manner again.
Refer to "8-7-1. Simple lock" in instruction manual.
❾
Mode key This key is used for displaying the mode screen.
・The user level is displayed by operating this key in the normal manner.
・The serviceperson level 1 is displayed by keeping the key held pressed for three sec-
onds.
・The serviceperson level 2 is displayed by keeping the key held pressed for six sec-
onds.
󱢳
Liquid crystal dis-
play section
Each screen is displayed on this LCD.
* Conrmation of data
Change in the pattern number is conrmed at the moment Data change key ❷ is pressed.
For the setting items of the memory switch and pattern number, the setting is changed by pressing Data
change key ❷ and conrmed by pressing Return key ❻.
The new setting of data of a setting item is also conrmed by selecting other setting item with Item selection
key ❶ after making a change.
