Adjustment Procedure

1) Z-phase adjustment of a main motor

* When you implement an origin adjustment of various motors, be sure to start with adjustment of a

main motor (Z-phase adjustment).

It is because the phase of various motors is decided by the angle of the main motor.

* For adjustment of various motors, refer to the Section "11 Check program."

The procedure conforms to 1) Z-phase adjustment of a main motor.

1)-1. DDL-9000C-S

❶

❺

❾

❶

❺

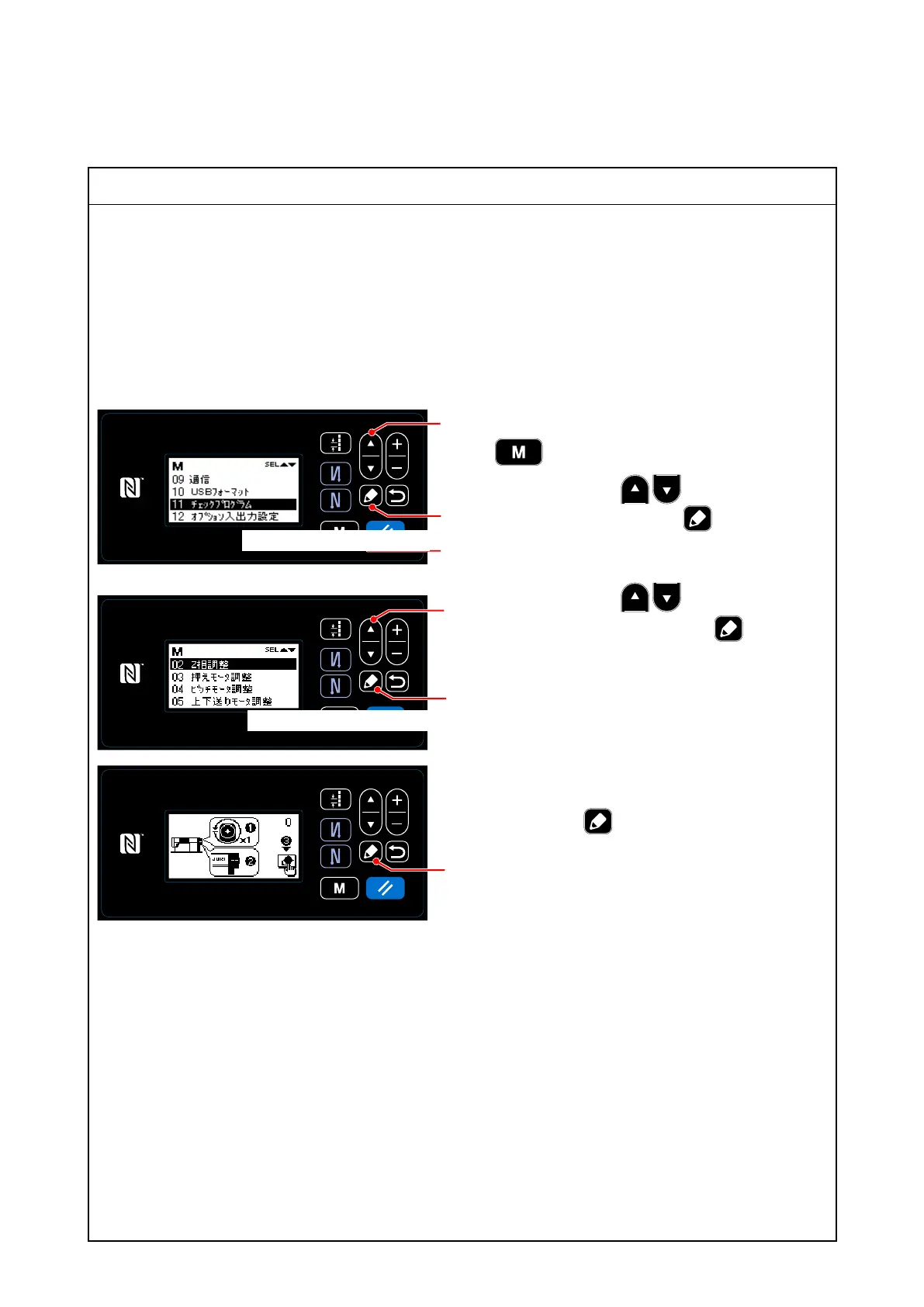

1. Turn on the sewing machine while pressing the

❾.

2. After pressing the ❶ to select the "11

Check program," press the ❺ to display the

check program selection screen.

3. After pressing the ❶ to select the "02

Z-phase adjustment," press the ❺ to dis-

play the Z-phase adjustment screen.

4. Turn a handwheel one revolution and align

one marker line with the other marker line. By

pressing the ❺, the current screen returns

to the check program election screen after the

adjusted contents are xed.

画面をご支給ください

– 23 –
