Adjustment Procedure
3) Pitch motor adjustment
* The pitch motor adjustment is helpful to adjust the origin of a horizontal motor that controls the horizon-
tal feed motion.
3)-1. DDL-9000C-S
❶
❺
❺
❷
3)-2. DDL-9000F-S
❶
❷
󱢵

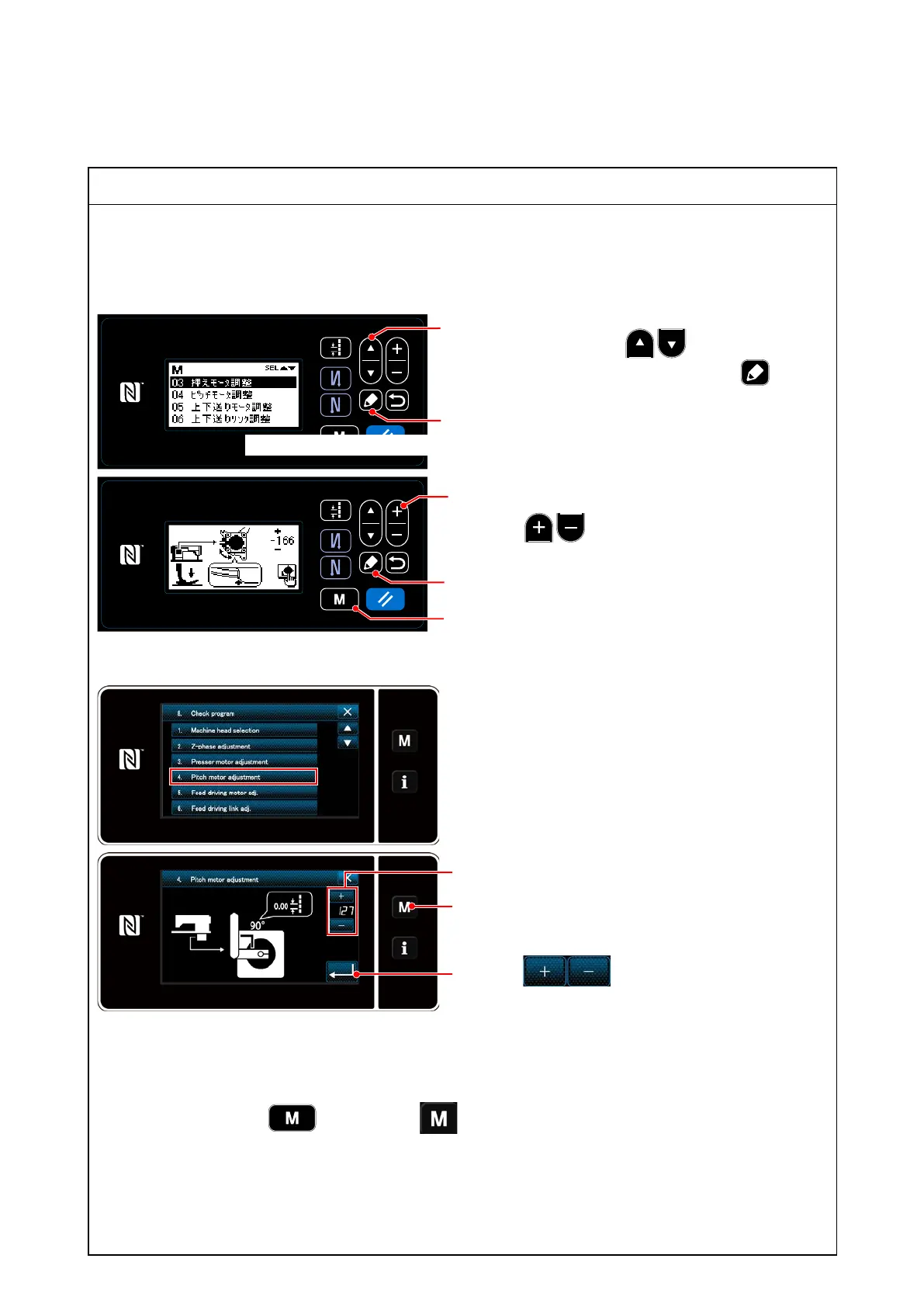

1. Just like the 1. of 1)-1, open the check program
list screen.
2. After pressing the ❶ to select the "03
Pitch motor adjustment," press the ❺ to
display the Presser motor adjustment screen.
3. Conrmation of a horizontal feed motor link
* When the horizontal feed motor link is po-
sitioned at 90 degrees, the horizontal feed
amount is zeroed.
Correct the feed amount by one pulse by pressing
the ❷ according to the feed direction.
4. Turn on the sewing machine again and set the
pitch to 0.0mm, and make sure that the feed
(amount) is a zero when the sewing machine
runs at low speed.
* The feed (amount) is not a zero, perform opera-
tion again from ①.
1. Just like the 1. of 1)-2, open the check program
list screen.
2. After pressing the "Pitch motor adjustment key"
to display the Pitch motor adjustment screen.
3. Conrmation of a horizontal feed motor link
* When the horizontal feed motor link is po-
sitioned at 90 degrees, the horizontal feed
amount is zeroed.
Correct the feed amount by one pulse by pressing
the ❷ according to the feed direction.
⇒ When you have performed the inching operation (200 rotations) again after correction, conrm that the
feed amount is zero. (This is a repeated operation.)
(Caution) When you have replaced the horizontal feed motor because of a trouble and the like, the
motor itself does not recognize its origin. Be sure to enter "11 Check program" while
pressing the ❾ (S type) or ❶ (F type), and turn on the sewing machine.
* When the origin is deviating largely such as after replacement of a motor, x a horizontal
feed motor link at approximately 90 degrees by hand. Then, turn a handwheel by hand,
make sure of the position where that paper is not fed, and operate it.
When you turn on the sewing machine and get into the feed motion in the state of zeroed
feed amount and with the inching operation, make an adjustment of the origin again in
accordance with the above procedure 1.
