Adjustment Procedure
4) Vertical feed motor adjustment
* The vertical feed motor adjustment is helpful to adjust the origin of the vertical feed motor adjustment
that controls the vertical feed motion.

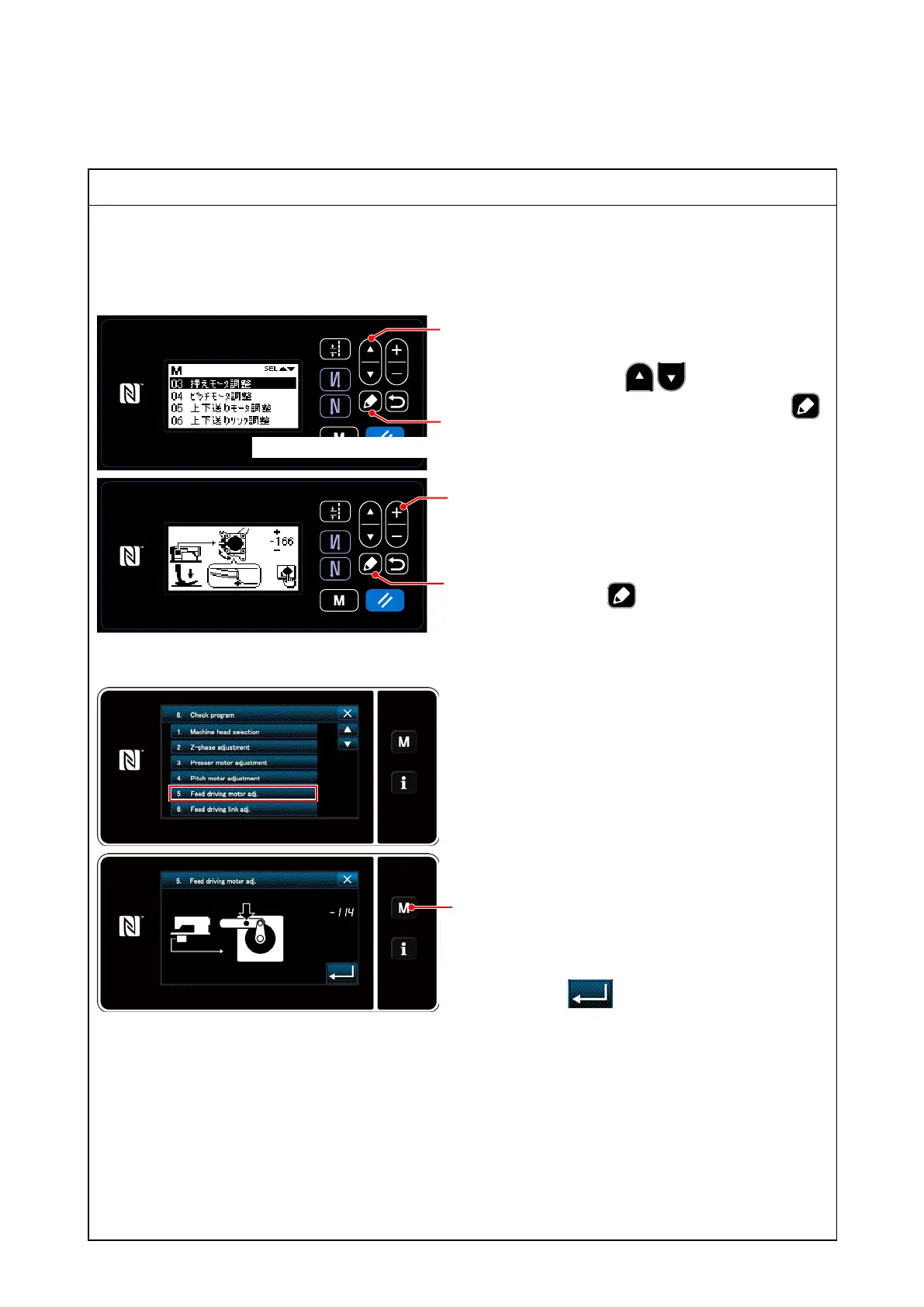

4)-1. DDL-9000C-S
❶
❺
❺
❷
4)-2. DDL-9000F-S
❶
1. Just like the 1. of 1)-1, open the check program
list screen.
2. After pressing the ❶ to select the "05
Vertical feed motor adjustment," press the
❺ to display the Presser motor adjustment
screen.
3. Make the hole (of the origin) on the side of the
upper and lower connection link coincide with
the hole of a motor base.
* The state of coinciding with each other shall
become the origin of the horizontal feed motor.
4.
By pressing the ❺, the current screen re-
turns to the check program election screen after
the adjusted contents are xed.
1. Just like the 1. of 1)-2, open the check program
list screen.
2. After pressing the "Vertical feed motor adjust-
ment key" to display the Vertical feed motor
adjustment screen.
3. Make the hole (of the origin) on the side of the
upper and lower connection link coincide with
the hole of a motor base.
* The state of coinciding with each other shall
become the origin of the horizontal feed motor.
4. Press the ❸ to x it.
4-3) Vertical feed motor link stopper adjustment
* The vertical feed motor link stopper serves as a regulated part that prevents damage of parts such as
the thread trimmer by lowering a feeder bar when maintenance work such as replacement of a feed
dog is performed at the time of power-off.
When you have implemented an adjustment of the origin, be sure to make this adjustment.
