26.HOW TO CHANGE FROM ELLIPTICAL FEED TO HORIZONTAL FEED
(Caution) 1
．
The parts attached with an asterisk(*) are the exclusive parts for the DSC-245-4 or 7.
2
．★
marks mean the parts used succeedingly after replacement.
1. Removing process
1)
Remove presser foot
❶
and walking foot
❷
.
2) Loosen throat plate setscrew
❸
and re-
move throat plate
❹
.
3)
Loosen setscrew
❺
and cap screw
❻
,and
remove bed top cover
❼
,bed top cover
spring
❽
and feed bar hinge stud cap
❾
.
4) Remove spring support shaft
.
5) Remove feed bar
.(At this time,remove
it with feed
and feed bar hinge stud
,
etc. mounted.)
6) Remove setscrew
to remove feed
from feed bar
.
7) Remove E ring
,and remove feed bar
block B
from feed bar hinge stud
.
8) Loosen feed bar hinge stud
and remove
it from feed bar
.
9) Remove feed bar block A
from feed
bar rocker arm
.(it is unnecessary to
remove
.)
10) Remove upper/lower feed pin
.

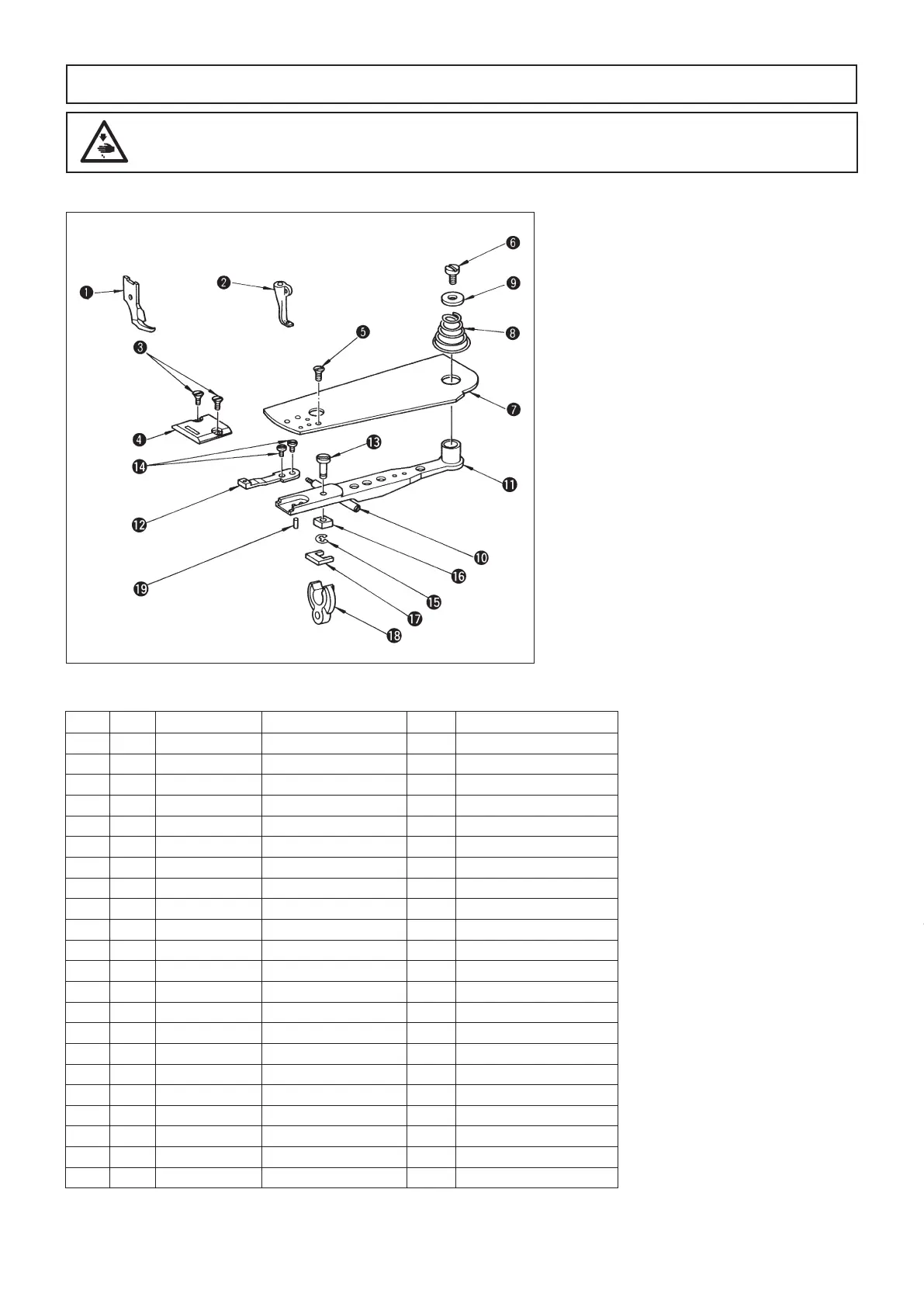

This model can be changed to horizontal feed suitable for attaching tapes by replacing parts.
Note No.
Part No. Part Name
Q'ty
Remarks
1
B15242450A0 Presser foot (asm.)
1
2
B1470245000 Walking foot
1
3
SS2110915SP Throat plate setscrew
2
11/64 threads 40, L=8.5
4
B1105245000 Throat plate
1
*
D1105245E00 Throat plate
1
5
SS2090710TP
Bed top cover setscrew
1
9/64 threads 40, L=7
★
6
B1653245000 Feed bar cap screw
1
9/64 threads 40, L=10
7
B1173245000 Bed top cover
1
*
D1173245E00 Bed top cover
1
8
B1175245000 Bed top cover spring
1
★
9
B1640245000
Feed bar hinge stud cap
1
★
10
B1638245000 Spring support shaft
1
★
11
D1606245E00 Feed bar
1
12
B1613245000 Feed
1
*
D1613245E0A Feed
13
B1645245000
Feed bar block hinge stud
1
★
14
B1652245000 Feed bar setscrew
2
1/8 threads 44, L=3.7
15
RE0300000K0 E ring
1
16
B1644245000 Feed bar block B
1
17
D1643245000 Feed bar block A
1
★
18
B1603245000 Feed bar rocker arm
1
19
B163224500C Upper/lower feed pin
1
List of parts to be replaced
WARNING :
Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the
sewing machine.
