KE2000 Installation Manual
37

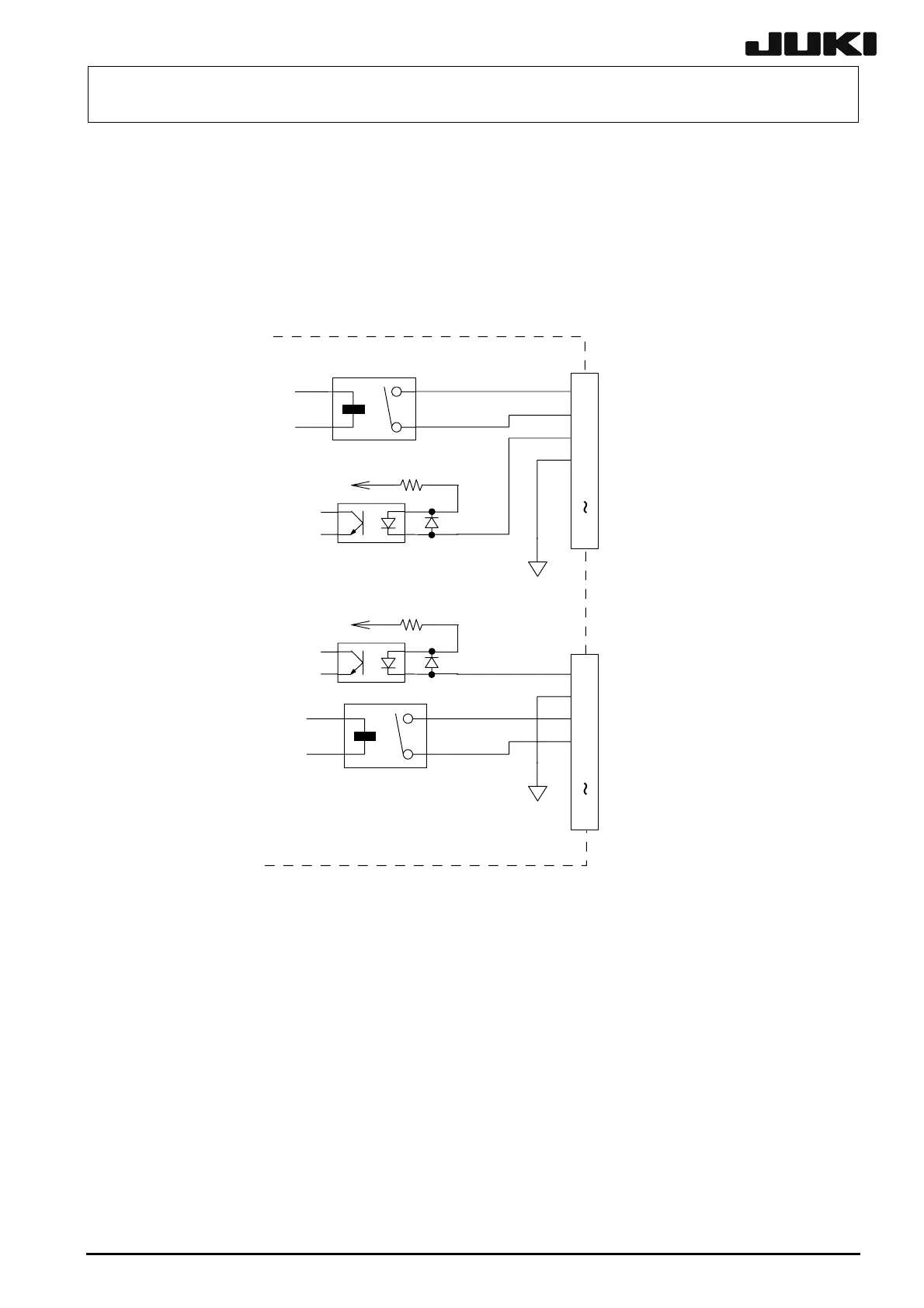

The interface circuit diag
rams of the READY OUT (IN
) and BOARD AVAILABLE signals
are show
n in the Figure below
.
These signals conform to the SMEM
A standard.
Fig
１３－１
GND
（
24
V
）
+
＋
24
Ｖ
3.3K 1/
4W
READY OUT
＋
BOAD AVAILABLE IN
＋
READY OUT
－
BOAD AVAILABLE IN
－
N.C.
1
2
3
4
5
14
READY IN
＋
BOAD AVAILABLE OUT
＋
READY IN
－
BOAD AVAILABLE OUT
－
N.C.
1
2
3
4
5
14
＋
24
Ｖ
3.3K 1/
4W
+
GND
（
24
V
）
42
44
Table of Contents
Default Chapter
3
Table of Contents
3
1 Basic Configuration and Name of each Part
5
Ke-2010/2020/2040
5
Ke-2030
6
2 Installing the Main Unit
7
3 Detaching the Packing Materials from the Machine
8
Overall Machine Cover
8
Safety Cover
9
Transport Cover (Only CE Machine)
10
Pneumatic Units
10
Feeder Relay Cable 8 (for Machines with Fixed Bank Specification Only)
11
Replacement Table Trolley
12
4 Adjusting the Transport Height and Leveling the Machine
14
Ke-2010/2020/2040
14
Ke-2030
17
5 X-Y Unit
19
Detaching the X-Axis Frame Fixing Parts (for Model 2030 Only)
19
Detaching the Head Fixing Parts
20
6 Head Unit
21
Detaching the Packing Materials
21
Detaching the Head Unit Fixing Parts
22
7 Board Transport Unit
24
Detaching the Packing Materials from the Transport Rail
24
Detaching the Packing Materials from the BU Table
24
Center Station on the Y-Axis Drive Side (for Model 2030 Only)
25
Unpacking the Supply Parts
26
8 ATC Unit
27
9 CAL Block
27
10 Connecting the Compressed Air Tube
29
11 Connecting the Power Cord
32
12 Mounting the Accessories
34
Signal Light
34
Vision Monitor
34
Keyboard Bracket
35
HOD (Handheld Operating Device)
35
Hand Knob
35
Hand Knob
36
Feed Relay Cable
36
Chip Box
37
13 Interface with External Equipment
38
Ke-2020/2040
38
Ke-2010/2030
40
14 Connecting the Matrix Tray Changer (MTC)
42
Interface Panel
42
Tr-4Sn
44
TR-6SN and TR-6DN
45
TR-5SN and TR-5DN
46
15 Checking the Machine before Turning on the Power
47
16 Adjusting the Height of the Overall Feeder Exchange Trolley (Optional)
48
Caster Plate Mounting Position
48
Adding the Trolley Spacers (for Height Adjustment)
48
Adding the Trolley Spacers (for Height Adjustment)
49
Adjusting the Bank Stopper Mounting Position
49
Adjusting the Bank Valve Position
