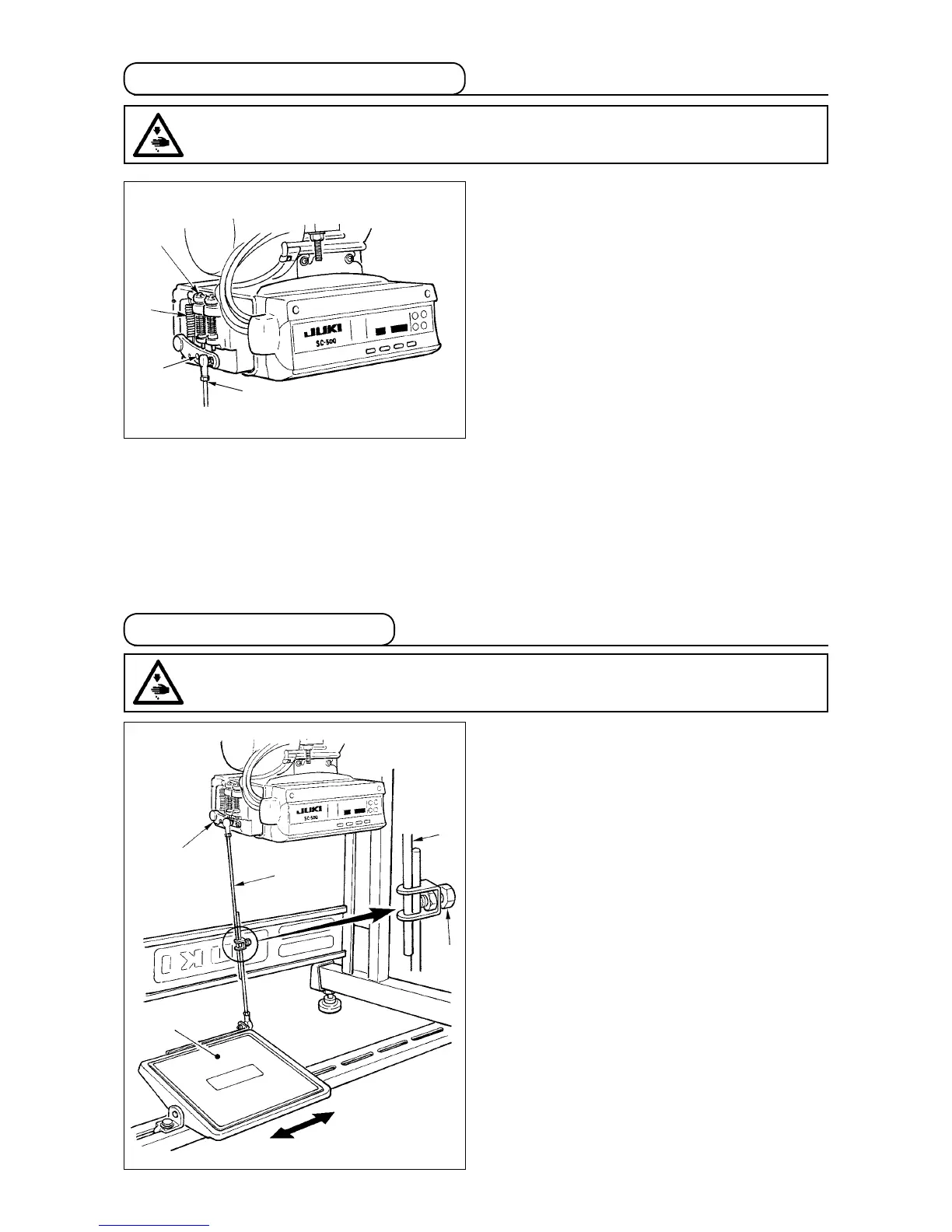

– 21 –
(1) Adjusting the pressure required to
depress the front part of the pedal
1) This pressure can be adjusted by altering the
position of pedal pressure adjusting spring
1
.
The pressure decreases when you hook the
spring on the left side. On the contrary, the
pressure increases when you hook it on the
right side.
(2) Adjusting the pressure required to
depress the back part of the pedal
1) This pressure can be adjusted using regulate
screw
2
. The pressure increases as you turn
the regulator screw in and decreases as you
turn the screw out.
(3) Adjusting the pedal stroke
1) The pedal stroke decreases when you insert
connecting rod
3
into the hole
4
on the left
side.
4-16. Pedal pressure and pedal stroke
(1) Installing the connecting rod
1) Move pedal
3
to the right or left as illustrated
by the arrows so that motor control lever
1
and connecting rod
2
are straightened.
(2) Adjusting the pedal angle
1) The pedal tilt can be freely adjusted by
changing the length of the connecting rod.
2) Loosen adjust screw
4
, and adjust the length
of connecting rod
2
.
4-17. Adjustment of the pedal
WARNING :
To protect against possible personal injury due to abrupt start of the machine, be sure to start the
following work after turning the power off and ascertaining that the motor is at rest.
WARNING :
To protect against possible personal injury due to abrupt start of the machine, be sure to start the
following work after turning the power off and ascertaining that the motor is at rest.
1
2
1
2
4
3
2
4
3
