– 104 –
④

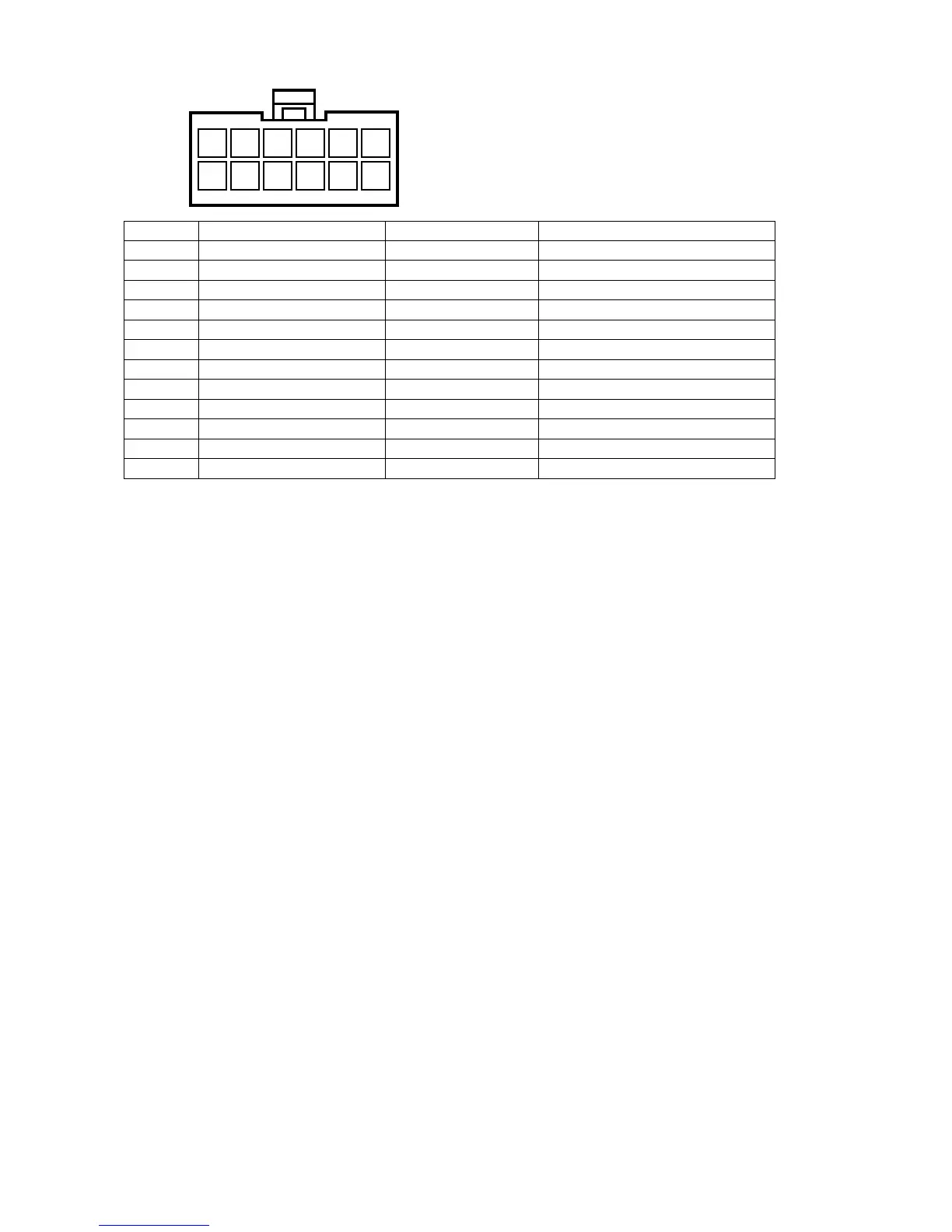

CN102: 12P connector (Solenoid valve)
Pin No. Part name Color of cable Remarks
1 Solenoid valve (CN151) Black Presser bar lifting cylinder
2 Solenoid valve (CN152) Black Reverse feed cylinder
3 Solenoid valve (CN153) Black Alternate up/down cylinder
4
－ － －
5 Solenoid valve (CN155) Black 2-pitch cylinder
6
－ － －
7 Solenoid valve (CN151) Red +24V
8 Solenoid valve (CN152) Red +24V
9 Solenoid valve (CN153) Red +24V
10
－ － －
11 Solenoid valve (CN155) Red +24V
12
－ － －
* When connecting the connectors to the control box, prepare a junction cord using the below-stated connector pin ter-
minal.
Part number of the target connector : HK034620120 (MOLEX : 5559-12P)
Part number of the target pin terminal : HK034630000 (MOLEX : 5558TL)
2 14 356
8 710 91112
To Next Page
