JUKI LU-2800 Series User Manual

– 6 –

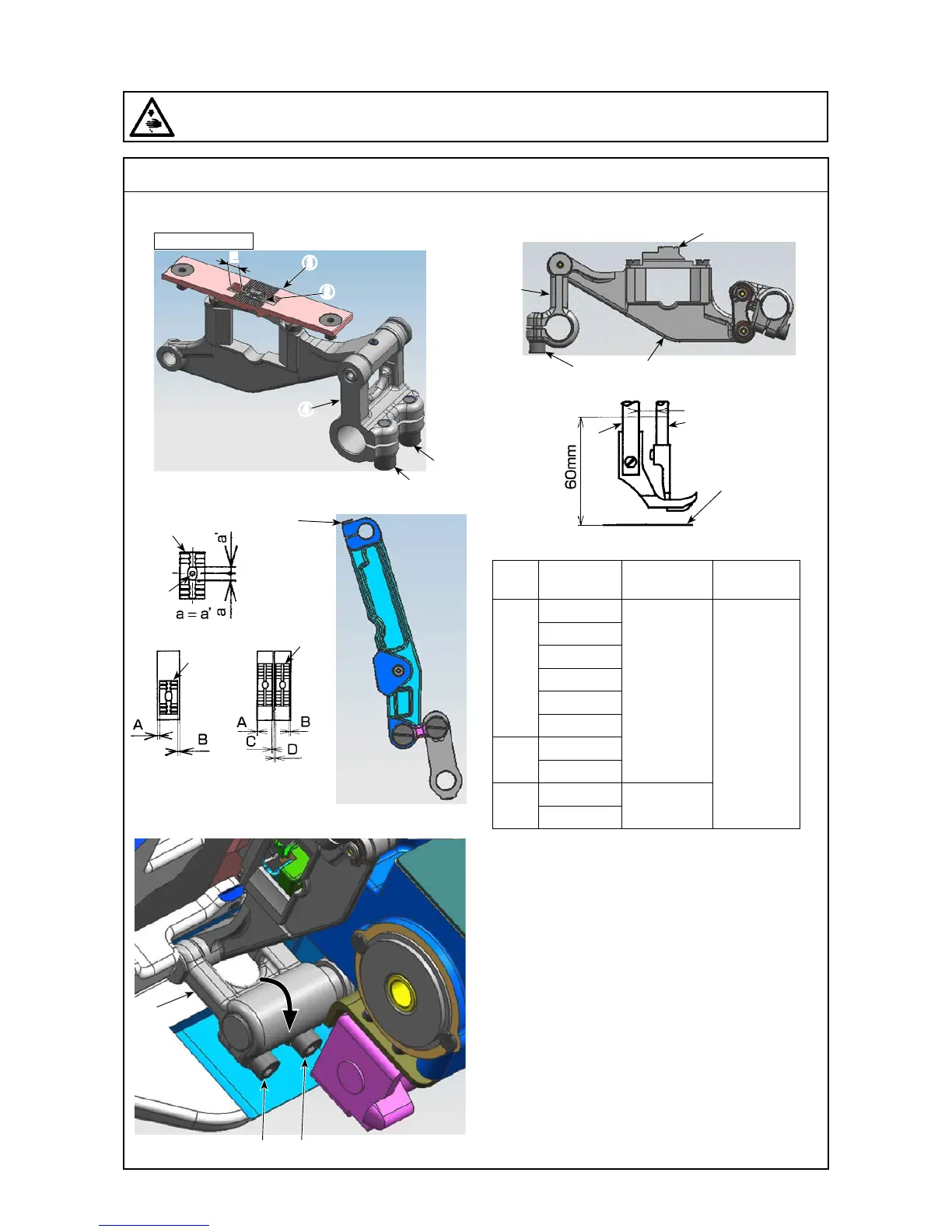

(2) Needle entry position (Europe gauge type)
WARNING :
Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the
sewing machine.
Standard adjustment
Model
group
Model
Dimension E
(mm)
Gauge type
Z
LU-2810
5.7 ± 0.2
Europe
gauge type
LU-2810-6
LU-2810-7
LU-2860
LU-2860-6
LU-2860-7
Y
LU-2828-6
LU-2828-7
X
LU-2818-7
9.8 ± 0.1
LU-2868-7
[Conditions]
• Needle bar at lowest dead point
• Feed amount : 0 mm
• Height of feed dog : 0.5 to 0.6 mm (Highest
position)
❷
❻
❶
❹
E
❸
❷
Operator's side
󱢴
󱢳
❷
❷
In case of 2-needle
❹
󱢳
󱢴
E
Top surface of
❸
❽
❼
❹
❺
❷
󱢳
,
󱢴
Model group
Z
,
Y
Model group
X
