JUKI LU-2800 Series User Manual

– 126 –
A
B
D
C
E
F
G
H
I

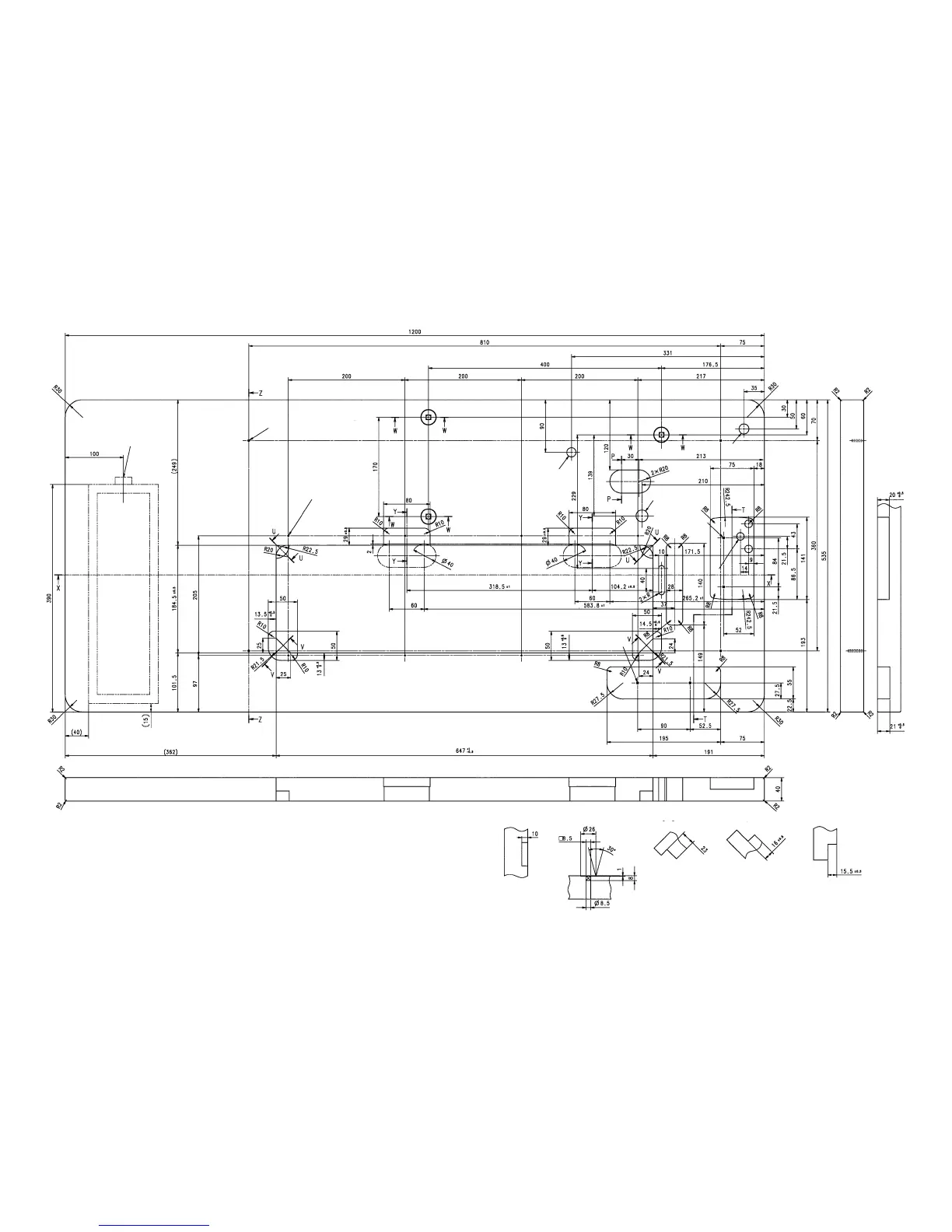

(2) For SC-922 (LU-2810-7, 2860-7)
Part No. : 40123233
A
4 × ø3.4 on the bottom surface, depth 20 (Drill a hole at the time of set-up.)
B
Installing position of drawer stopper (on the bottom surface)
C
ø16 depth 25
D
ø17 drilled hole
E
3 × ø13 drilled hole
F
2 × ø3.5 depth 10
G
2 × ø3.5 depth 10
H
8 × ø2.7 on the bottom surface, depth 6 (Drill a hole at the time of set-up.)
I
ø20 drilled hole
Y-Y (2 locations)V-V (2 locations)U-U (2 locations)W-W (3 locations)P-P
X-X
Z-Z
T-T
