– 58 –
(19) DL device
WARNING :
As the work is performed while the power is ON, never touch the switches other than the necessary
one so as to prevent accidents caused by the malfunction of switches.
Standard adjustment

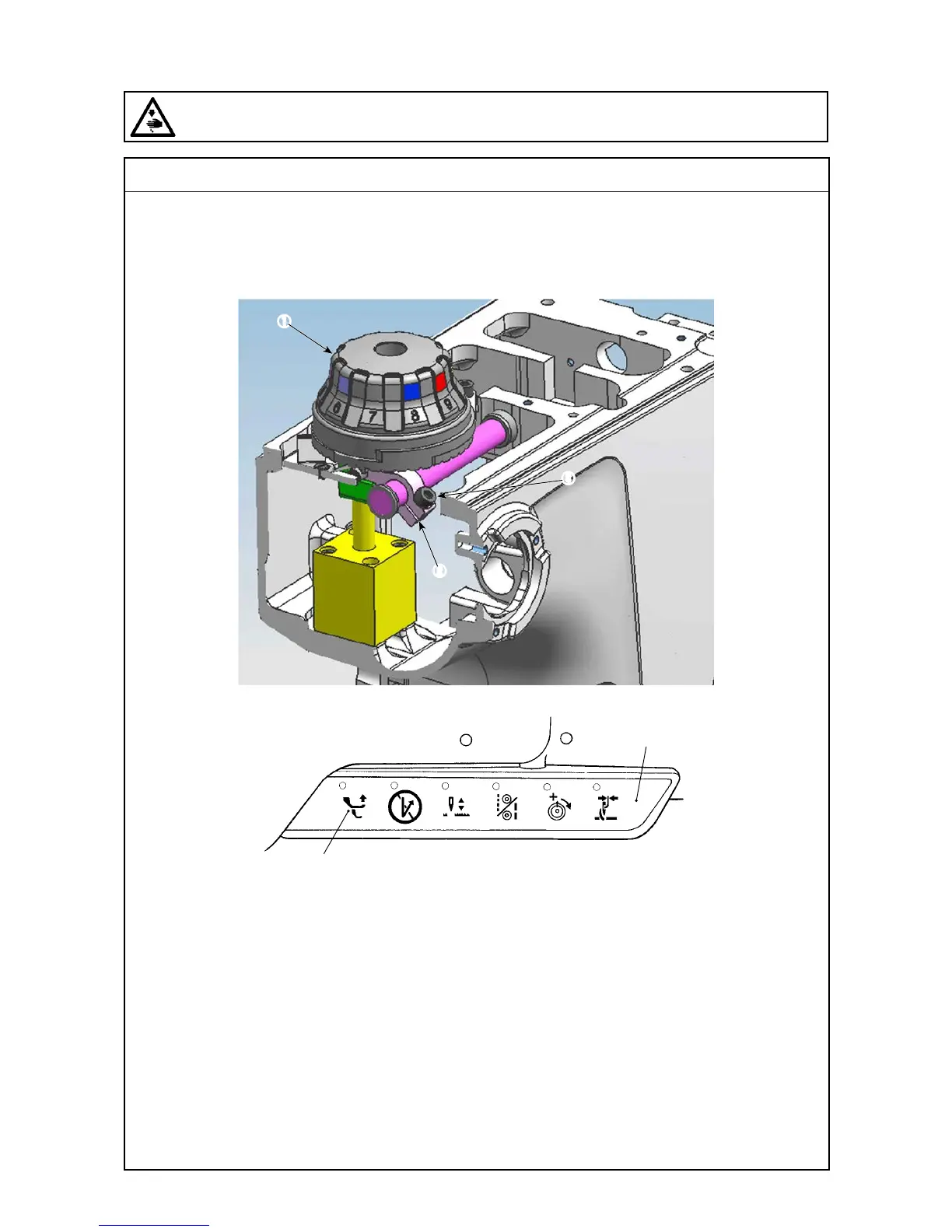

The DL device is a device for maximizing the amount of alternate vertical movement when it is placed in
ON.
When the cylinder is turned ON to maximize the amount of alternate vertical movement, tighten clamping
screw
❸
with the alternate vertical adjusting pin pressed against the dial cam plane.
❹
DL switch
❸
❷
❶
To Next Page
