JUKI LZ-2290A-SR/IP-100D/SC-916 User Manual

104
Example) Parameter file No. 70 of the smart media is downloaded to the condensation custom pattern at the
sewing end No. 10 (EPD).
1) Open the smart media cover and insert the smart media (Optional Part No. : HX005750000) from the insertion
opening.
* Panel function does not work with the cover opened.
2) Selection of data
Press 1 in the communication setting screen to display the data selection screen. Data form which is
selected at present is shown in reverse video.

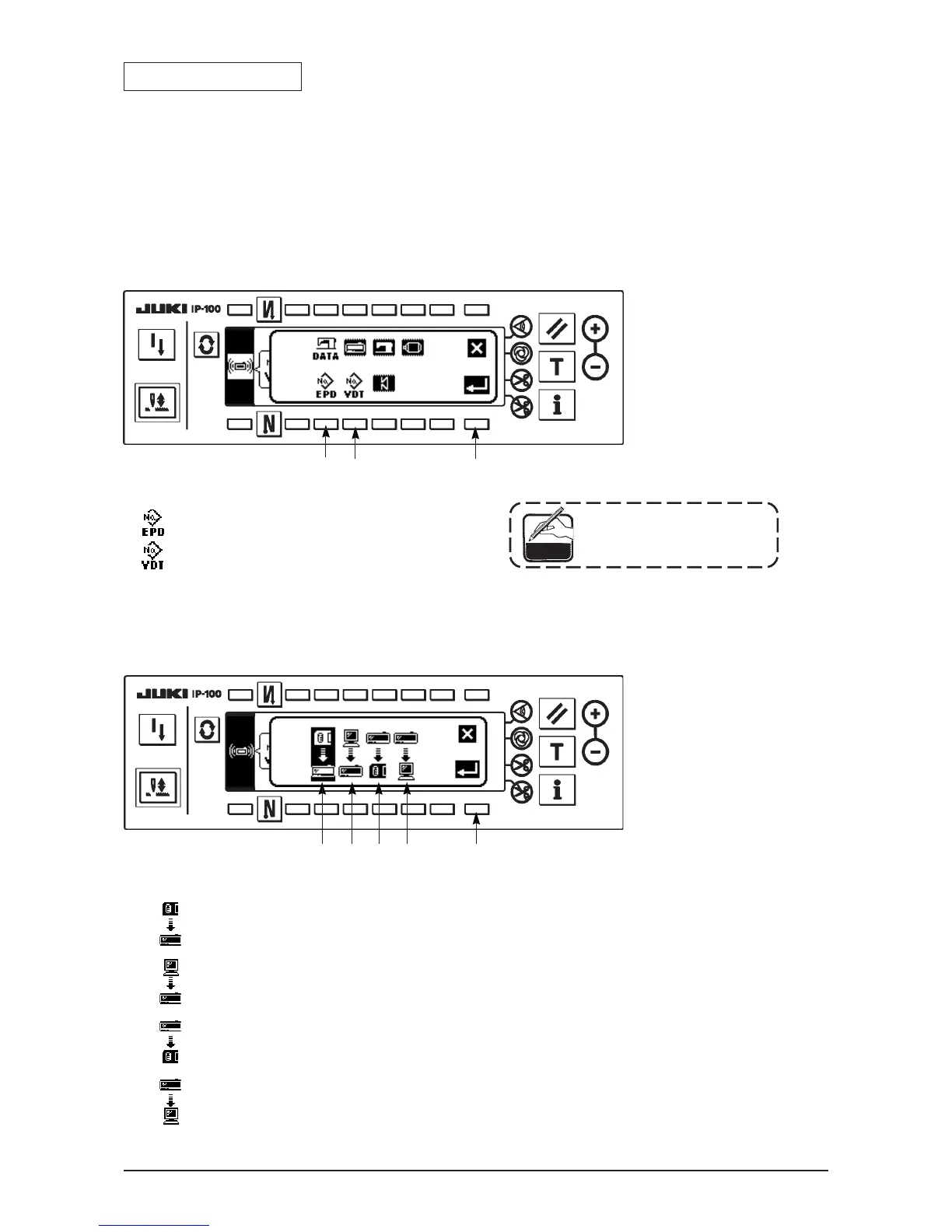

Example of download
[Explanation of the pictograph]
1 : Download from the smart media
2 : Download from SU-1
3  : Upload to the smart media
4 : Upload to SU-1
Press 1 to select download from the smart media. Then press 5 to determine.
3) Selection of communication method
Press 2 in the communication setting screen to display the communication method setting screen.
■Communication setting screen
[Explanation of the pictograph]
: Parameter data
: Vector form data
Press 1 and determine with 3 after selecting the parameter.
1
5
2 3 4
Communication method
which is selected at present
is shown in reverse video.
■Data selection screen
1
2 3
Condensation custom
pattern is EPD and custom
pattern VDT.
Reference

JUKI LZ-2290A-SR/IP-100D/SC-916 Specifications

General

Model	LZ-2290A-SR/IP-100D/SC-916
Stitch Type	Zigzag
Max Stitch Length	5mm
Needle Bar Stroke	30.7mm
Max Zigzag Width	10mm
Type	Electronic Zigzag Stitch Sewing Machine
Needle	DPx5
Motor	AC Servo Motor
Needle System	DP×5
Sewing Speed	5000 stitches/minute
