JUKI MOJ-2500N User Manual

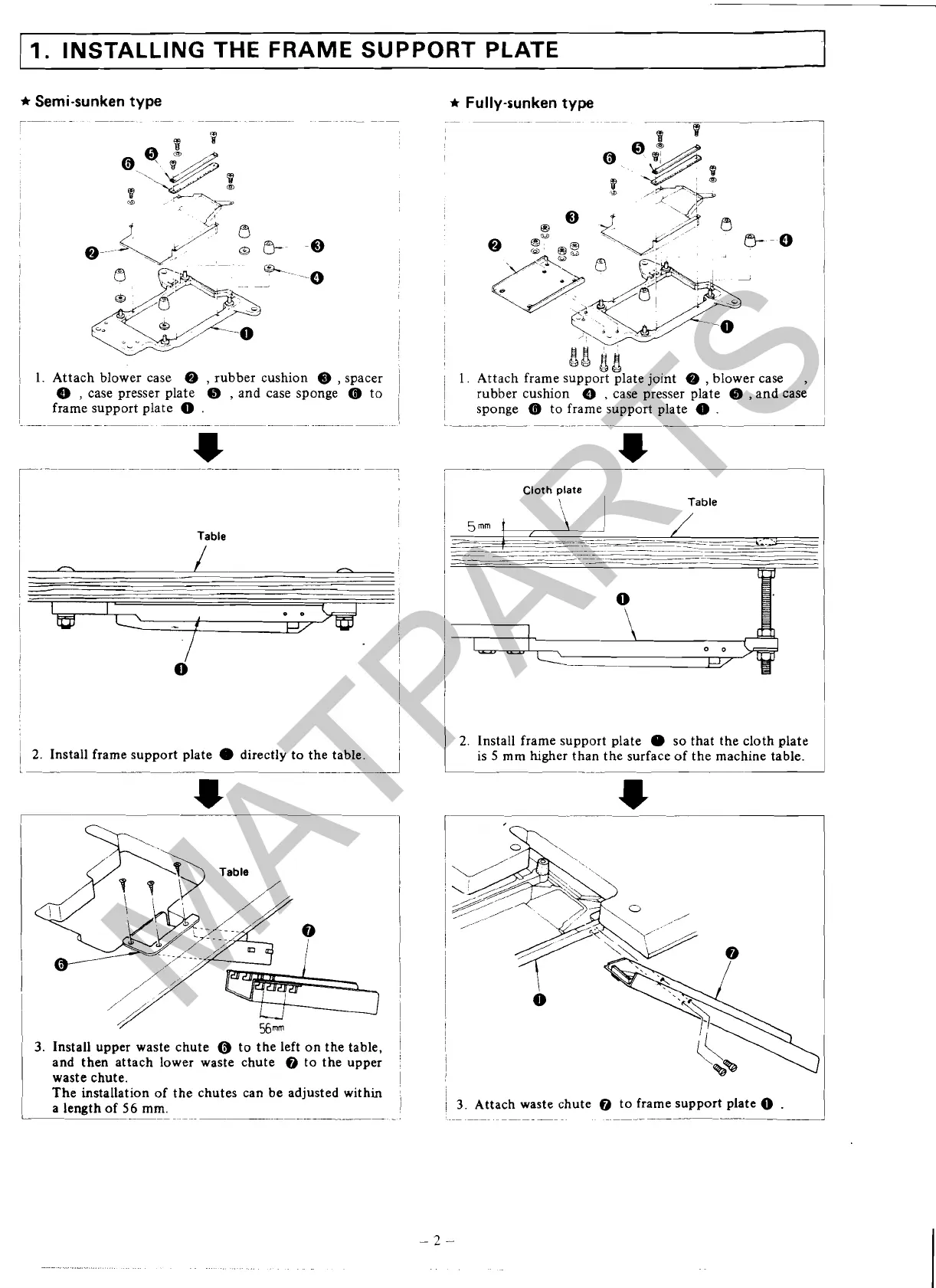

1. INSTALLING THE FRAME SUPPORT PLATE
1
* Semi-sunken type
+ Fully-sunken type
I I Attach blower case @ , rubber cushion @ , spacer
'
Q , case presser plate @ , and case sponge @ to
frame support plate
0 .
Table
1 2. Install frame support plate 0 directly to the table.
3. Install upper waste chute @ to the left on the table,
and then attach lower waste chute
@ to the upper
waste chute.
The installation of the chutes can be adjusted within
a length of
56 mrn.
- -
-- - - - - - - - -
1. Attach frame supPo; ;late joint Q , blower case
,
rubber cushion 0 , case presser plate Q , and case
sponge
@ to frame support plate 0 .
Cloth plate
\.
Table I
2. Install frame support plate so that the cloth plate
is 5 mm higher than the surface of the machine table.
/ 3. Attach waste chute @ to frame support plate 0 .
- -- - - - - . -
- - - -- - - .-
MATPARTS
