JUKI TL-2200QVP User Manual

1
2
1
2
–
23 –
Adjusting the thread tension
CAUTION
Turn OFF the power switch before taking out the bobbin case or replacing the
needle.

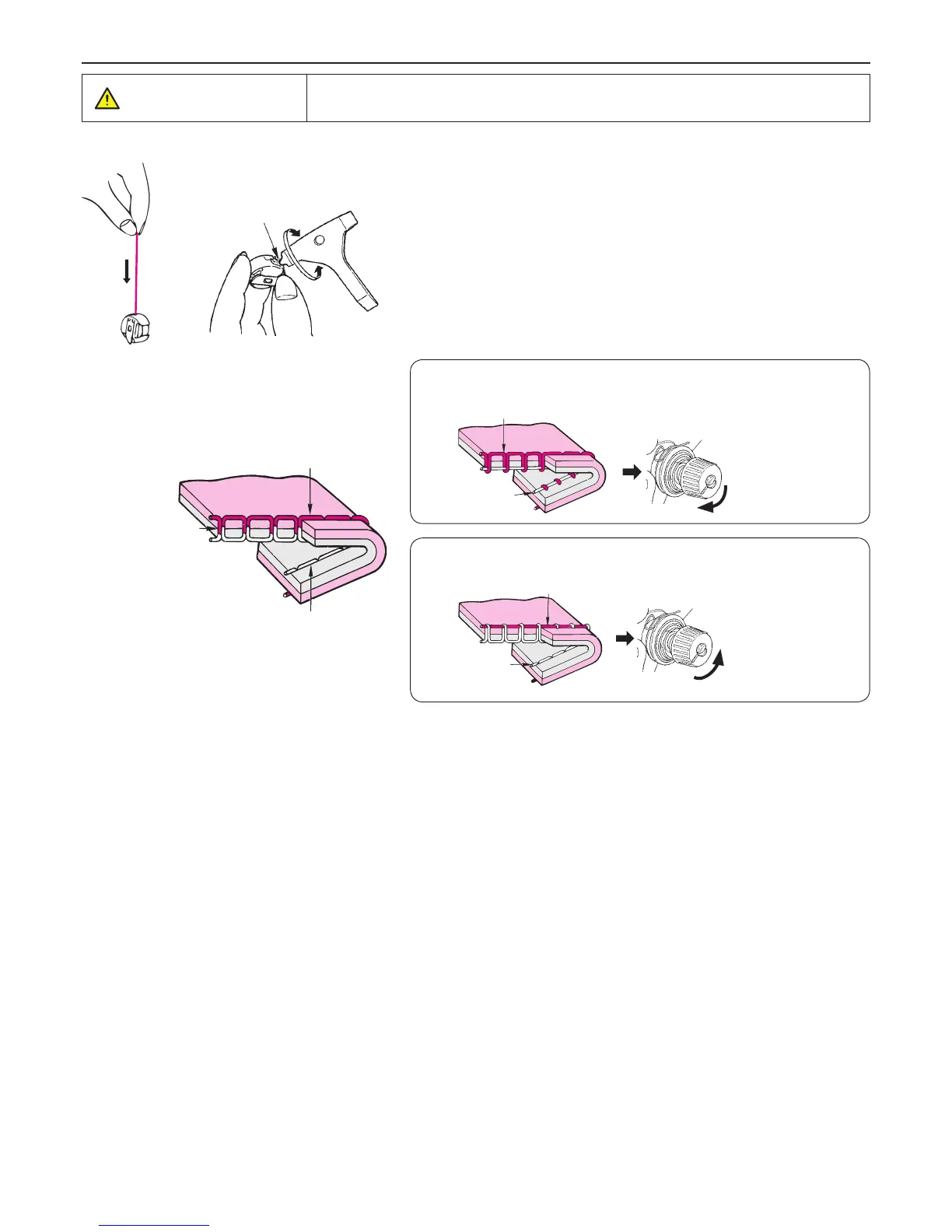

As a measure of the thread tension applied by the bobbin case, when a
bobbin (Cotton TEX40) is loaded in the bobbin case, the bobbin should
slowly drop by its own weight as illustrated in the gure.
* Adjust the needle thread tension in accordance with the bobbin thread
tension.
* The bobbin case for the TL-2200QVP is an exclusive JUKI part. Please
consult the JUKI dealers when you purchase it.
· Adjusting the bobbin case
· Proper thread tension
Improperly adjusted thread tension may cause
puckering on materials, inferior stitches, or thread
breakage.
The needle thread tension is too low
The needle thread tension is too high
Tension
adjusting screw
Increase
Decrease
Needle thread
Needle thread
Bobbin thread
Needle thread
Bobbin thread
Bobbin thread
Center of the
material
Thread tension dial
Decrease the needle
thread tension.
Increase the needle
thread tension.

JUKI TL-2200QVP Specifications

General

Thread Tension	Manual
Lighting	LED
Needle Position	Up/Down
Automatic Needle Threader	Yes
Bobbin Winder	Built-in
Thread Tension Control	Manual
Needle Bar Stroke	35mm
Stitching Speed	1500 stitches per minute
Stitch Length	Maximum 6mm
Motor	AC Motor
