Juniper SRX320 Quick Start Guide

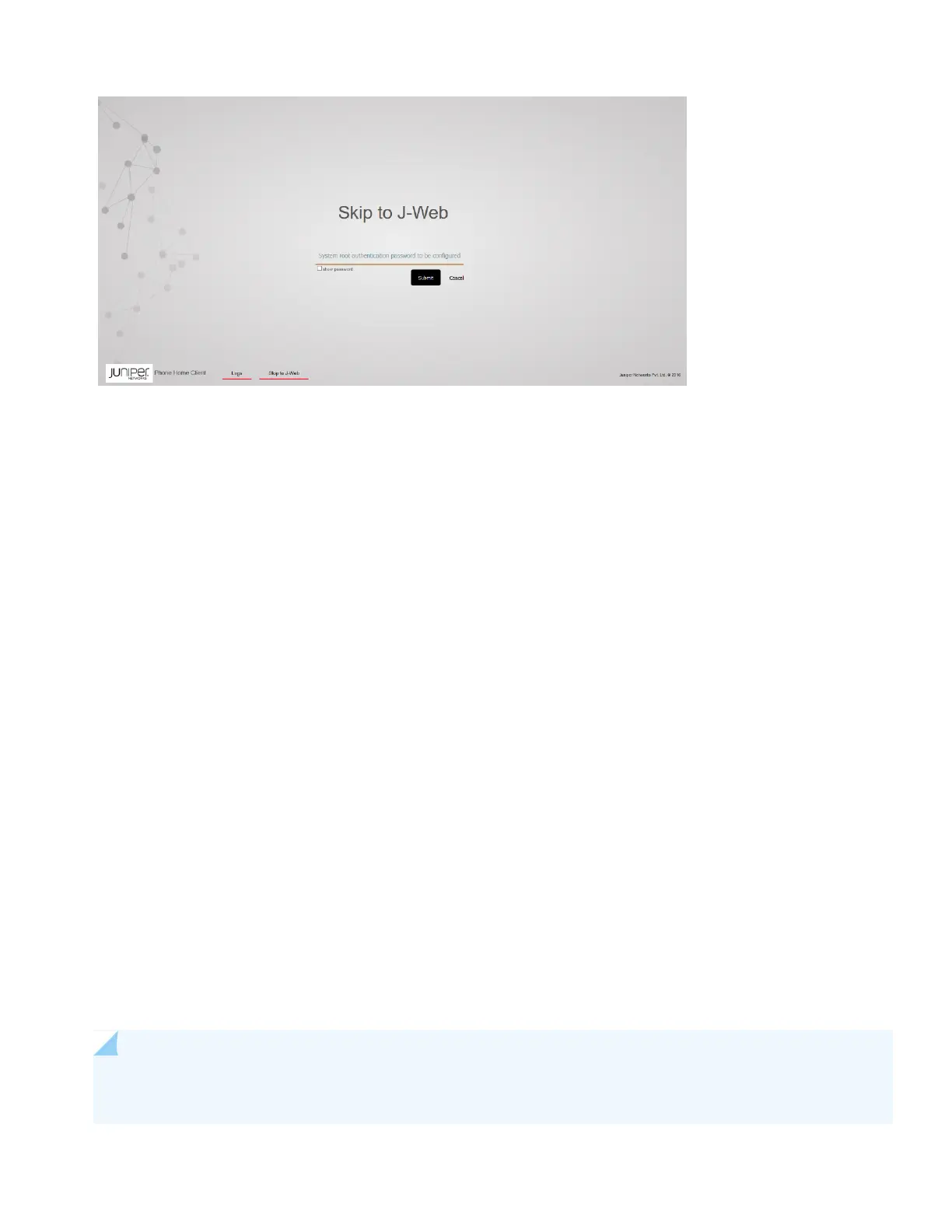

The J-Web login page appears.
Plug and Play
The SRX320 already has factory-default settings configured to make it a plug and play device. So all you have to do to
get the SRX320 up and running is connect it to your LAN and WAN networks.
1. Connect the WAN network to port 0/0 to obtain a dynamic IP address.
2. Connect the LAN network to any of the ports from 0/1 through 0/6.
3. Check to see if the SRX320 is connected to the Internet. Go to http://www.juniper.net. If the page does not load,
check the Internet connection.
After you complete these steps, you can start using the SRX320 on your network right away.
Customize the Configuration
You can continue to customize the settings by logging in to J-Web and selecting the configuration mode that’s right for
you. You can then follow the screens as they appear in the Setup wizard.
NOTE: To customize the configuration in Junos OS Release 15.1X49-D170, see Customize the Configuration
for Junos OS Release 15.1X49-D170.
•
Standard—Configure basic security settings for the SRX320.
11

Juniper SRX320 Specifications

General

Firewall throughput	1000 Mbit/s
Number of users	50 user(s)
Quality of Service (QoS) support	Yes
Mobile VPN IPSec	250
IPS/IDS throughput	100 Mbit/s
USB 2.0 ports quantity	1
Connectivity technology	Wired
SFP module slots quantity	2
Ethernet LAN (RJ-45) ports	6
Internal memory	4000 MB
Flash memory	8000 MB
Storage media type	Flash
Power consumption (typical)	27 W
Heat dissipation	157 BTU/h
Concurrent connections	64000
Mean time between failures (MTBF)	284700 h
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Routing protocols	BGP, CLNS, IS-IS, OSPF, RIP-1, RIP-2

Weight and Dimensions

Weight	1510 g
Dimensions (WxDxH)	299.9 x 43.9 x 191 mm
