1) Connect a yellow composite cable from the camcorder VIDEO OUT, into the VIDEO IN on
the front of the TV.
2) Connect a white composite cable from the camcorder LEFT AUDIO OUT, into the
LEFT AUDIO IN on the front of the TV.
3) Connect a red composite cable from the camcorder RIGHT AUDIO OUT, into the
RIGHT AUDIO IN on the front of the TV.
Note:
• If your camcorder is a mono sound model it will have only one AUDIO OUT. Connect it to
the LEFT AUDIO IN.
• AV-27D304, AV-27D104 and AV-20D304: These front input jacks are located under the
front panel door. To access, pull on the door to open it.
You may connect a camcorder, game console or other equipment to your television by using
the front input jacks. You can also connect these using the television’s rear input jacks,
using the same instructions.
16

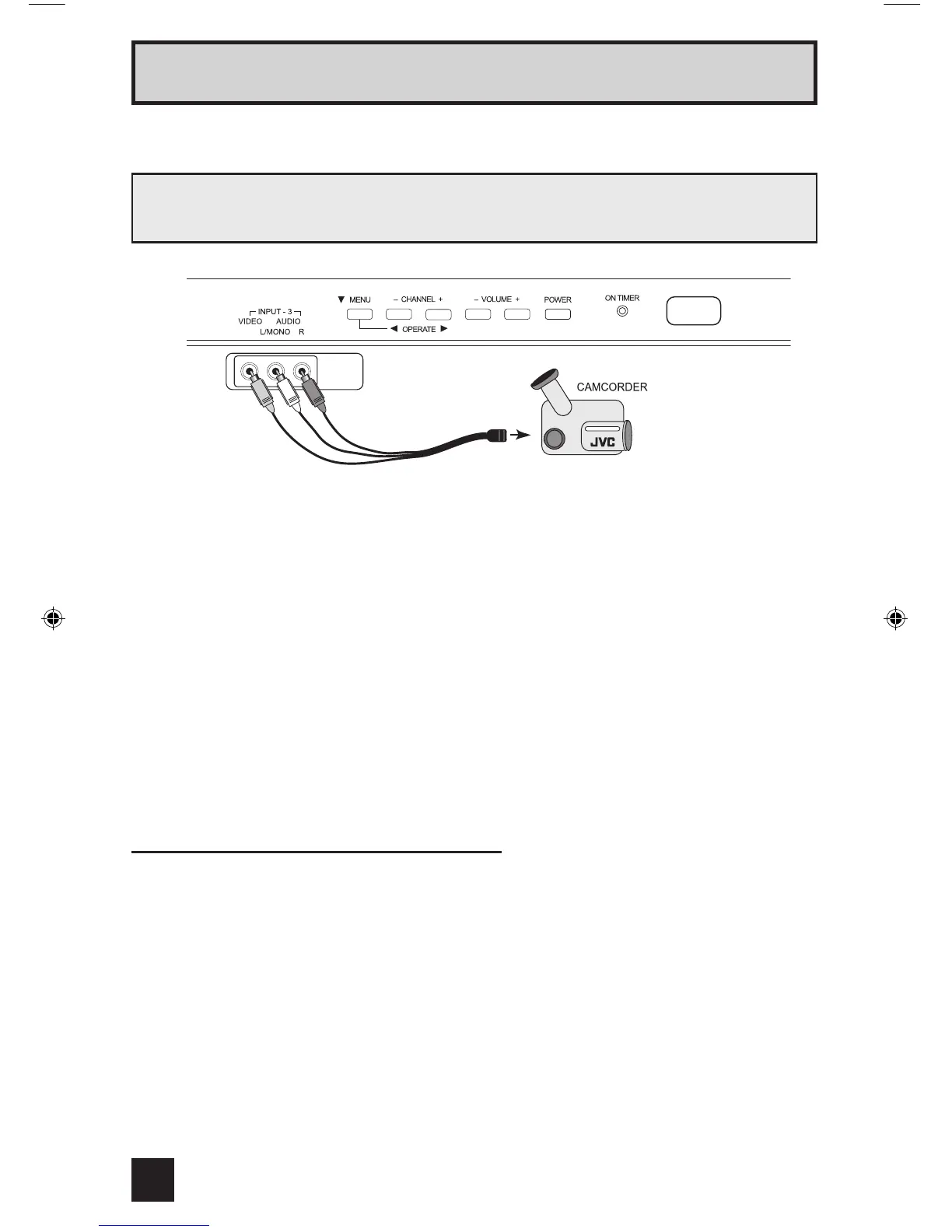

Connecting to a Camcorder
Illustration of AV-32430
Headphone Connection
AV-20D304 ONLY.
You can connect a pair of headphones to the television using the headphone jack located
under the front panel door. To access, pull on the door to open it.
1) Plug a headphone jack into the headphone jack on the television’s front panel.
Quick Setup Connections
