ENGLISH
㽸 Feet

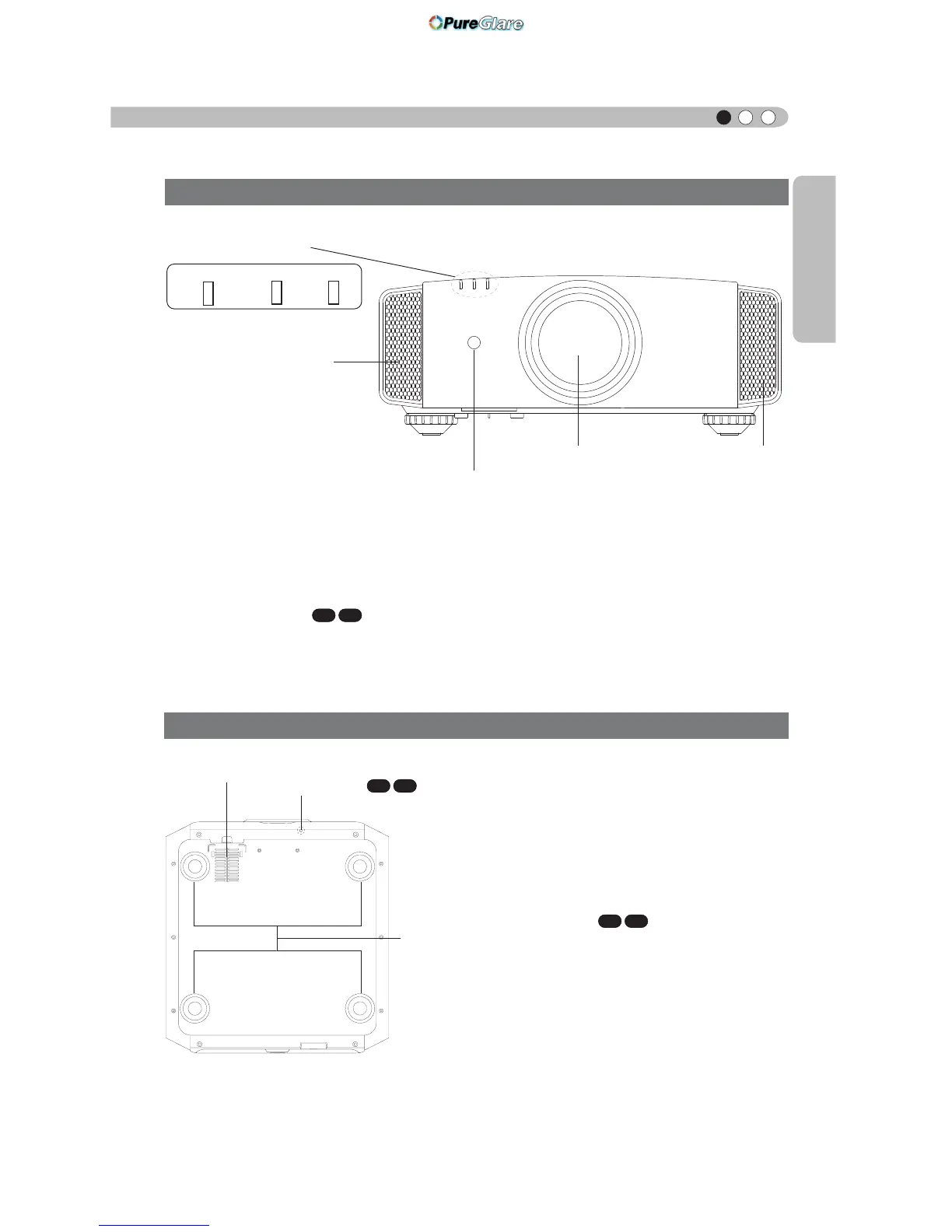

Controls and features
㽲 Lens
This is a proj
ection lens. Please do not look
inside during projection.
㽳 Remote receiver (front)
Please aim the remote control at this area when
using it.
(* There is also a remote receiver at the rear.
㽴 Indicator
Please see
“
About the indicator display
”
for
details. (Reference page: 17
㽵 Exhaust Vent
Warm air Àows out in order to cool the interior of
the set. Please do not block the vents.
㽶 Inlets
㽷 Manual button for
lens cover
㽶 Inlets (at 3 points on the rear/
bottom)
In order to cool the inside of the unit, air is let
inside. Do not block or prevent the outÀow of
hot air. Doing so could lead to failure of the unit.
(* There are inlets at two points on the right
and left sides of the rear side.
㽷 Manual operation button of the
lens cover
90
70
The lens cover can be opened when pressed
down.It is used for maintenance and not used
during normal use.
㽸 Feet
The height (0 to 5 mm can be adjusted by
turning the foot.
Main body - Front
Main body - Bottom
㽵 Exhaust
Vent
㽲 Lens
㽳 Remote receiver (front)
㽵 Exhaust Ve
nt
㽴 Indicator
STANDBY/ON LAMP WARNING
Lens cover
Lens cover
The lens cover opens/closes when the power
supply is turned on/off.
(Reference page: 66
When the foot is removed, it can be used as the
mounting holes for the ceiling mount bracket.
(Reference page: 24
90
70
90
70
(Reference page: 16
To Next Page
