1-12
(No.M
B616<
Rev.
002>
)
3.1.6
Re
moving the
TUNER PACK
(See Fig.13, 14)
(1)
Disconn
ect the c
ard wire
from TUNER PACK con
nected to
connec
tor
CN750
of t
he MAIN
BOARD assem
bly. (See
Fig. 13)
(2)
Remove th
e two sc
rews
H
attaching the TUNER PACK.
(See Fig.1
4)

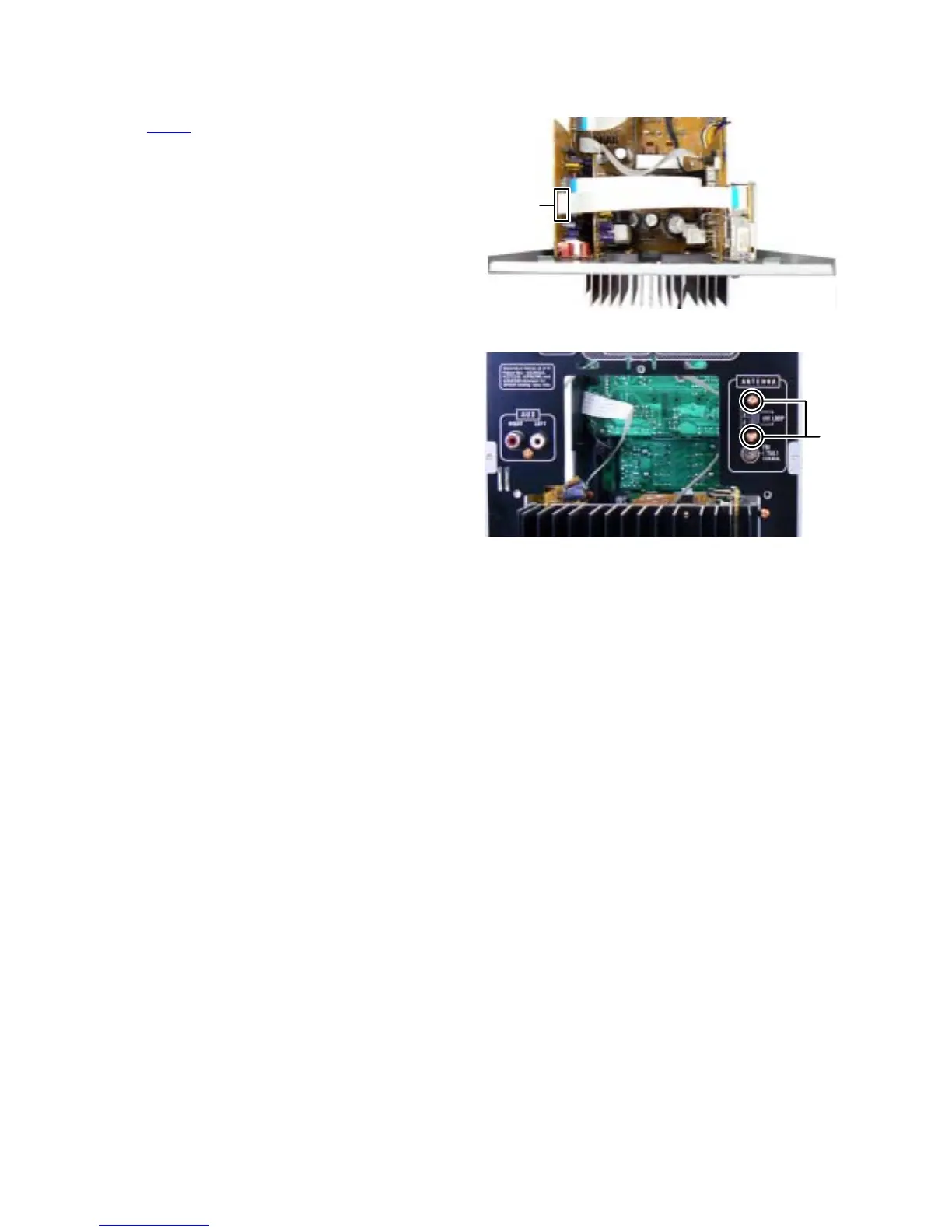

Fig.13
Fig.14
CN750
H
11
13
Table of Contents
Table of Contents
1
Specifications
2
Safety Precautions
4
Leakage Shock Hazard Testing
4
Grounding to Prevent Damage by Static Electricity
5
Handling the Traverse Unit (Optical Pickup)
5
Attention When Traverse Unit Is Decomposed
5
Important for Laser Products
6
Specific Service Instructions
7
Main Body Disassembly
8
Removing the METAL COVER
8
Disassembly
8
Removing the DVD CHANGER MECHANISM Assembly
9
Removing the MECHA CHASSIS
10
Removing the VIDEO BOARD Assembly
10
Removing the REAR COVER with FAN
11
Removing the TUNER PACK
12
Removing the REAR PANEL
13
Removing the MAIN BOARD Assembly
14
See Fig.
14
Removing the REGULATOR BOARD Assembly
15
See Fig.
15
Removing the SURROUND AMP BOARD Assembly
16
Removing the FRONT PANEL Assembly
16
Removing the CASSETTE MECHANISMS
17
Removing the FL BOARD Assembly and SWITCH BOARD Assembly
18
Removing the MIC BOARD Assembly
18
DVD Changer Mechanism Assembly Section Disassembly
19
Removing the Tray Assemblies
19
See Fig.
21
Removing the Switch Board
21
Removing the DVD Servo Board
21
Removing the Motor Board
22
Removing the Motor
22
No.mb616<Rev.002>)1
22
Removing the DVD Traverse Mechanism Assembly
23
See Fig.
23
Removing the DVD Pickup
24
Attaching the DVD Pickup
24
See Fig.
24
Removing the Spindle Motor Board
26
See Fig.
26
Removing the Feed Motor
27
See Fig.
27
Removing the Side (L) and Tray Switch Board
28
See Fig.
28
Removing the Side (R) Assembly
29
See Fig.
29
Removing the Lifter Assembly
30
Removing the Sensor Board and SV Resistor
31
Taking out the Disc in the Play Mode
32
To Enter/Exit DVD Test Mode
34
Device Key Checksum Display
34
DVD Check Modes
34
Adjustment
34
Troubleshooting
35
Block Diagram
39
Schematic Diagrams
40
Printed Circuit Boards
54
Parts List
59
Exploded View of General Assembly and Parts List (Block No.m1)(DX-U10)
60
Exploded View of General Assembly and Parts List (Block No.m2) (DX-U8)
64
Exploded View of General Assembly and Parts List (Block No.m3) (DX-U6)
68
DVD Mechanism Assembly and Parts List (Block No.mj)
72
Electrical Parts List
78
Main Board
78
Packing Materials and Accessories Parts List (Block No.m4)(DX-U10)
98
Packing Materials and Accessories Parts List (Block No.m5)(DX-U8)
100
Packing Materials and Accessories Parts List (Block No.m6)(DX-U6)
102
