3.1.15 Removing the FL BOARD assembly and SWITCH BOARD assembly

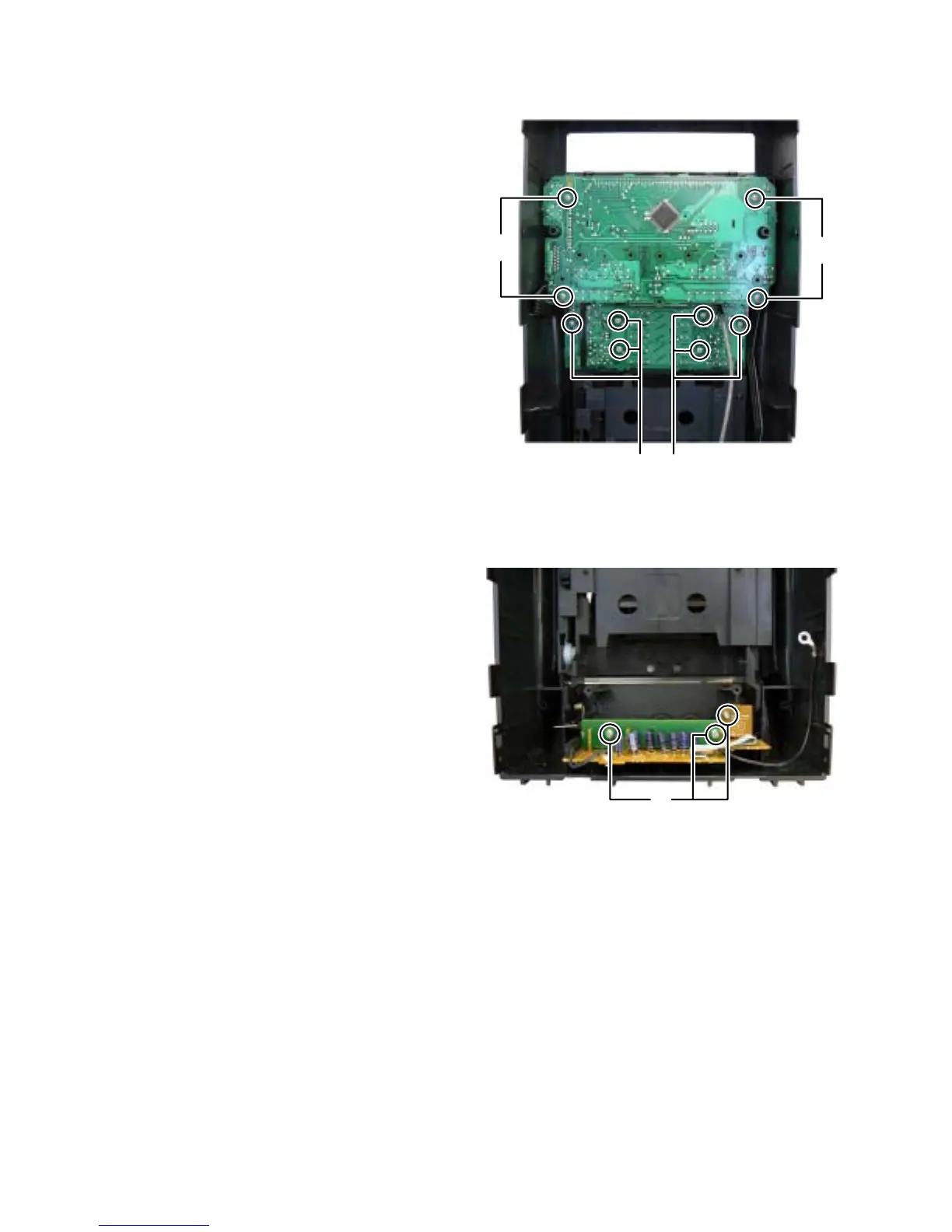

(See Fig.26)
(1) Remove the four screws V attaching the FL BOARD as-
sembly.
(2) Remove the six screws W attaching the SWITCH BOARD
assembly.
Fig.26
3.1.16 Removing the MIC BOARD assembly
(See Fig.27)
(1) Remove the two volume knobs.
(2) Remove the three screws X attaching the MIC BOARD as-
sembly.
Fig.27
V
V
WW
X
