JVC DX-U10A User Manual

1-8 (No.MB616<Rev.002>)
SECTION 3
DISASSEMBLY
3.1 Main body (Using figures are DX-U10)

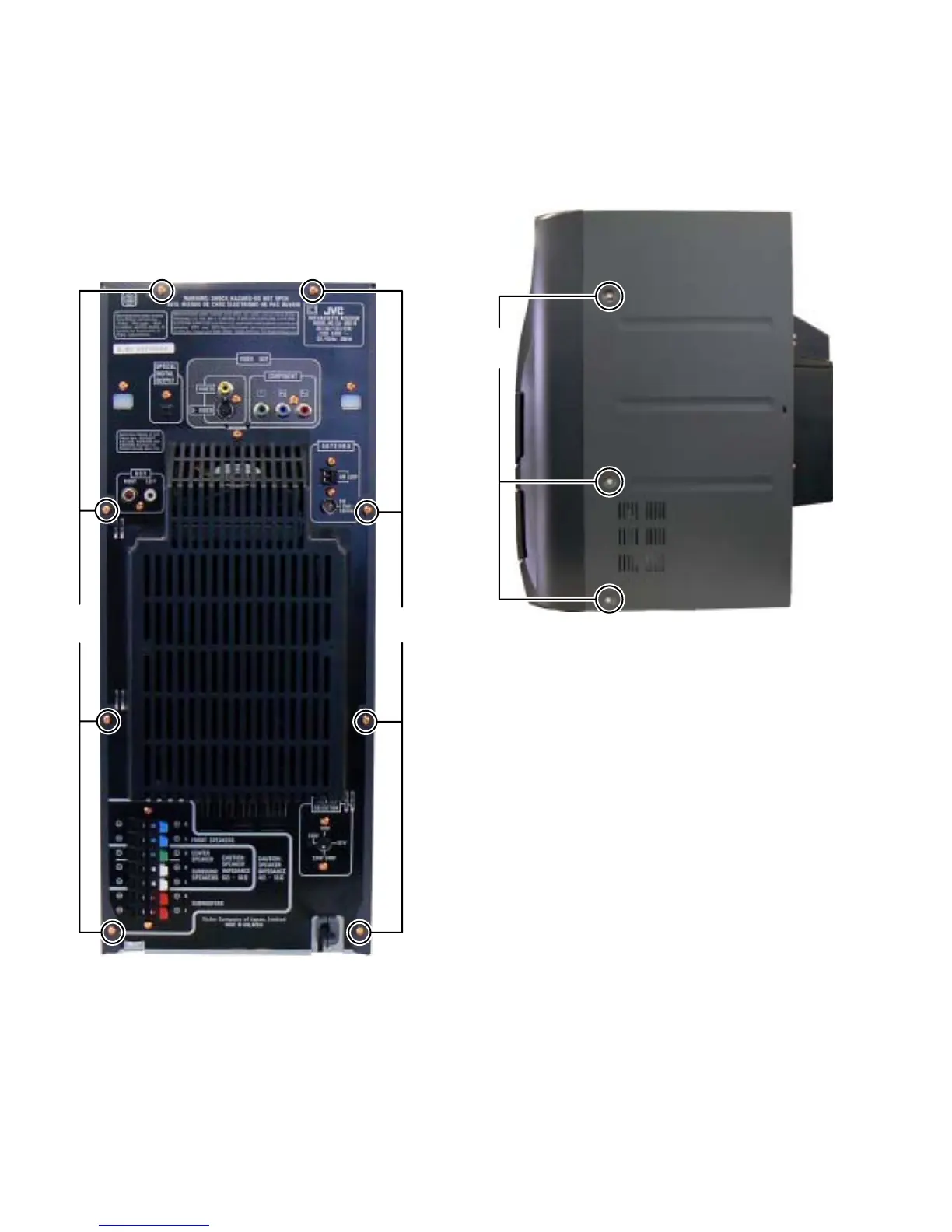

3.1.1 Removing the METAL COVER
(See Fig.1, 2)
(1) Remove the eight screws A attaching the METAL COVER.
(See Fig.1)
(2) Remove the six screws B attaching the both side of the
METAL COVER. (See Fig.2)
Fig.1
Fig.2
A
A
B
