1-28 (No.MB487)
3.3.6 Attaching the DVD pickup
(See Figs.5, 7 to 10)
• See "3.3.5 Removing the DVD pickup".
(1) Attach the guide shaft, rack arm and rack arm spring to the
DVD pickup. (See Fig.9.)
(2) Align the DVD pickup to the section j of the traverse mech-
anism assembly first, and set the both ends of the guide
shaft of the DVD pickup in the sections (g, h) of the
traverse mechanism assembly. (See Fig.8.)
Reference:
When attaching the guide shaft to the section h, attach it
under the rod spring. (See Fig.8.)
(3) Attach the guide shaft adj. spring and feed bracket. (See
Fig.7.)
(4) Remove solders from the short land sections b on the DVD
pickup after connecting the card wire to the connector on
the DVD pickup. (See Fig.5.)
(5) Turn the screw shaft gear in the direction of the arrow 1 to
move the DVD pickup fully in the direction of the arrow 2.
(See Fig.10.)

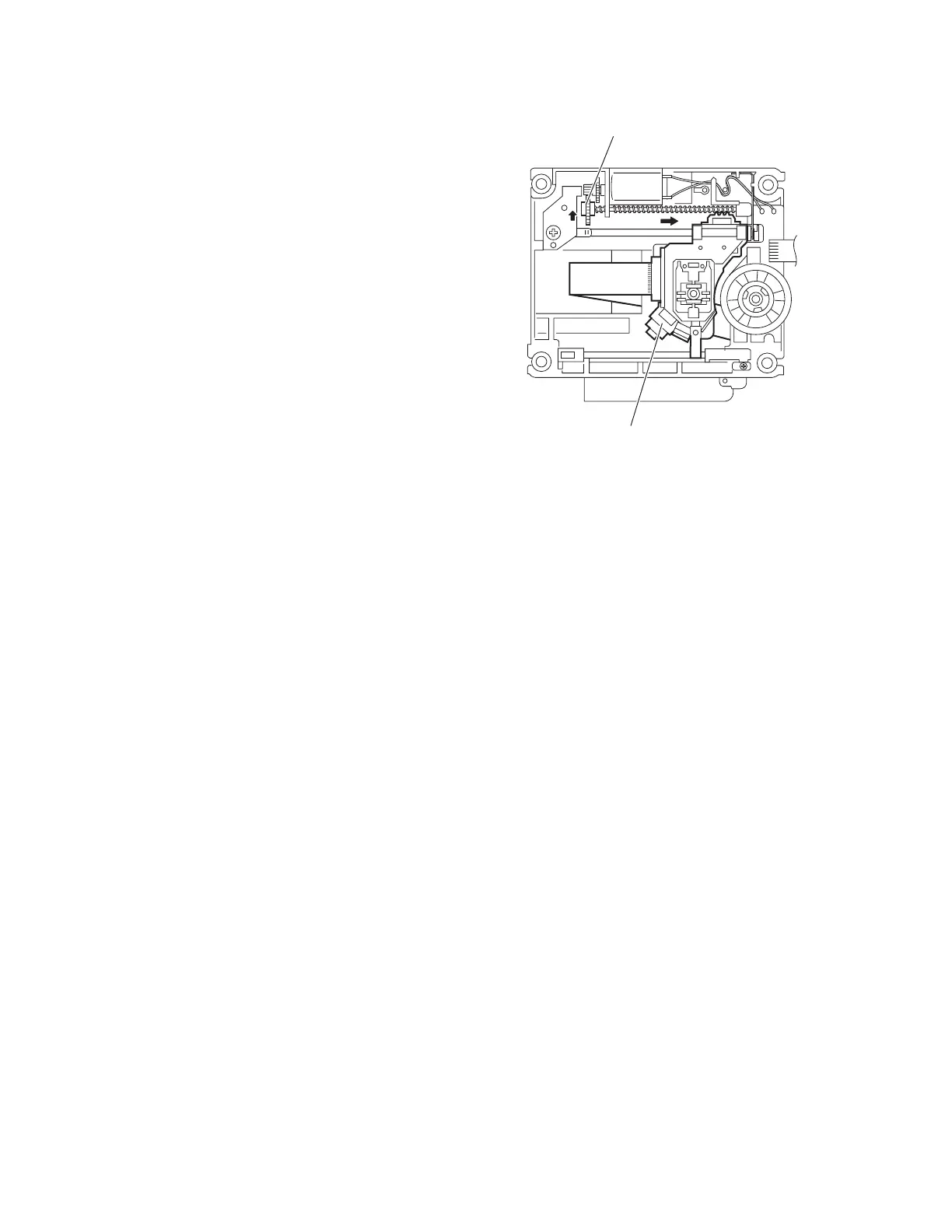

Fig.10
1
2
Screw shaft gear
DVD pickup
To Next Page
