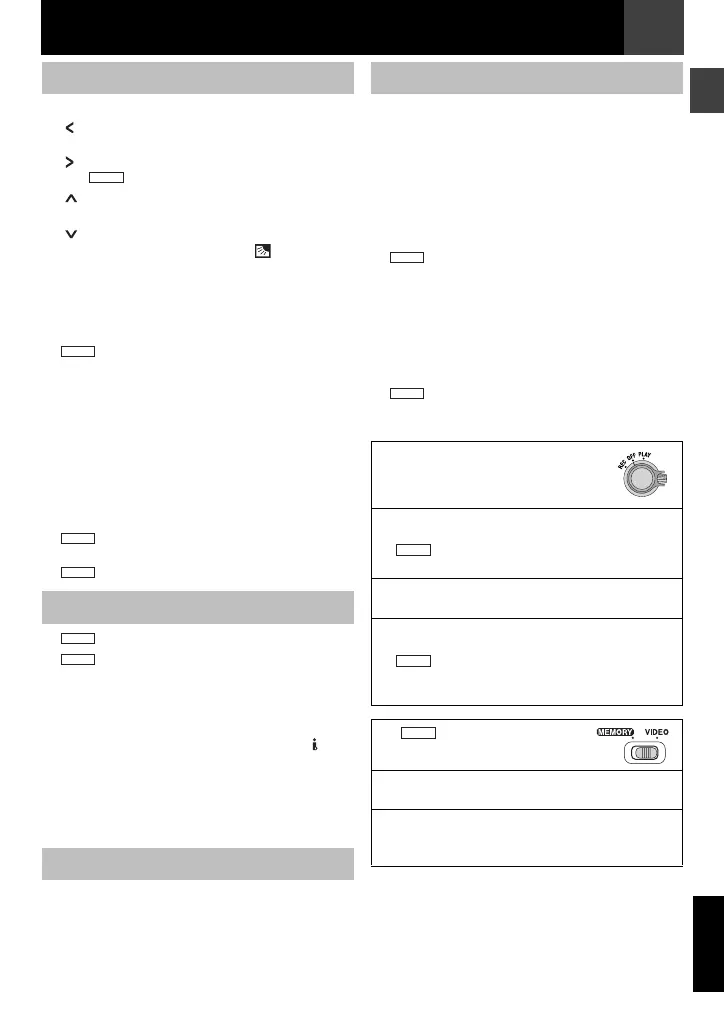

EN 15
MasterPage: Start_Right
ENGLISH
Getting Started
a
Control Lever (墌 10)
: Left / Rewind [ 3 ] (墌 23) /
Quick Review [QUICK REVIEW] (墌 21)
: Right / Fast-Forward [ 5 ] (墌 23) /
Led Light [LIGHT] (墌 37)
: Up / Play / Pause [4/9] (墌 23) /
Manual Focus [FOCUS] (墌 38)
: Down / Stop [8] (墌 23) /
Backlight Compensation (墌 39) /
Spot Exposure (墌 39)
Press down: SET
B Menu Button [MENU] (墌 31)
C Auto Button [AUTO] (墌 22)
D Data Battery Button [DATA] (墌 19)
E MEMORY/VIDEO Switch
F Recording Start/Stop Button (墌 21)
G Zoom Lever [T/W] (墌 23) /
Speaker Volume Control [VOL. +, –] (墌 23)
H Power Switch [REC, OFF, PLAY]
I Lock Button
J Cassette Open/Eject Switch [OPEN/EJECT]
(墌 20)
K Battery Release Button [BATT.] (墌 18)
L 16:9 Wide Screen Button [16:9] (墌 20) /
Blank Search Button [BLANK] (墌 24) /
Index Button [INDEX] (墌 27)
M Snapshot Button [SNAPSHOT] (墌 26, 37) /
Live Slow Button [SLOW] (墌 37)
N S-Video Output Connector [S] (墌 43)
O USB (Universal Serial Bus) Connector
(墌 45)
P Digital Video Connector [DV OUT] (i.LINK*)
(墌 44, 45)
* i.LINK refers to the IEEE1394-1995 industry
specification and extensions thereof. The logo
is used for products compliant with the i.LINK
standard.
The connectors are located beneath the cover.
Q Audio/Video Output Connector [AV] (墌 43)
R DC Input Connector [DC] (墌 18)
S POWER/CHARGE Lamp (墌 18)
T LCD Monitor (墌 14)
U Shoulder Strap Eyelet (墌 11)
V Grip Strap (墌 11)
W Camera Sensor
(Be careful not to cover this area, a sensor
necessary for shooting is built-in here)
X Stereo Microphone
Y Lens
Z Speaker (墌 23)
a LED Light (墌 37)
(Be careful not to cover this area during
shooting)
b Cassette Holder Cover (墌 20)
c Stud Hole (墌 12)
d Tripod Mounting Socket (墌 12)
e Battery Pack Mount
f Connector Cover
g Memory Card Slot
h Card Cover
i Remote Sensor (墌 13)
Controls
Connectors
Indicator
GR-D860
GR-D860
GR-D860
GR-D860
GR-D860
GR-D860
Other Parts
Power Switch Position
REC:
● To perform recording on the tape.
●
To perform recording in the memory
card.
OFF:
To switch off the camcorder.
PLAY:
● To play back a recording on the tape.
●
To display a still image stored in the
memory card or to transfer a still image
stored in the memory card to a PC.
MEMORY/VIDEO
Switch Position
VIDEO:
To record on a tape or play back a tape.
MEMORY:
To record in a memory card or access data
stored in a memory card.
GR-D860
GR-D860
Set the power switch while
pressing down the lock button.
GR-D860
GR-D860
GR-D860
GR-D820EK_GR-D860EK.book Page 15 Monday, November 19, 2007 10:15 AM
