Tape Running Indicator
(Rotates while tape is running.)
B Selected Wide Mode Indicator (墌 20)
C Live Slow Indicator (墌 37)
D Recording Speed Mode (SP/LP) (墌 33)
(only LP indicator is displayed)
E Tape Remaining Time (墌 21)
F REC: (Appears during recording.) (墌 21)
SLOW: (Appears when using Live
Slow.) (墌 37)
G I: Insert (墌 46)
9I:Insert Pause
H Selected Wipe/Fader Effect Indicator (墌 41)
I Wind Cut Indicator (墌 33)
J Time Code (墌 22, 34)
K Digital Image Stabiliser (“DIS”) (墌 32)
(only indicator is displayed)
L SOUND 12BIT/16BIT: Sound Mode
Indicator (墌 33) (Appears for approx. 5
seconds after turning on the camcorder.)
a Battery Remaining Power Indicator (墌 49)
B Operation Mode (墌 22)
A : Auto Mode
M : Manual Mode
C LED Light Indicator (墌 37)
D : Night-Scope Indicator (墌 41)
: Gain Up Mode (墌 32)
E Shutter Speed (墌 42)
F White Balance Indicator (墌 40)
G Selected Effect Indicator (墌 42)
H Selected Program AE Indicator (墌 41)
I : LCD Backlight Indicator (墌 34)
(Appears for approx. 5 seconds during the
process of switching over to indoor/outdoor
brightness.)
J Manual Focus Adjustment Indicator (墌 38)
K Date/Time (墌 19, 34)
L : Spot Exposure Control Indicator (墌 39)
: Backlight Compensation Indicator
(墌 39)
±: Exposure Adjustment Indicator (墌 38)
: Iris Lock Indicator (墌 39)
M PHOTO: (Appears when taking Snapshot.)
(墌 26, 37)
N Remaining Number Of Shots (墌 26)
(Displays the approximate remaining
number of shots that can be stored during
D.S.C. recording.)

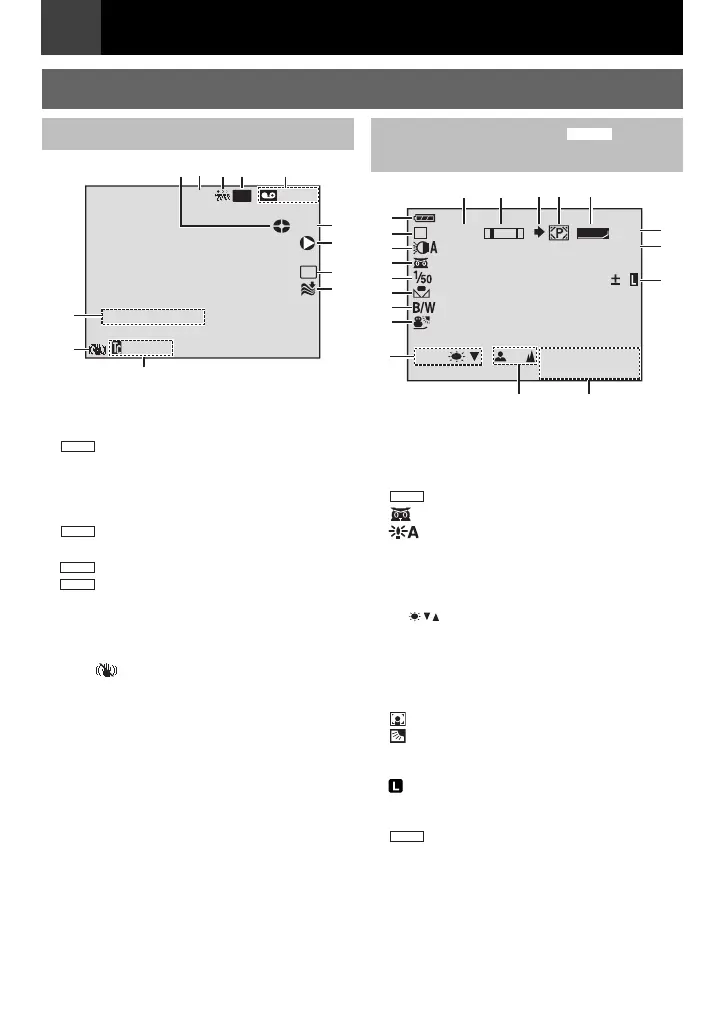

LCD Monitor Indications
