1-10

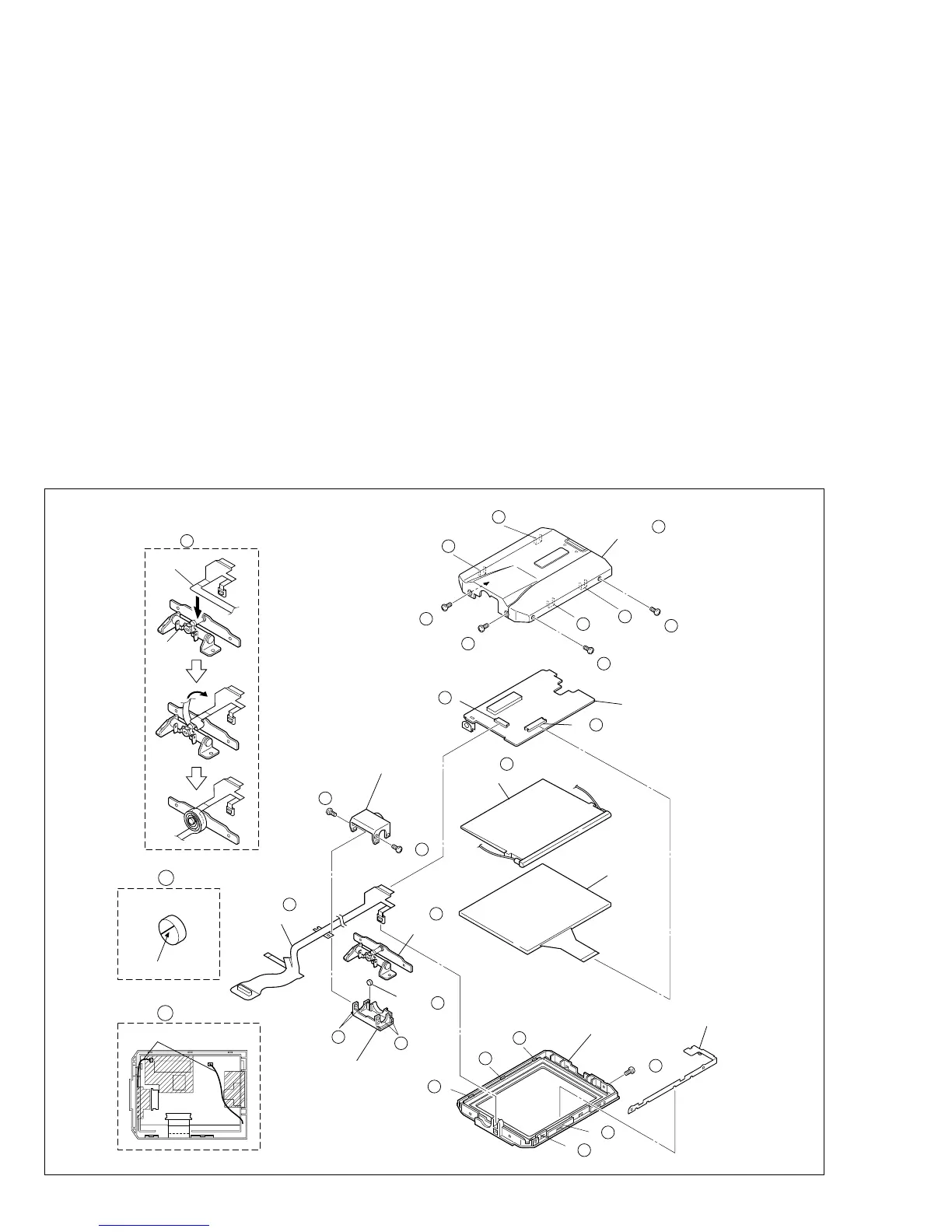

Fig. 1-6-1
1.6 DISASSEMBLY/ASSEMBLY OF THE
@
MONITOR
ASSEMBLY
1.6.1
@
Monitor Assembly and Hinge Assembly
Note:
•
Before proceeding to the work, separate the Monitor As-
sembly from the Upper Case Assembly as required.
1. Remove the four screws (1 to 4), disengage the four
hooks (L@a to L@d) in order, and take out the Monitor
Cover Assembly.
2. Unlock the connector ( @a ) and, while lifting the Hinge
Assembly, unplug and take out the FPC.
3. Remove the screw (5) and take out the bracket (MONI-
TOR CASE).
4. Unplug the FPC from the connector ( @b ) and take out
the Monitor Board Assembly and the backlight.
5. Remove the LCD module by disengaging the five hooks
(L@e to L@j).
6. Remove the two screws (6, 7) and take out the hinge
covers (U, L) by disengaging the four hooks (L@k, L@l)
at both sides of each of the hinge covers.
7. Remove the FPC Assembly from the Hinge Assembly.
Note
@
a:
Be careful not to damage the FPC or the connec-
tor when removing the Monitor Cover Assembly.
Note
@
b:
Be careful not to damage the parts when remov-
ing or mounting the Hinge Assembly.
Note
@
c:
To unplug the FPC, release only the lock of the
connector and remove the FPC together with the
Hinge Assembly.
Note
@
d:
As the backlight is soldered at two points on the
Monitor Board Assembly, the solder should be re-
moved when disassembling the backlight as a sin-
gle part.
Note
@
e:
Take care when handling the FPC.
Note
@
f:
Be careful not to lose the magnets and attach
them in the correct orientation.
Note
@
g:
When mounting the FPC Assembly, wrap it around
the Hinge Assembly by 3-1/2 turns.
a
BACK LIGHT
LCD MODULE
BRACKET
(MONI CASE)
MAGNETS
NOTE
12
f
FPC ASSY
MARKING
MONITOR BOARD ASSY
MONITOR COVER ASSY
1
(S a)
12
2
(S a)
12
12
3
(S b)
12
6
(S d)
12
7
(S d)
12
5
(S c)
12
4
(S b)
12
(L c)
12
(L d)
12
(L b)
12
(L a)
12
(L f)
12
(L e)
12
WIRE
(L g)
12
(L h)
12
(L j)
12
(L l)
12
(L k)
12
NOTE e,g
12
NOTE c,e
12
NOTE d
12
NOTE f
12
NOTE d
12
NOTE b
12
NOTE a
12
FPC ASSY
HINGE
ASSY
HINGE COVER (L)
HINGE COVER (U)
MONITOR CASE ASSY
HINGE ASSY
CN a
12
CN b
∗
: 0.118 N
•
m (1.2kgf
•
cm)
∗
∗
To Next Page
