TAPE PLAYBACK

(cont.)

Connections

These are some basic types of connections. When making the connections, refer also to your VCR and TV

instruction manuals.

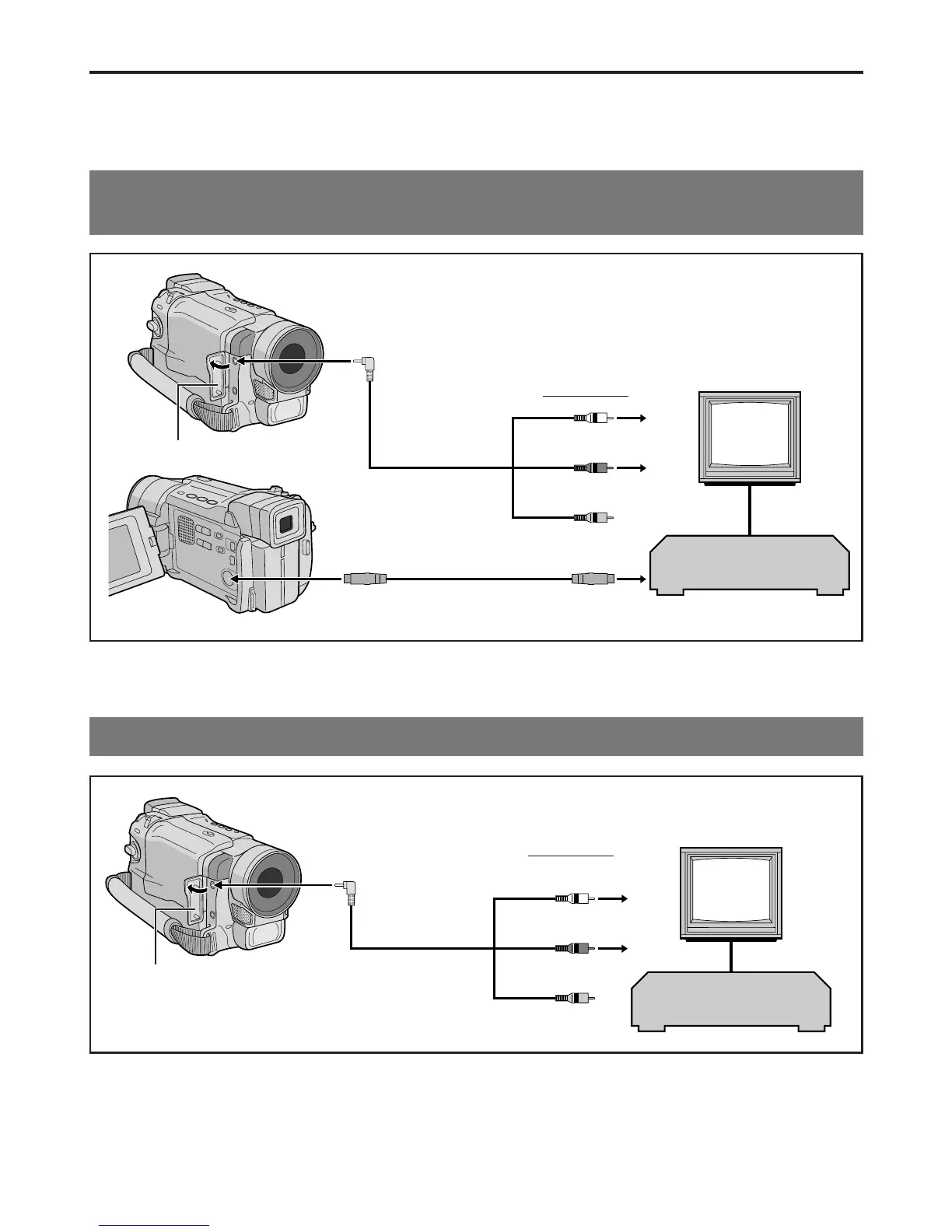

A. Connection to a TV or VCR equipped with an S-VIDEO IN and A/V input

connectors

To S-VIDEO

To AV

Audio/Video cable

(provided)

White to

AUDIO L IN**

Red to

AUDIO R IN**

To S-VIDEO IN

To TV or VCR

S-Video cable

(optional)

VCR

Connector cover*

Yellow:

Not connected

* When connecting the cables, open this cover.

** The Audio cable is not required for watching still images only.

B. Connection to a TV or VCR equipped only with A/V input connectors
