(1) Composite tab

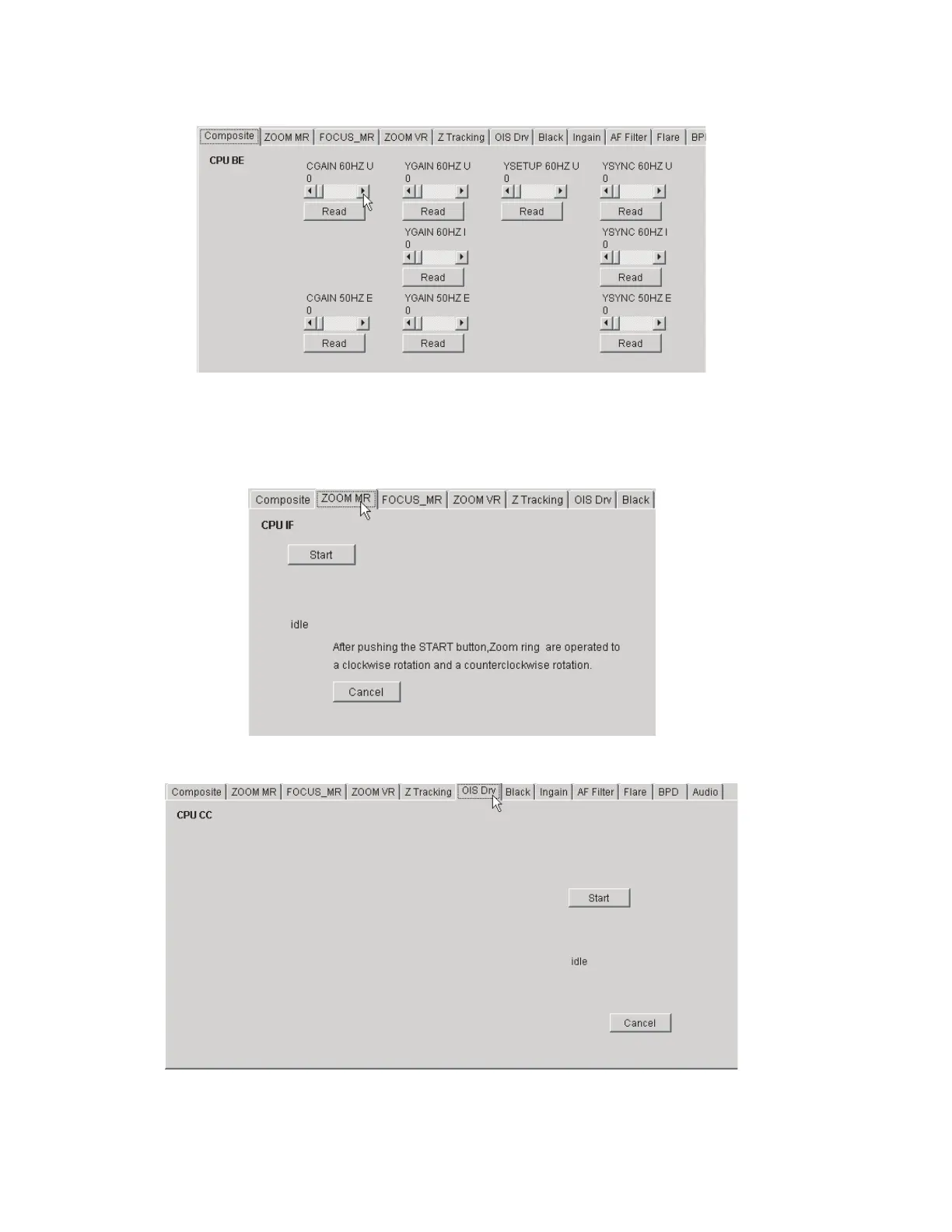

This is used for Composite signal adjustment. By operating each slide bar, each value can be changed, and by pressing the
[READ] button, the current preset value is acquirable.
(2) ZOOM MR Tab
This is used for Zoom ring adjustment. After pressing the [START] button, adjust by operating the Zoom ring, according to the
instruction.
• For FOCUS MR tab, ZOOM VR tab, and Z Tracking tab, adjust each article according to the instruction respectively. FOCUS
MR tab for Focus ring adjustment, ZOOM VR tab for Zoom potentiometer adjustment, and Z Tracking tab for Zoom tracking
adjustment.
(3) OIS Drv tab
This is used for OIS adjustment. After pressing the [START] button, adjust by rocking a camera, according to the instruction.
To Next Page
