3.2.10 Removing the spindle motor

(See Fig.20)

• Remove the mechanism control board, top cover, mechanism

section and clamper unit.

(1) From the top side of the mechanism section, remove the

T.table assembly and washer from the spindle motor.

(2) Remove the two screws H attaching the spindle motor.

(3) Take out the spindle motor from the bottom side of the

mechanism section.

Caution:

Perform adjustment when reattaching the spindle motor.

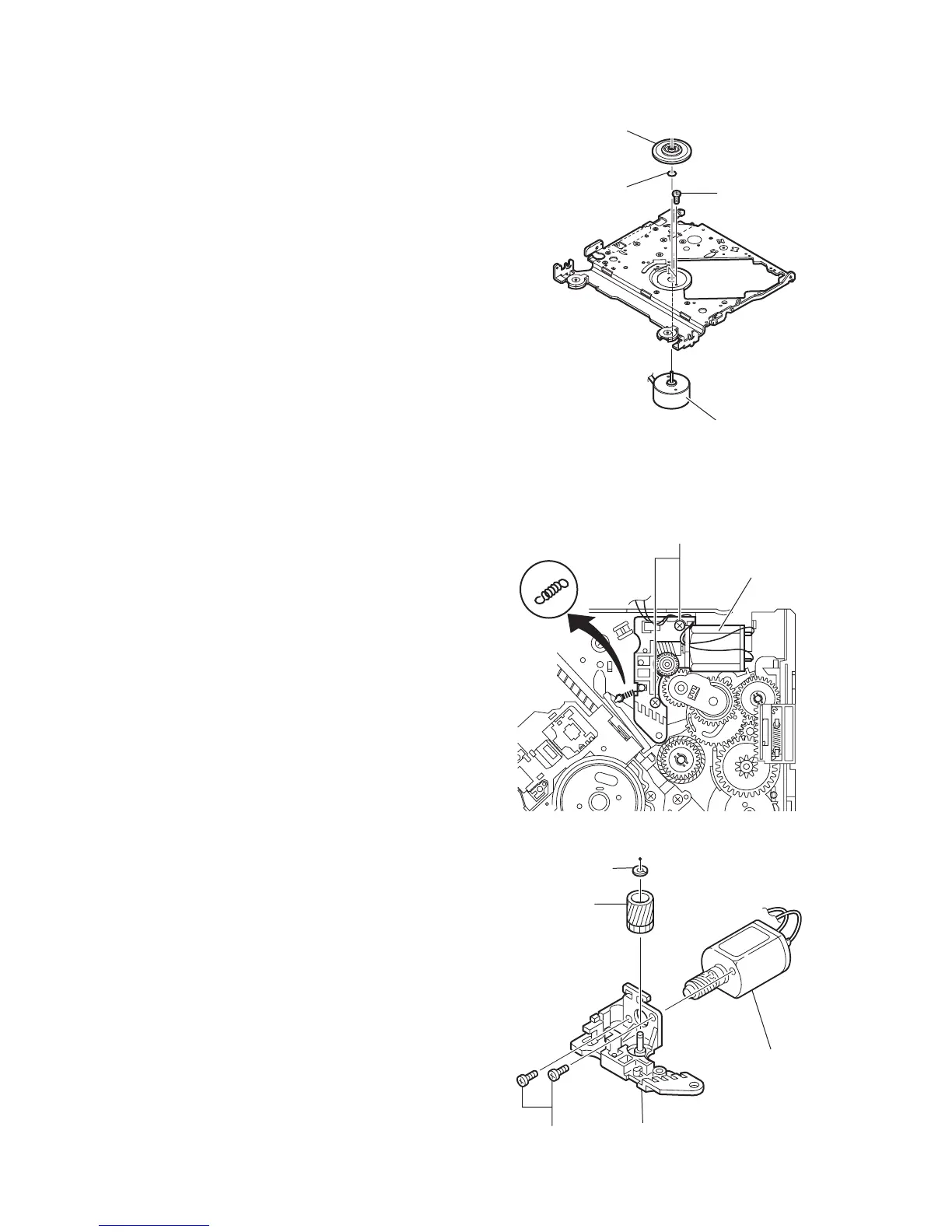

Fig.20

3.2.11 Removing the feed motor

(See Figs.21 and 22)

• Remove the mechanism control board.

(1) From the bottom side of the CD mechanism assembly, re-

move the feed TRI. spring. (See Fig.21.)

(2) Remove the two screws J attaching the feed motor assem-

bly. (See Fig.21.)

(3) Remove the slit washer from the motor H. assembly and

pull out the worm wheel. (See Fig.22.)

(4) Remove the two screws K attaching the feed motor. (See

Fig.22.)

Fig.21

Fig.22

Washer

T. table assembly

Spindle moto

Feed motor assembly

Feed TRI. spring

Feed moto

Motor H. assembly

Worm wheel

Slit washer
