JVC KD-AR5500 Service Manual

1-6 (No.MA140)
SECTION 3
DISASSEMBLY
3.1 Main body section
3.1.1 Removing the front panel assembly
(See Fig.1)
(1) Push the detach button in the lower right part of the front
panel assembly.
(2) Remove the front panel assembly.

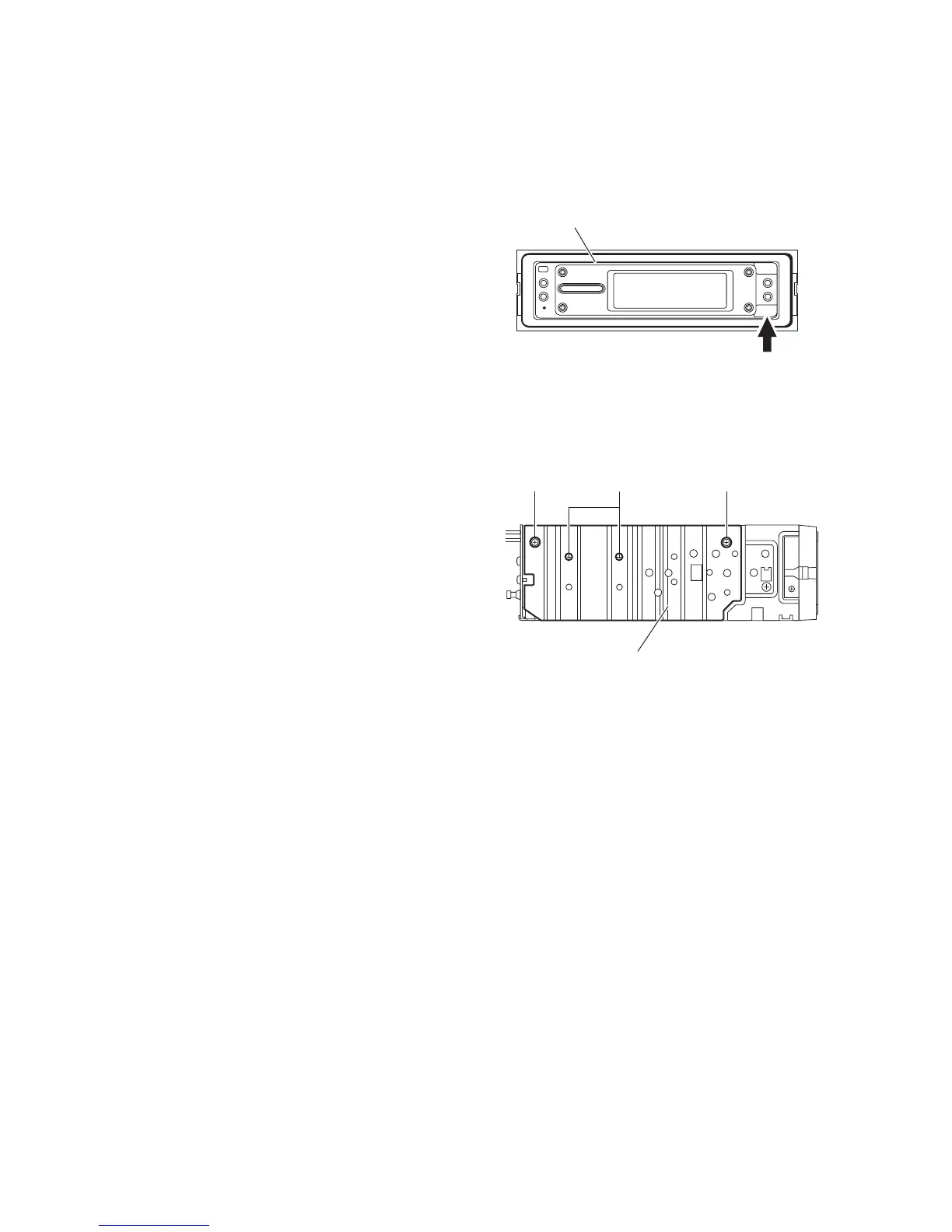

Fig.1
3.1.2 Removing the heat sink
(See Fig.2)
Reference:
Remove the front panel assembly as required.
(1) From the left side of the main body, remove the two screws
A and three screws B attaching the heat sink.
(2) Remove the heat sink from the main body.
Fig.2
Front panel assembly
Detach button
Heat sink
AAB
