Setting Up
40
AV Setup
You can set AV parameters.
1
Press the [FNC] button.
 FUNCTION screen appears.
2
Touch [ ].
 SETUP screen appears.
3

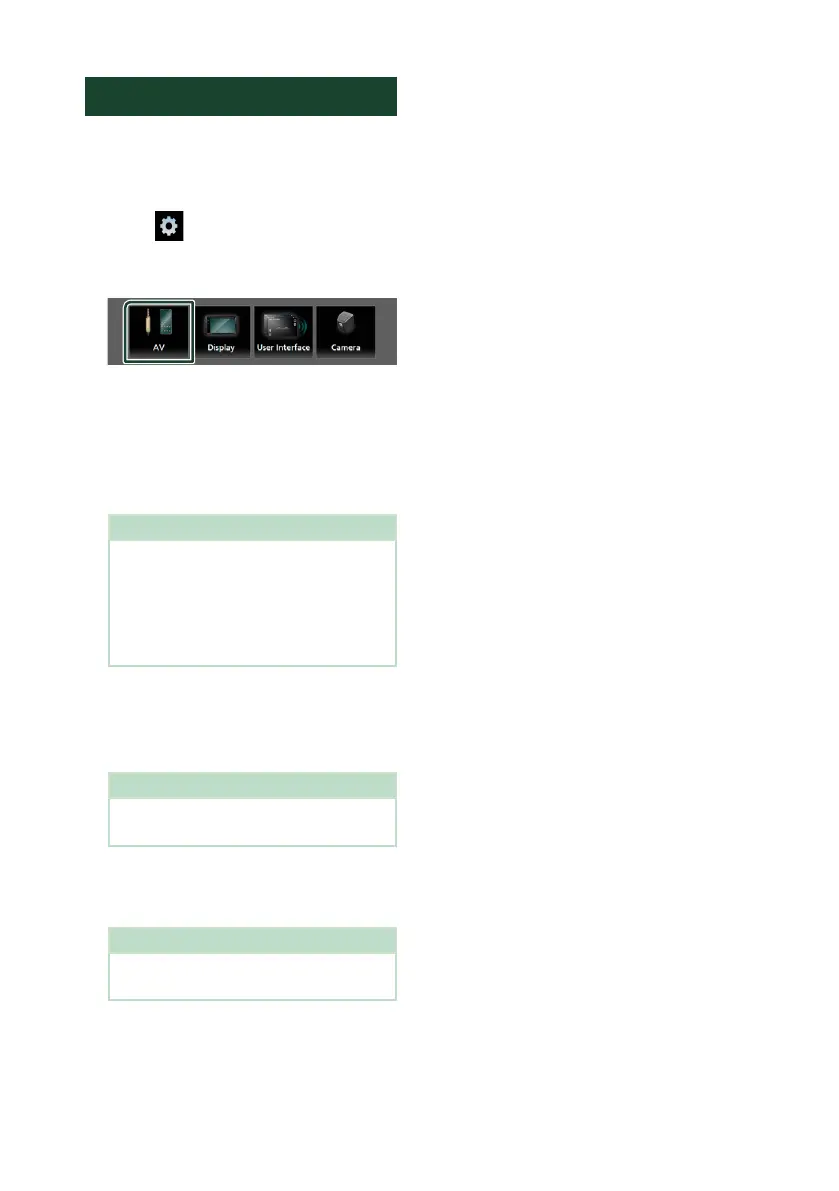

Touch [AV].
 AV screen appears.
4
Set each item as follows.
■ [AV-OUT]
Specify whether to output the current source
signal from the VIDEO OUT terminal.
“[ON]”/ “[OFF]” (Default)
NOTE
• Images can be output only from the AV IN
and USB (video file) source.
• If display of the rear view camera image is
selected when the AV-IN source is being
played, no image is output from the VIDEO
OUT terminal.
■ [CarPlay Sidebar]
Select the position of the control bar (left or
right) shown on the touch panel.
“[Left]” (Default)/ “[Right]”
NOTE
• The setting is available when an iPhone is
disconnected.
■ [AV Color Adjust]
You can adjust image quality in video screen.
(P.37)
NOTE
• Adjusting items are different depending on
the current source.
