JVC KW-M565DBT User Manual

Connection/Installation
46

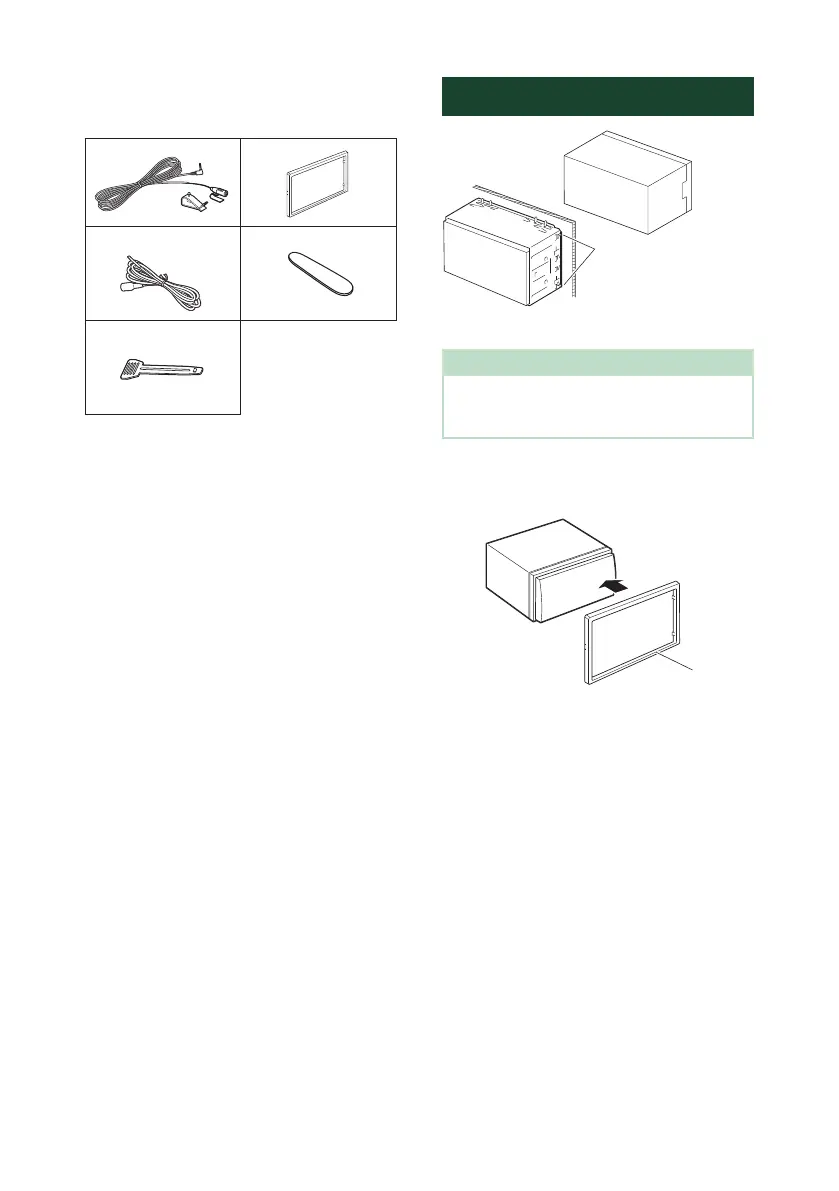

Ñ Supplied accessories for
installation
1
(3 m)
x1
2
x1
3
(2 m)
x1
4
x1
5
x2
Ñ Installation procedure
1) To prevent a short circuit, remove the key
from the ignition and disconnect the ¤
terminal of the battery.
2) Make the proper input and output wire
connections for each unit.
3) Connect the ISO connector to the unit.
4) Install the unit in your car.
5) Reconnect the ¤ terminal of the battery.
6) Press the reset button.
Installing the unit
Bend the tabs of the
mounting sleeve with
a screwdriver or similar
utensil and attach it in
place.
NOTE
• Make sure that the unit is installed securely in
place. If the unit is unstable, it may malfunction
(eg, the sound may skip).
Ñ Trim plate
1) Attach accessory 2 to the unit.
2
!B5H-0357-06_JVC_KWM_E_En.indb 46 2020/08/21 13:43

JVC KW-M565DBT Specifications

General

AM band range	531 - 1.611 kHz
FM band range	87.5 - 108 MHz
LW band range	153 - 279 kHz
Supported radio bands	AM, DAB+, FM, LW, MW
Radio Data System (RDS)	Yes
Preset stations quantity	20
DIN size	2 DIN
Output power	200 W
Product color	Black
Disc types supported	-
Audio output channels	- channels
Equalizer bands quantity	13
Maximum power per channel	- W
USB port position	Rear
Bluetooth profiles	HFP, PBAP
USB ports quantity	1
Bluetooth functions	Audiostreaming, Handsfree calling
Audio formats supported	AAC, FLAC, MP3, SBC, WAV, WMA, WMV
Video formats supported	H.264, MPEG1, MPEG2, MPEG4
Display diagonal	6.8 \
Display resolution	640 x 480 pixels

Weight and Dimensions

Weight	1300 g
