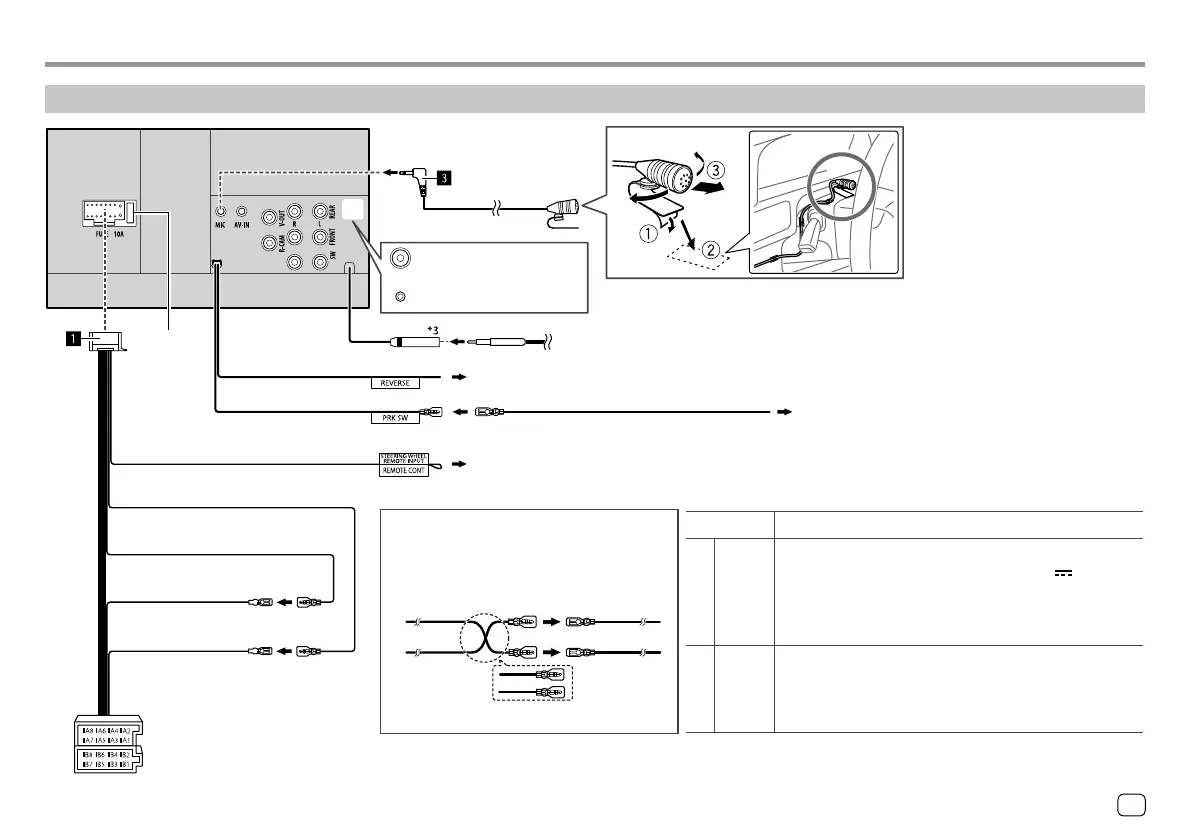

Connecting the ISO connectors
You may need to modify the wiring of the supplied
wiring harness as illustrated below.
Installation and ConnectionInstallation and Connection
Wiring connection
10 A fuse
Connect the aerial cord to the aerial input terminal
Connector A
Connector B
Default wiring
Purple with white stripe
Light green
Light blue with yellow stripe
Yellow (Battery wire)
Red (Ignition wire)
Red (A7)
Red (A7)
VehicleUnit
Red
(Ignition wire)
Yellow (A4)
Yellow (A4)
Yellow
(Battery wire)
To the car’s reverse lamp harness when using the optional rear view camera
To the OE remote adapter (not supplied) which is compatible with your car
(If no connections are made, do not let the cable come out from the tab.)
Extension wire (
ø
)
To the car’s parking brake detection switch harness
(For best safety, be sure to connect the parking sensor.)
*1 Only for KW-V250BT: Connect the
aerial cord.
*2 Only for KW-V255DBT: Connect the
DAB aerial (separately purchased).
*3 Only for KW-V255DBT.
*4 For 3-way speaker system
connection, see page 44.
Pin Color and Function
Connector A
A4
A5
A6
A7
A8
Yellow
Blue/White
Orange/White
Red
Black
: Battery
: Power control (12 V 350 mA)
: Dimmer
: Ignition (ACC)
: Ground connection
Connector B
B1/B2
B3/B4
B5/B6
B7/B8
Purple
]
/ Purple/Black
[
Gray
]
/ Gray/Black
[
White
]
/ White/Black
[
Green
]
/ Green/Black
[
: Right speaker (Rear/Tweeter*4)
: Right speaker (Front/Mid Range*4)
: Left speaker (Front/Mid Range*4)
: Left speaker (Rear/Tweeter*4)
DAB aerial input jack*2
Aerial input jack*1
- - - - - (Or) - - - - -
43ENGLISH
00_KWV_2019ST_EQ_EN.indb 4300_KWV_2019ST_EQ_EN.indb 43 29/6/2018 11:57:06 AM29/6/2018 11:57:06 AM
