Maintenance
Cleaning the unit
• Do not use any solvent (for example, thinner,
benzine, etc.), detergent, or insecticide. This may
damage the monitor or the unit.
• Gently wipe the panel with a soft, dry cloth.
Handling discs
• Do not touch the recording surface of the disc.
• Do not stick tape etc. on the disc, or use a disc with
tape stuck on it.
• Do not use any accessories for the disc.
• Clean from the center of the disc and move outward.
• Clean the disc with a dry silicone or soft cloth. Do not
use any solvents.
• When removing discs from this unit, pull them out
horizontally.
• Remove burrs from the center hole and disc edge
before inserting a disc.
More information
About playable files
Audio files
• This unit can play back the following files with
following codec and extension code:
– For disc: MP3(.mp3), WMA(.wma), WAV(.wav),
AAC(.m4a)
– For USB mass storage class device: MP3(.mp3),
WMA(.wma), WAV(.wav), AAC(.aac, .m4a),
FLAC(.flac)
• This unit can play back files that meet the conditions
below:
– Bit rate:
MP3: 8 kbps – 320 kbps
WMA: For disc: 5 kbps – 320 kbps
For USB : 32 kbps – 192 kbps
AAC: 16 kbps – 320 kbps
– Sampling frequency:
MP3: 16 kHz – 48 kHz
WMA: 8 kHz – 48 kHz
WAV: 44.1 kHz
AAC: 32 kHz – 48 kHz
FLAC: 8 kHz – 96 kHz
– Files recorded in VBR (variable bit rate), and have a
discrepancy in elapsed time indication
• This unit can show or display the following:
– Tag:
MP3: ID3 Tag (version 1.0/1.1/2.2/2.3/2.4)
WMA Tag
WAV Tag
AAC Tag
FLAC Tag
– Jacket picture:
Picture size: 32 × 32 to 1 232 × 672 resolution
Data size: Less than 500 KB
File type: JPEG
• This unit cannot play back the following files:
– MP3 files encoded with MP3i and MP3 PRO format.
– MP3 files encoded with Layer 1/2.
– WMA files encoded with lossless, professional, and
voice format.
– WMA files which are not based upon Windows
Media® Audio.

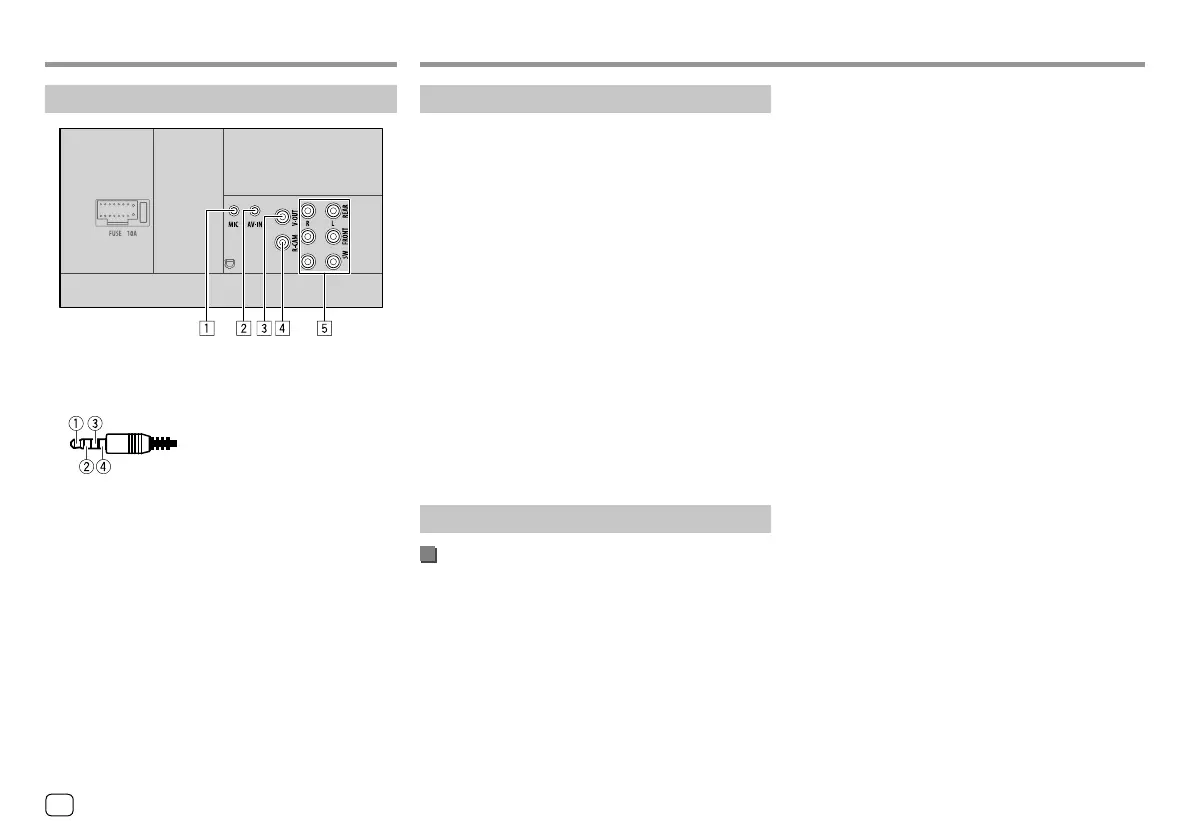

Connecting external components
1 Microphone input (MIC) (Page 43)
2 Audio video input (AV-IN)
Connect the following type of 4-pole mini plug:
1
Left audio
2
Right audio
3
Ground
4
Composite video
3 Video output (V-OUT)
4 Rear view camera input (R-CAM)
5 Output terminals*
• Left output (White)
• Right output (Red)
REAR: Rear speaker preouts
FRONT: Front speaker preouts
SW: Subwoofer preouts
For 3-way crossover:
REAR: Tweeter preouts
FRONT: Mid range speaker preouts
SW: Woofer preouts
* When connecting an external amplifier, connect its ground wire
to the chassis of the car; otherwise the unit may be damaged.
