SCART
SPDIF
Coax.OUT
VGA
ANT.
HDMI 1
(ARC)
HDMI 2
HDMI 3
LAN

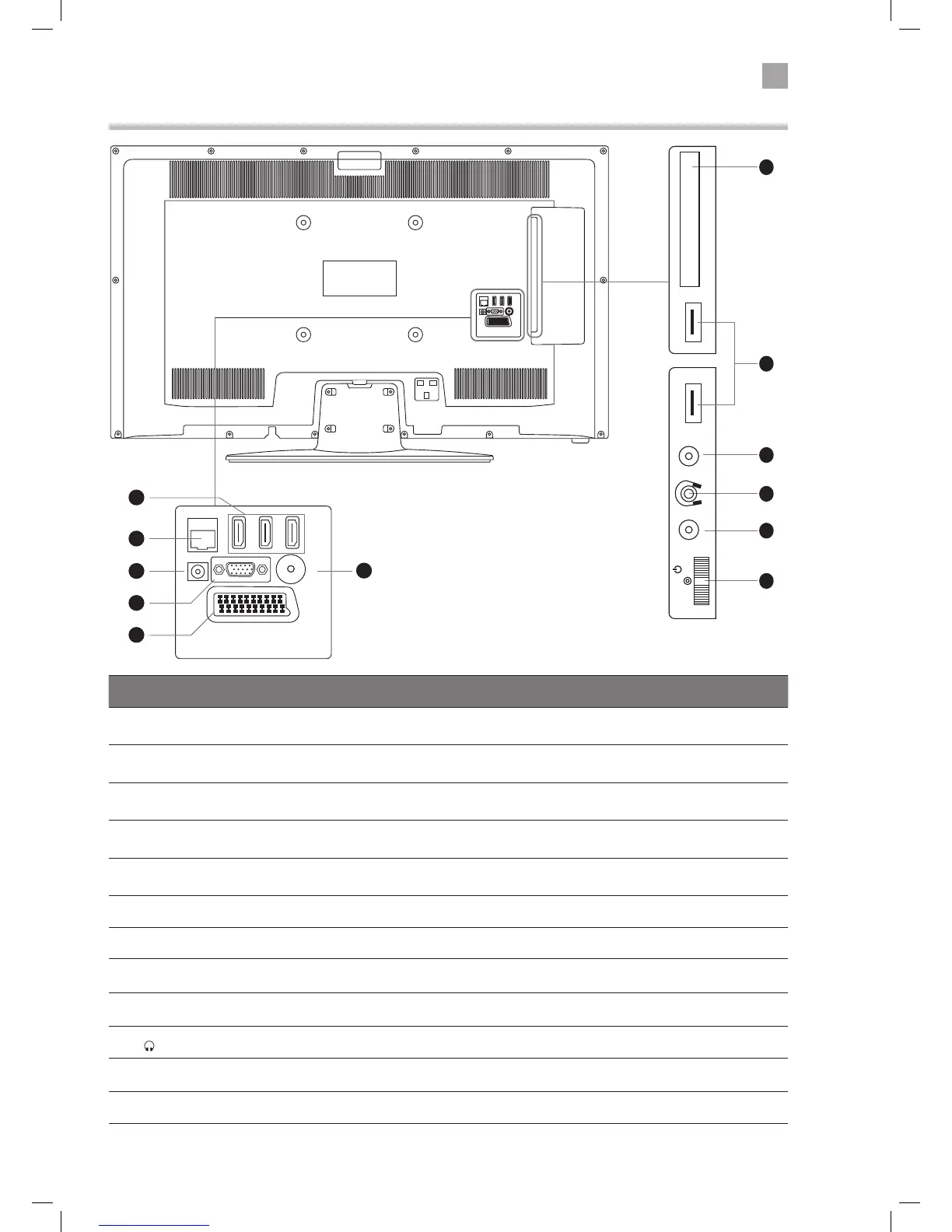

Rear View and Sockets
SCART
SPDIF
Coax.OUT
VGA
ANT.
HDMI 1
(ARC)
HDMI 2
HDMI 3
LAN
3
4
5
2
1
6
7
8
9
10
11
12
Item Description
1 HDMI 1 (ARC),2 & 3
Connects to a High-Definition (HD) signal output device, such as a set-top box, blu-ray
disc player or AV receiver.
2 LAN Connects to the an internet router for smart tv features.
3 SPDIF COAX audio out (Digital) - Connects to an audio device via a coax cable.
4 VGA Connects to a computer or other devices with a VGA interface.
5 SCART (S-Video)
Connects to a VCR, DVD Player, or other AV device with a SCART output socket.
Select SCART 1 (S-VIDEO) when connecting to a device using S-VIDEO.
6 ANT Connects to the aerial socket on the wall with the RF coaxial cable.
7 COMMON INTERFACE Allows the insertion of a Common Access Module.
8 USB
Allows the insertion of a USB storage device to play video, audio, photo and text files
(USB mode) and record DTV programmes on to a USB storage device.
9 SIDE AV
Connects to the Composite VIDEO and AUDIO (L/R) output sockets on external video
devices.
10
Connects to the headphones.
11
YPbPr
Connects to a DVD player, Digital Set-Top-Box, or other AV devices with component
(YPbPr) video and audio output sockets.
12 MULTI FUNCTION SWITCH Switches the TV into standby and on. Selects modes (channel,volume, and source).
COMMON INTERFACE
USB
5Vdc
Max. 500mA
USB
5Vdc
Max. 500mA
SIDE AVYPbPr
MODE - / I
- +
