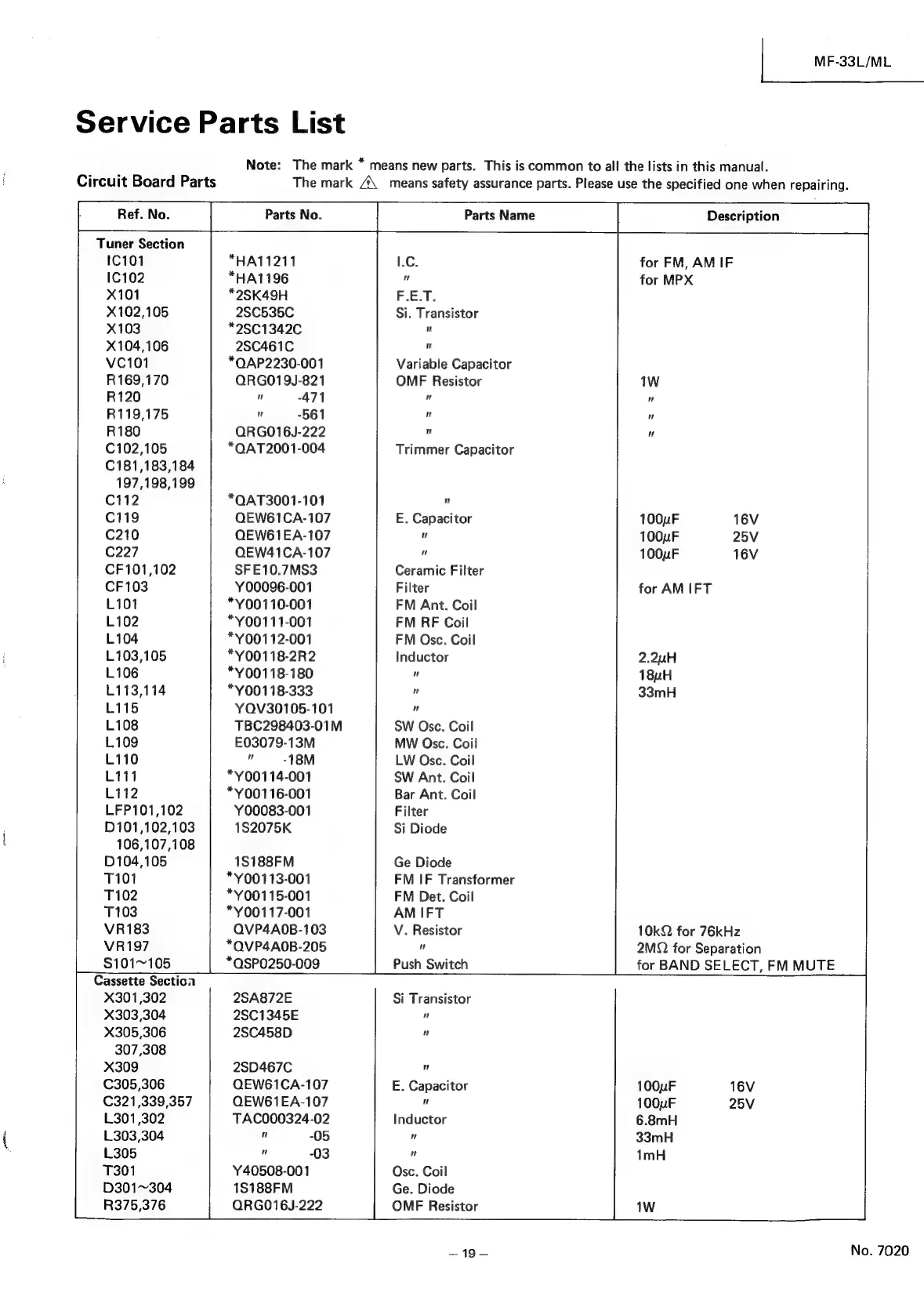

| MF-33L/ML
Service Parts List
Note: The mark * means new parts. This is common to all the lists in this manual.
Circuit Board Parts The mark 4\ means safety assurance parts. Please use the specified one when repairing.
a
Tuner Section
C101 *HA11211 1.C. for FM, AM IF
1C102 *HA1196 ” for MPX
X101 *2SK49H F.E.T.
X102,105 2SC535C Si. Transistor
X103 *2SC1342C "
X104,106 2SC461C ”
Vvc101 *QAP2230-001 Variable Capacitor
R169,170 QRGO019J-821 OMF Resistor 1W
R120 " -471 " "
R119,175 " -561 ” ”
R180 QRGO16J-222 ” "
C102,105 *QAT2001-004 Trimmer Capacitor
C181,183,184
197,198,199
C112 *QAT3001-101 ”
C119 QEW61CA-107 E. Capacitor 100uF 16V
C210 QEW61EA-107 ” 100uF 25V
C227 QEW41CA-107 ” 100uF 16V
CF101,102 SFE10.7MS3 Ceramic Filter
CF103 Y00096-001 Filter for AM IFT
L101 *Y00110-001 FM Ant. Coil
L102 *Y00111-001 FM RF Coil
L104 *Y00112-001 FM Osc. Coil
L103,105 *Y00118-2R2 Inductor 2.2uH
L106 *Y00118-180 " 18uH
L113,114 *Y00118-333 ” 33mH
L115 YQV30105-101 ”
L108 TBC298403-01M SW Osc. Coil
L109 E03079-13M MW Osc. Coil
L110 tt. -18M LW Osc. Coil
L111 *Y00114-001 SW Ant. Coil
L112 *Y00116-001 Bar Ant. Coil
LFP101,102 Y00083-001 Filter
D101,102,103 1$2075K Si Diode
106,107,108
D104,105 1S188FM Ge Diode
T101 *Y00113-001 FM IF Transformer
T102 *Y00115-001 FM Det. Coil
T103 *Y00117-001 AM IFT
VR183 QVP4A0B-103 V. Resistor 10kQ for 76kHz
VR197 *QVP4A0B-205 " 2MQ. for Separation
$101~105 *QSP0250-009 Push Switch for BAND SELECT, FM MUTE
Cassette Secticn
X301,302 2SA872E Si Transistor
X303,304 28C1345E "
X305,306 2SC458D ”
307,308
X309 2SD467C ”
C305,306 QEW61CA-107 E. Capacitor
C321,339,357 QEW61EA-107 ”
L301,302 TAC000324-02 Inductor
L303,304 ” -05 ”
1305 ” -03 ”
T301 Y40508-001 Osc. Coil
D301~304 1S188FM Ge. Diode
R375,376 QRGO016J-222 OMF Resistor
