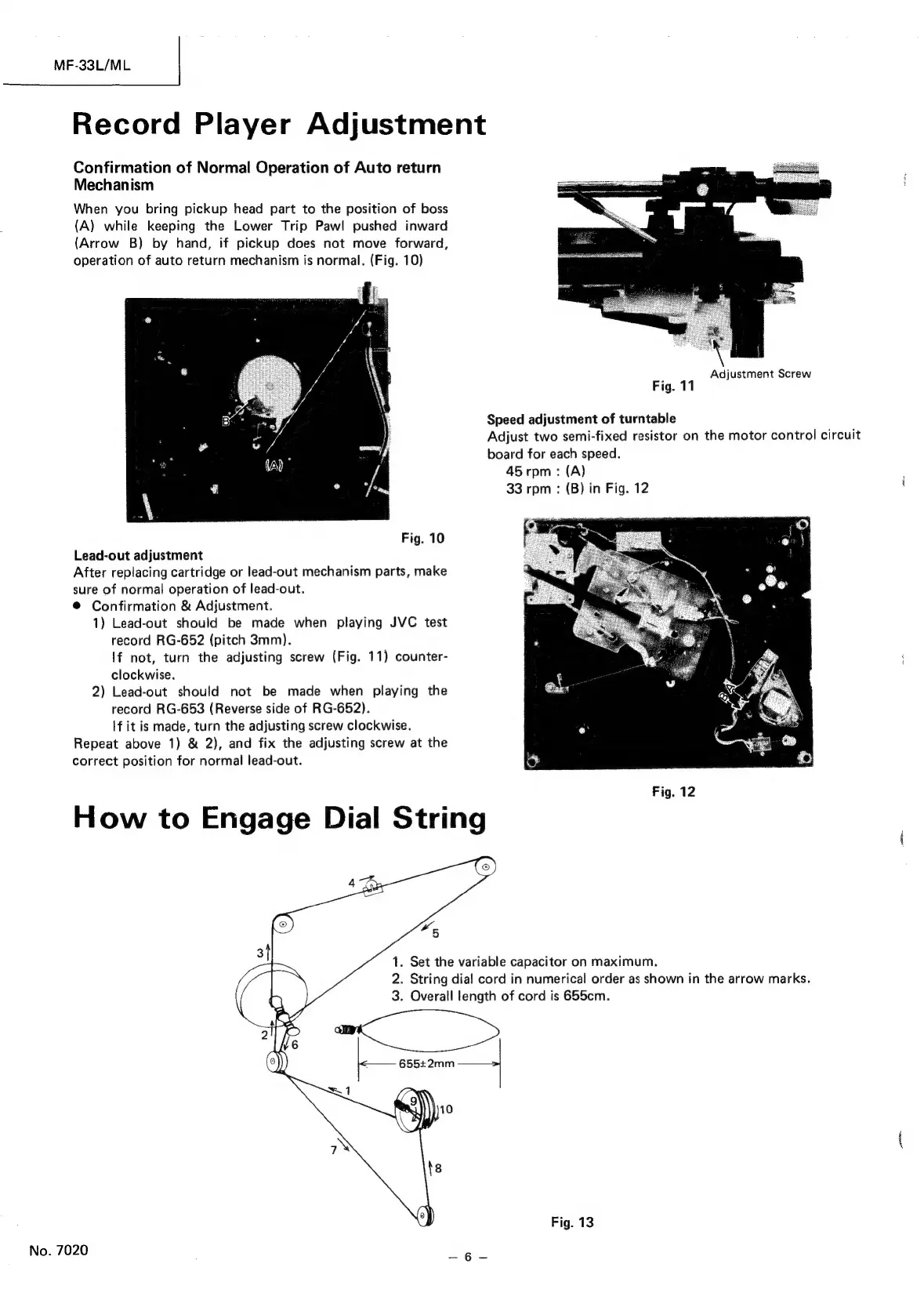

MF-33L/ML |
Record Player Adjustment
Confirmation of Normal Operation of Auto return
Mechanism
When you bring pickup head part to the position of boss
(A) while keeping the Lower Trip Pawl pushed inward
(Arrow B) by hand, if pickup does not move forward,
operation of auto return mechanism is normal. (Fig. 10)
Adjustment Screw
Fig. 11
Speed adjustment of turntable
Adjust two semi-fixed resistor on the motor control circuit
board for each speed.
45 rpm : (A)
33 rpm : (B) in Fig. 12
Fig. 10
Lead-out adjustment
After replacing cartridge or lead-out mechanism parts, make
sure of normal operation of lead-out.
® Confirmation & Adjustment.
1) Lead-out should be made when playing JVC test
record RG-652 (pitch 3mm).
1f not, turn the adjusting screw (Fig. 11) counter-
clockwise.
2) Lead-out should not be made when playing the
record RG-653 (Reverse side of RG-652).
If it is made, turn the adjusting screw clockwise.
Repeat above 1) & 2), and fix the adjusting screw at the
correct position for normal lead-out.
Fig. 12
How to Engage Dial String
1. Set the variable capacitor on maximum.
2. String dial cord in numerical order as shown in the arrow marks.
3. Overall length of cord is 655cm.
Fig. 13
