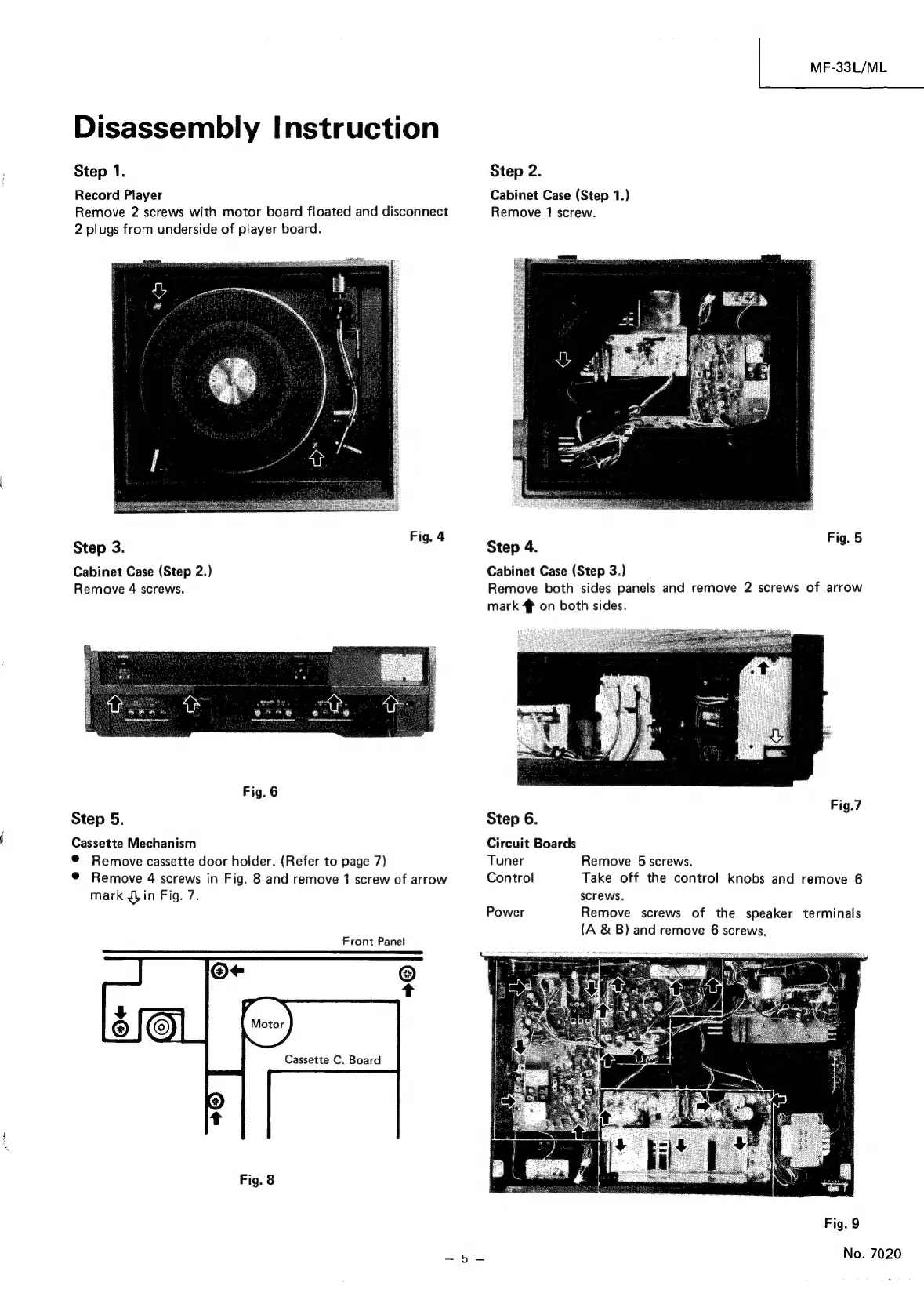

Disassembly Instruction
Step 1.
Record Player
Remove 2 screws with motor board floated and disconnect
2 plugs from underside of player board.
U
Fig. 4
Step 3. "
Cabinet Case (Step 2.)
Remove 4 screws.
Fig. 6
Step 5.
Cassette Mechanism
@ Remove cassette door holder. (Refer to page 7)
© Remove 4 screws in Fig. 8 and remove 1 screw of arrow
mark Jin Fig. 7.
Front Panel
MF-33L/ML
Step 2.
Cabinet Case (Step 1.)
Remove 1 screw.
Fig.
Step 4. ig. 8
Cabinet Case (Step 3.)
Remove both sides panels and remove 2 screws of arrow
mark 4 on both sides.
Fig.7
Step 6.
Circuit Boards
Tuner Remove 5 screws.
Control Take off the control knobs and remove 6
screws.
Power Remove screws of the speaker terminals
(A & B) and remove 6 screws.
Fig. 9
No. 7020
