MF-33L/ML

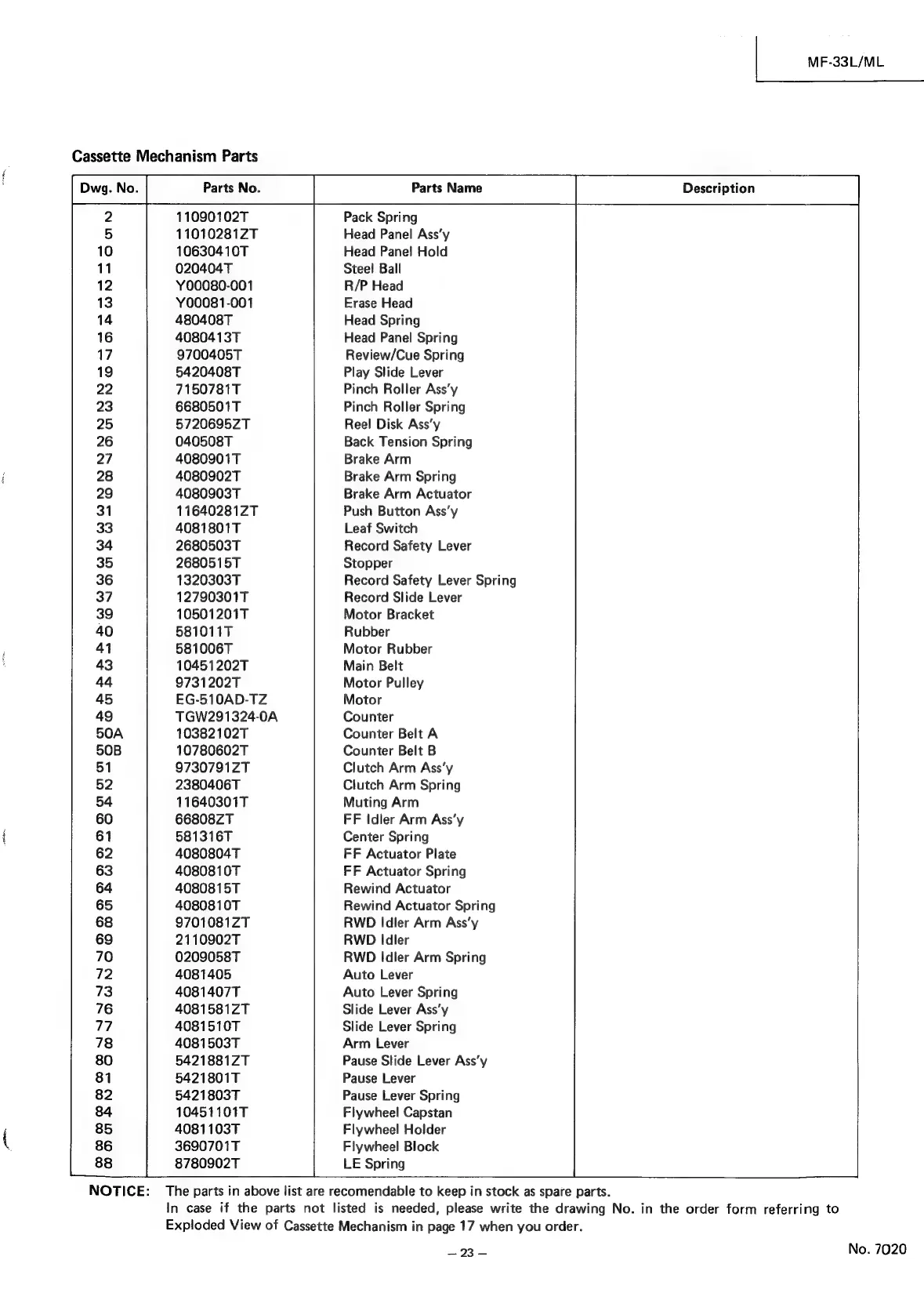

Cassette Mechanism Parts
a
11090102T Pack Spring
11010281ZT Head Panel Ass’y
10630410T Head Panel Hold
020404T Steel Ball
Y00080-001 R/P Head
Y00081-001 Erase Head
480408T Head Spring
4080413T Head Panel Spring
9700405T Review/Cue Spring
5420408T Play Slide Lever
7150781T Pinch Roller Ass’y
6680501T Pinch Roller Spring
5720695ZT Reel Disk Ass’y
040508T Back Tension Spring
4080901T Brake Arm
4080902T Brake Arm Spring
4080903T Brake Arm Actuator
116402812T Push Button Ass’y
4081801T Leaf Switch
2680503T Record Safety Lever
2680515T Stopper
1320303T Record Safety Lever Spring
12790301T Record Slide Lever
10501201T Motor Bracket
581011T Rubber
581006T Motor Rubber
10451202T Main Belt
9731202T Motor Pulley
EG-510AD-TZ Motor
TGW291324-0A Counter
10382102T Counter Belt A
10780602T Counter Belt B
97307912ZT Clutch Arm Ass’y
2380406T Clutch Arm Spring
11640301T Muting Arm
66808ZT FF Idler Arm Ass’y
581316T Center Spring
4080804T FF Actuator Plate
4080810T FF Actuator Spring
4080815T Rewind Actuator
4080810T Rewind Actuator Spring
9701081ZT RWD Idler Arm Ass’y
2110902T RWD Idler
0209058T RWD Idler Arm Spring
4081405 Auto Lever
4081407T Auto Lever Spring
40815812ZT Slide Lever Ass’y
4081510T Slide Lever Spring
4081503T Arm Lever
5421881ZT Pause Slide Lever Ass’y
5421801T Pause Lever
5421803T Pause Lever Spring
10451101T Flywheel Capstan
4081103T Flywheel Holder
3690701T Flywheel Block
8780902T LE Spring
NOTICE: The parts in above list are recomendable to keep in stock as spare parts.
In case if the parts not listed is needed, please write the drawing No. in the order form referring to
Exploded View of Cassette Mechanism in page 17 when you order.
— 23 — No. 7020
